Home / Products / YAG(Ce) / YAP(Ce) / YAG diameter 13x1mm both sides polished
YAG(Ce) & YAP(Ce) crystal

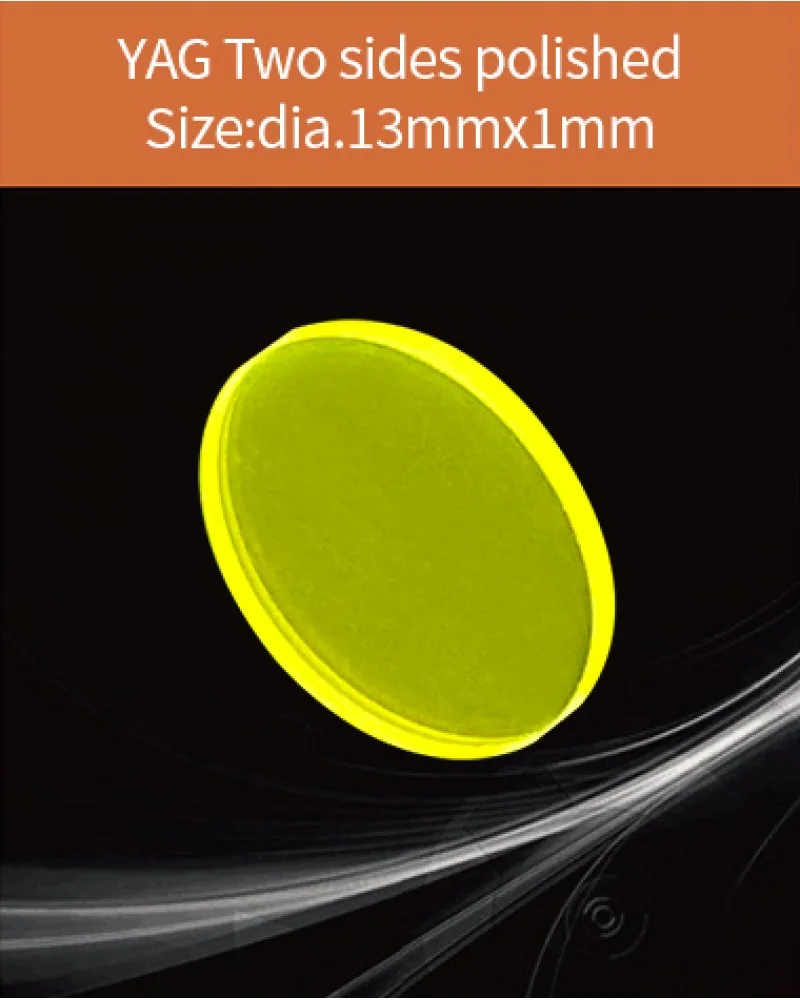

YAG diameter 13x1mm both sides polished
YAG Ce scintillator, YAG Ce crystal, Ce doped YAG scintillator, Scintillation YAG Ce, YAG Ce diameter 13x1mm both sides polished
$210.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | YAG diameter 13x1mm both sides polished |
|---|---|
| Dimension | diameter 13mm x 1 mm (thickness) |
| Polish | both sides polished |
| Tolerance | ±0.02 mm |
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $210.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: diameter 13mm x 1 mm (thickness)
- Polish: both sides polished
- Tolerance: ±0.02 mm
Features
- Relatively high light output
- Ce concentration 0.2 at%
- Maximum size: ø80 mm x 200 mm
- Available items: Monolithic YAG Ce and YAG:Ce screen
YAG Ce Scintillator Description
Yttrium aluminum garnet activated by cerium (YAG:Ce) is fast with excellent mechanical properties and is chemically resistant scintillator. Mechanical properties enable to produce YAG:Ce scintillation screens down to a thickness of 100 um, YAG:Ce detectors are excellent for electron microscopy, beta and X-ray counting, electron and X-ray imaging screens.
Customized YAG Ce Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related YAG(Ce) / YAP(Ce) Items
All 96 in YAG(Ce) / YAP(Ce)
YAG dia.20x0.1mm both sides polished$287.00
YAG dia.20x0.5mm both sides polished$271.00
diameter 50mm x 1mm$530.00
YAG dia.5x0.02mm both sides polished$310.00
YAG dia.5x0.06mm both sides polished$220.00
YAG dia.5x0.18 both sides polished$146.00
YAG diameter 75x1mm both sides polished$1,490.00
YAG dia.7x1mm both sides polished$170.00Questions About YAG diameter 13x1mm both sides polished
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is YAG diameter 13x1mm both sides polished?
YAG diameter 13x1mm both sides polished is a YAG(Ce) / YAP(Ce) scintillation crystal from Epic Crystal Company Limited, Dimension: diameter 13mm x 1 mm (thickness).
What is the listed price and minimum quantity?
The list price published for this item is $210.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order YAG diameter 13x1mm both sides polished?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
