Home / Products / Plastic / Plastic dia.3x30mm
Plastic scintillator

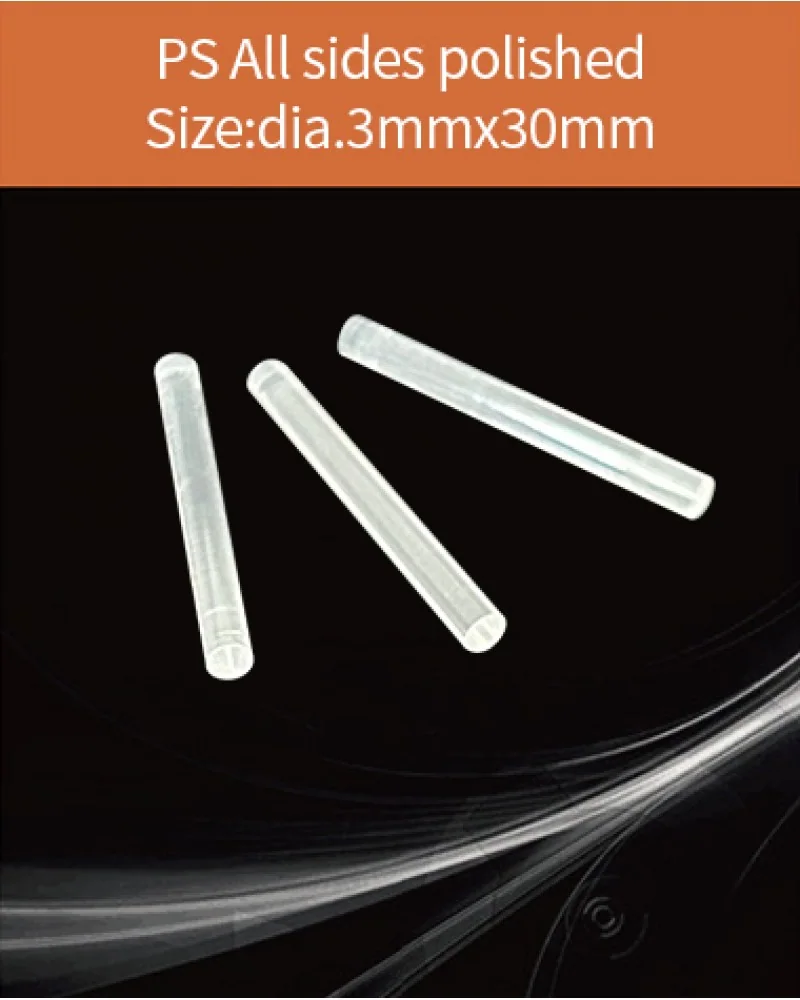

Plastic dia.3x30mm
Plastic scintillator material, equivalent Eljen EJ 200 or Saint gobain BC 408 scintillator, dia.3x30mm
$102.00
List price published by the factory; confirmed on quotation.
Item Details
| Dimension | dia.3x30mm |
|---|---|
| Polish | all sides polished |
| Tolerance | ±0.02 mm |
| List price | $102.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: dia.3x30mm
- Polish: all sides polished
- Tolerance: ±0.02 mm
Basic information
- Base material: Polystyrene
- Growth method: Polymeric
General properties
- Density(g.cm-3): 1.05
- Decay time(ns): 2.40
- Light output(%relatively of Anthracene): 64
- Soften temperature(K): 348
- Wavelength of emission peak(nm): 423
- H/C ratio: 1.10
- Refractive index: 1.58
- Hygroscopic: no
- Cleavage: no
Plastic Scintillator Description
Plastic scintillator is a special scintillation material, the main feature are its fast time response, low cost and large area possibility, it is very sensitive for alpha, Beta-rays and other particles with lower energy range.
Customized Plastic Scintillator
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related Plastic Items
All 84 in Plastic
Plastic dia.52x0.5mm$110.00
Plastic diameter 12x1mm$89.00
Plastic diameter 25x0.5mm$93.60
Plastic diameter 25x1mm$85.80
Plastic diameter 35x1mm$115.00
Plastic diameter 3x15mm$113.00
Plastic Plastic scintillator material, equivalent Eljen EJ 200 or Saint gobain$270.00
Plastic Diameter 50mm x 50mm All sides polished$145.00Questions About Plastic dia.3x30mm
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is Plastic dia.3x30mm?
Plastic dia.3x30mm is a Plastic scintillation crystal from Epic Crystal Company Limited, Dimension: dia.3x30mm.
What is the listed price and minimum quantity?
The list price published for this item is $102.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order Plastic dia.3x30mm?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote Plastic dia.3x30mm
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
