Home / Products / Plastic / Plastic 5x5x1 mm both sides polished
Plastic scintillator

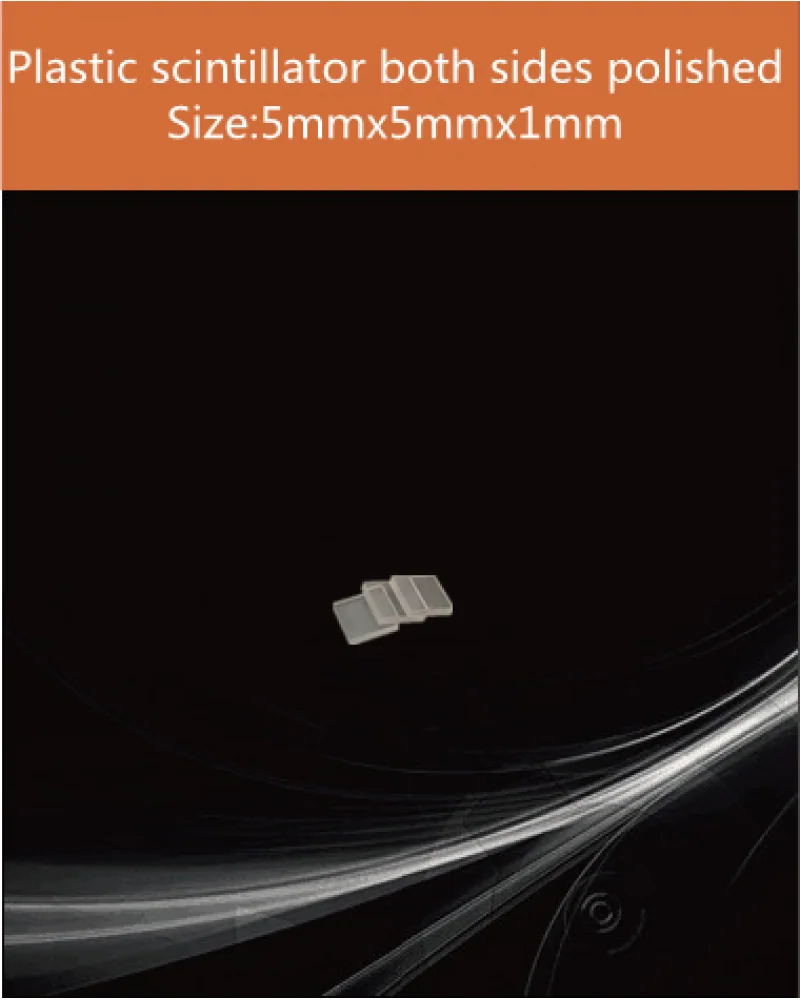

Plastic 5x5x1 mm both sides polished
Plastic scintillator material, equivalent Eljen EJ 200 or Saint gobain BC 408 scintillator, 5x5x1 mm both sides polished
$65.00
List price published by the factory; confirmed on quotation.
Item Details
| Dimension | 5 mm (length) x 5 mm (width) x 1 mm (thickness) |
|---|---|
| Polish | both sides polished |
| Tolerance | ±0.02 mm |
| Minimum quantity | 3 pcs |
| List price | $65.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: 5 mm (length) x 5 mm (width) x 1 mm (thickness)
- Polish: both sides polished
- Tolerance: ±0.02 mm
Basic information
- Base material: Polystyrene
- Growth method: Polymeric
General properties
- Density(g.cm-3): 1.05
- Decay time(ns): 2.40
- Light output(%relatively of Anthracene): 50-60
- Soften temperature(K): 348
- Wavelength of emission peak(nm): 415
- H/C ratio: 1.10
- Refractive index: 1.58
- Hygroscopic: no
- Cleavage: no
Plastic Scintillator Description
Plastic scintillator is a special scintillation material, the main feature are its fast time response, low cost and large area possibility, it is very sensitive for alpha, Beta-rays and other particles with lower energy range.
Customized Plastic Scintillator
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related Plastic Items
All 84 in Plastic
Plastic Plastic scintillator material, equivalent Eljen EJ 200 or Saint gobain$97.50
Plastic Plastic scintillator material, equivalent Eljen EJ 200 or Saint gobain$105.00
Plastic Plastic scintillator material, equivalent Eljen EJ 200 or Saint gobain$105.00
Plastic 10x10x1mm$54.00
Plastic 23x0.25mm$130.00
Plastic 3x3x15mm$60.00
Plastic 3x3x50mm$117.00
Plastic 50x60x0.5mm$189.00Questions About Plastic 5x5x1 mm both sides polished
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is Plastic 5x5x1 mm both sides polished?
Plastic 5x5x1 mm both sides polished is a Plastic scintillation crystal from Epic Crystal Company Limited, Dimension: 5 mm (length) x 5 mm (width) x 1 mm (thickness).
What is the listed price and minimum quantity?
The list price published for this item is $65.00. Minimum order is 3 pieces. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order Plastic 5x5x1 mm both sides polished?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote Plastic 5x5x1 mm both sides polished
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
