NaI(Tl) crystal and detector
NaI TI 20x20x20mm

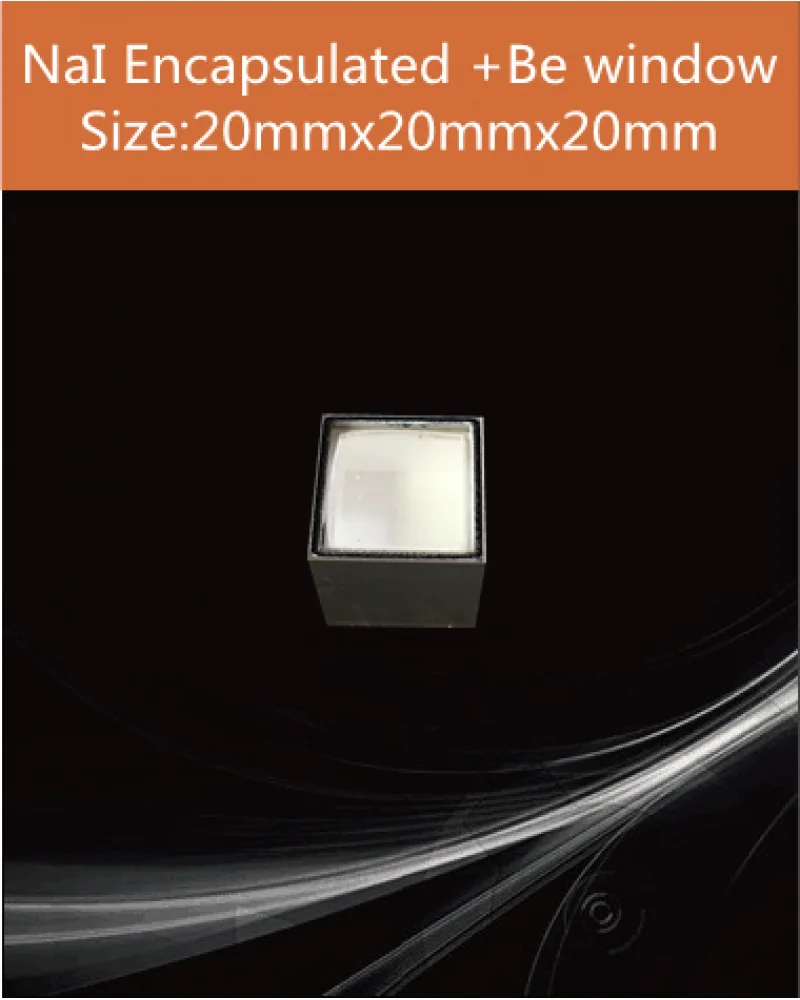

NaI Tl Scintillation Crystal, NaI Tl Scintillator, Thallium Doped Sodium Iodide Scintillation Crystal, 20x20x20mm Teflon reflector with Be window
$900.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | NaI TI 20x20x20mm |
|---|---|
| Crystal dimension | 20x20x20mm |
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $900.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Crystal dimension: 20x20x20mm
- Encapsulated with aluminum housing and Be window
Features
- High light output
- No significant self absorption of scintillation light
- Available in single crystal & polycrystalline form
- Emission spectrum well matched with the sensitivity curve of photomultiplier tubes (PMTs)
Main Applications
- Nuclear medicine
- Environmental monitoringell
- Nuclear physics
- Well logging and nuclear radiation monitoring
- Isotopes identification
- Geological exploration
NaI Tl Scintillator Description
Thallium doped Sodium Iodide is the most widely used scintillation material. NaI(Tl) is used traditionally in nuclear medicine, environmental monitoring , nuclear physics, aerial survey, well logging and many other applications. The greatest light output among scintillators, convenient emission range coincident with maximum efficiency region of photomultiplier(PMT) with bialkali photocathodes, the possibility of large-size crystals production, and their low prices compared with other scintillation materials compensate to a great extent for the main disadvantage of NaI(Tl), namely, the hygroscopicity, on account of which NaI(Tl) can be used only in hermetically sealed assemblies.
Customized NaI Tl Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
NaI scintillator
Density [g/cm3]
3.67
Hardness [Mho]
2
Cleavage plane
100
Melting point [K]
924
Wavelength of emission max [nm]
415
Refractive index @ emission max
1.85
Light yield [Photons/MeVĪ³]
38,000
Thermal expansion coefficient [C-1]
47.7 x 10-6
Decay time [ns]
250
Temperature coefficient of light yield
-3%C-1
Hygroscopicity
