Home / Products / LuAG / LuAG(Ce) scintillator dia.15x0.15mm
LuAG scintillation crystal

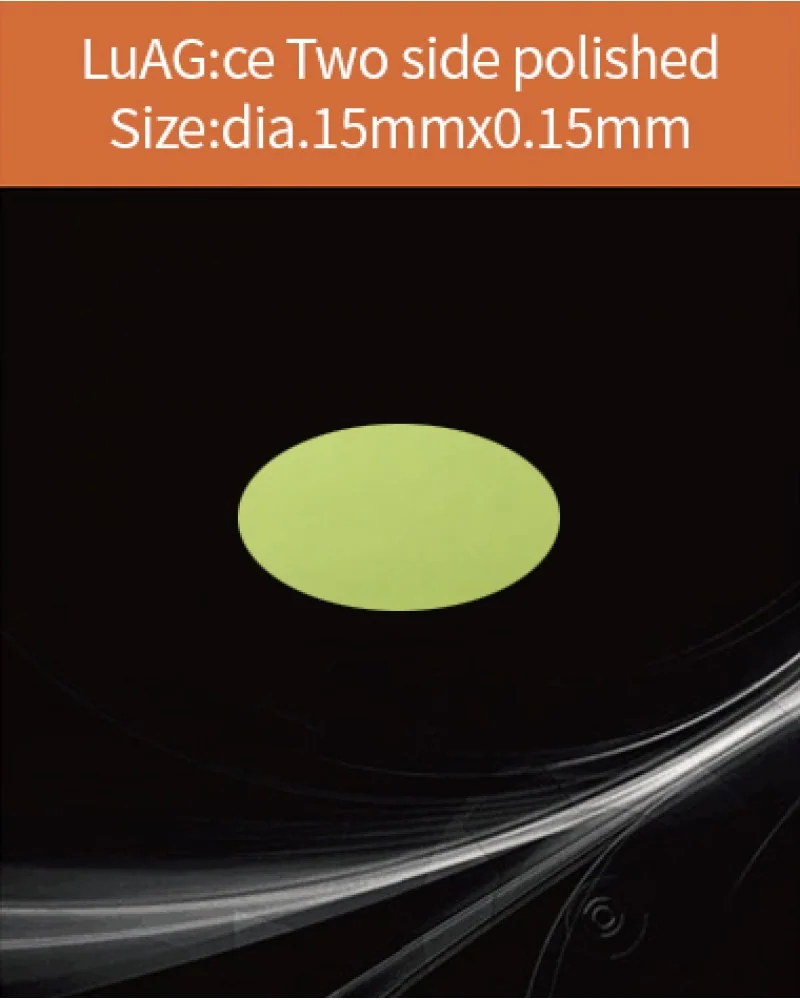

LuAG(Ce) scintillator dia.15x0.15mm
LuAG(Ce) crystal,Cerium doped Lutetium Acid Garnet scintillator,LuAG(Ce) Cerium doped Lutetium Acid Garnet scintillation crystal material,dia.15x0.15mm
$389.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | LuAG(Ce) scintillator dia.15x0.15mm |
|---|---|
| Dimension | diameter 15mm x 0.15mm |
| Polish | both sides polished |
| Tolerance | ±0.02 mm |
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $389.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: diameter 15mm x 0.15mm
- Polish: both sides polished
- Tolerance: ±0.02 mm
Features
- Good energy resolution
- High light output
- High density
- No self radiation
- No hygroscopic
Main Applications
- X-ray microscopy
- Micro-nano CT
LuAG Ce Scintillator Description
LuAG Ce scintillation crystal has good energy resolution, high light output, high density, no self radiation, no hygroscopic. LuAG Ce scintillator is a ideal material for X-ray microscopy and micro-nano CT.
Customized LuAG Ce Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related LuAG Items
All 39 in LuAG
LuAG(Ce) scintillator dia.20x0.2mm$310.00
LuAG(Ce) scintillator dia.5x0.05mm$270.00
LuAG(Ce) scintillator dia.7x1mm$180.00
LuAG(Ce) scintillator diameter 13x1mm$280.00
LuAG(Ce) scintillator diameter 30x0.1mm$460.00
LuAG(Ce) scintillator diameter 30x0.2mm$440.00
LuAG(Ce) scintillator dia.4x30mm$310.00
LuAG(Ce) scintillator diameter 50x0.1mm$930.00Questions About LuAG(Ce) scintillator dia.15x0.15mm
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is LuAG(Ce) scintillator dia.15x0.15mm?
LuAG(Ce) scintillator dia.15x0.15mm is a LuAG scintillation crystal from Epic Crystal Company Limited, Dimension: diameter 15mm x 0.15mm.
What is the listed price and minimum quantity?
The list price published for this item is $389.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order LuAG(Ce) scintillator dia.15x0.15mm?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote LuAG(Ce) scintillator dia.15x0.15mm
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
