Home / Products / GAGG(Ce) / GAGG-Scintillator-diameter 50.8x5mm
GAGG(Ce) scintillation crystal

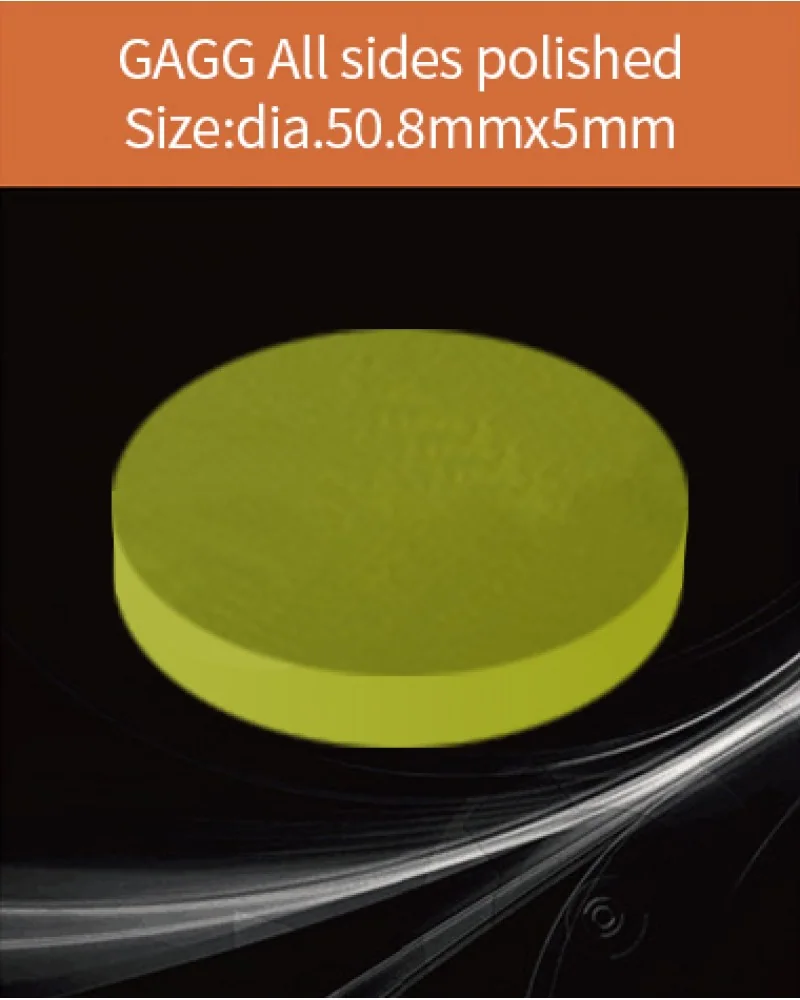

GAGG-Scintillator-diameter 50.8x5mm
GAGG Ce scintillation crystal, GAGG Ce crystal, GAGG scintillator, Ce:Gd3Al2Ga3O12 crystal, diameter 50.8x5mm
$1,760.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | GAGG-Scintillator-diameter 50.8x5mm |
|---|---|
| Dimension | diameter 50.8 mm x 5 mm (height) |
| Polish | all sides polished |
| Tolerance | ±0.02 mm |
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $1,760.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: diameter 50.8 mm x 5 mm (height)
- Polish: all sides polished
- Tolerance: ±0.02 mm
Features
- Good energy resolution
- High light output
- High density
- No self radiation
- No hygroscopic
Main Applications
- SPECT
- TOF-PET
- Environmental radiation detection
- Compton camera
GAGG Ce Scintillator Description
GAGG Ce scintillation crystal has good energy resolution, high light output, high density, no self radiation, no hygroscopic. GAGG Ce scintillator is a ideal material for SPECT, TOF-PET and Gamma ray detection.
Customized GAGG Ce Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related GAGG(Ce) Items
All 179 in GAGG(Ce)
Questions About GAGG-Scintillator-diameter 50.8x5mm
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is GAGG-Scintillator-diameter 50.8x5mm?
GAGG-Scintillator-diameter 50.8x5mm is a GAGG(Ce) scintillation crystal from Epic Crystal Company Limited, Dimension: diameter 50.8 mm x 5 mm (height).
What is the listed price and minimum quantity?
The list price published for this item is $1,760.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order GAGG-Scintillator-diameter 50.8x5mm?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote GAGG-Scintillator-diameter 50.8x5mm
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
