diameter 30 mm x 24 mm

Specification

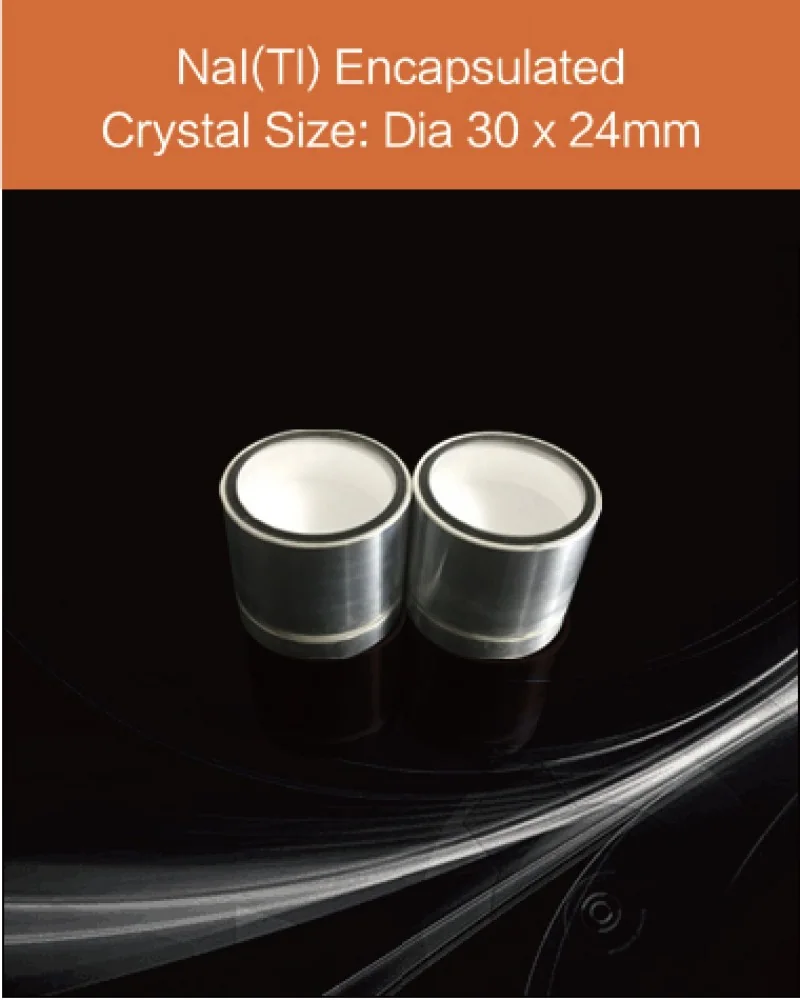

• Crystal dimension: diameter 30 mm x 24 mm
• Shell dimension: diameter 35 mm x 31 mm
• Encapsulated with aluminum housing and optical window

Features

• High light output
• No significant self absorption of scintillation light
• Available in single crystal & polycrystalline form
• Emission spectrum well matched with the sensitivity curve of photomultiplier tubes (PMTs)

Main Applications

• Nuclear medicine
• Environmental monitoringell
• Nuclear physics
• Well logging and nuclear radiation monitoring
• Isotopes identification
• Geological exploration

NaI Tl Scintillator Description

Thallium doped Sodium Iodide is the most widely used scintillation material. NaI(Tl) is used traditionally in nuclear medicine, environmental monitoring , nuclear physics, aerial survey, well logging and many other applications. The greatest light output among scintillators, convenient emission range coincident with maximum efficiency region of photomultiplier(PMT) with bialkali photocathodes, the possibility of large-size crystals production, and their low prices compared with other scintillation materials compensate to a great extent for the main disadvantage of NaI(Tl), namely, the hygroscopicity, on account of which NaI(Tl) can be used only in hermetically sealed assemblies.

Customized NaI Tl Scintillation Crystal

Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
