Home / Products / CaF2(Eu) / BaF2 / 3x3x30mm all sides polished
CaF2(Eu), BaF2 and Y-BaF2 scintillation crystals

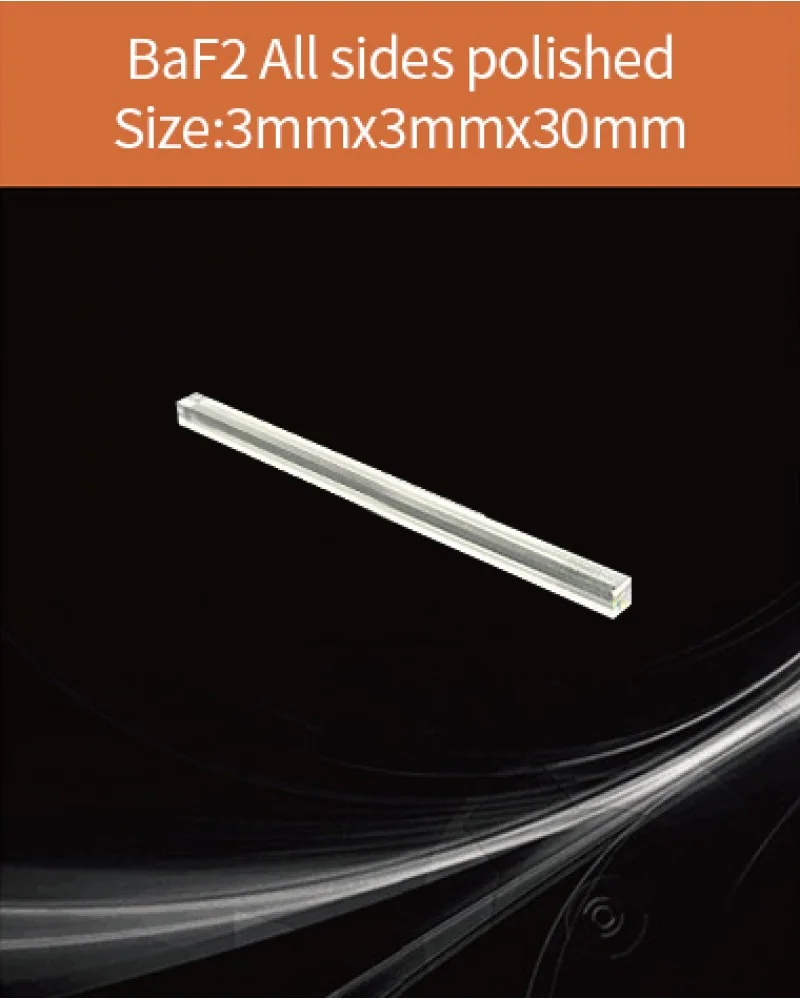

3x3x30mm all sides polished
BaF2 crystal, Barium Fluoride scintillator, BaF2 Barium Fluoride Scintillation crystal Material ,3x3x30mm
$330.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | 3x3x30mm all sides polished |
|---|---|
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $330.00 |
| Made in | Kunshan, Jiangsu, China |
BaF2 Crystal Specification
- Dimension: 3x3x30mm
- Polish: all sides polished
- Tolerance: ±0.1 mm
BaF2 Crystal Features
- Relatively high light output
- High shock resistance
- Inert
- Maximum size: ø60 mm x 120 mm
- Available items: Monolithic BaF2, BaF2 Screen
BaF2 Crystal Main Applications
- P-Detector
- Radioactivity medical science diagnoses
BaF2 Crystal Description
Barium fluoride ( BaF2 ) is light scintillators which are used for detection of charged particles and soft gamma ray up to several hundreds keV. BaF2 crystal is typically used for detection of beta rays due to its relatively small back scattering. It is not suitable for detection of high-energy gamma ray because has a small photo fraction. It is non hygroscopic and is relatively chemically inert.
Customized BaF2 Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related CaF2(Eu) / BaF2 Items
All 45 in CaF2(Eu) / BaF2
CaF2(Eu) / BaF2 3X3X3mm$105.00
4x4x25mm all sides polished$420.00
4x4x4mm all sides polished$220.00
5x5x1mm both sides polished$160.00
diameter 18x0.1mm both sides polished$320.00
diameter 20x50mmall sides polished$280.00
diameter 50x0.3mm both sides polished$1,180.00
diameter 50x1mm both sides polished$1,060.00Questions About 3x3x30mm all sides polished
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is 3x3x30mm all sides polished?
3x3x30mm all sides polished is a CaF2(Eu) / BaF2 scintillation crystal from Epic Crystal Company Limited.
What is the listed price and minimum quantity?
The list price published for this item is $330.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order 3x3x30mm all sides polished?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote 3x3x30mm all sides polished
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
