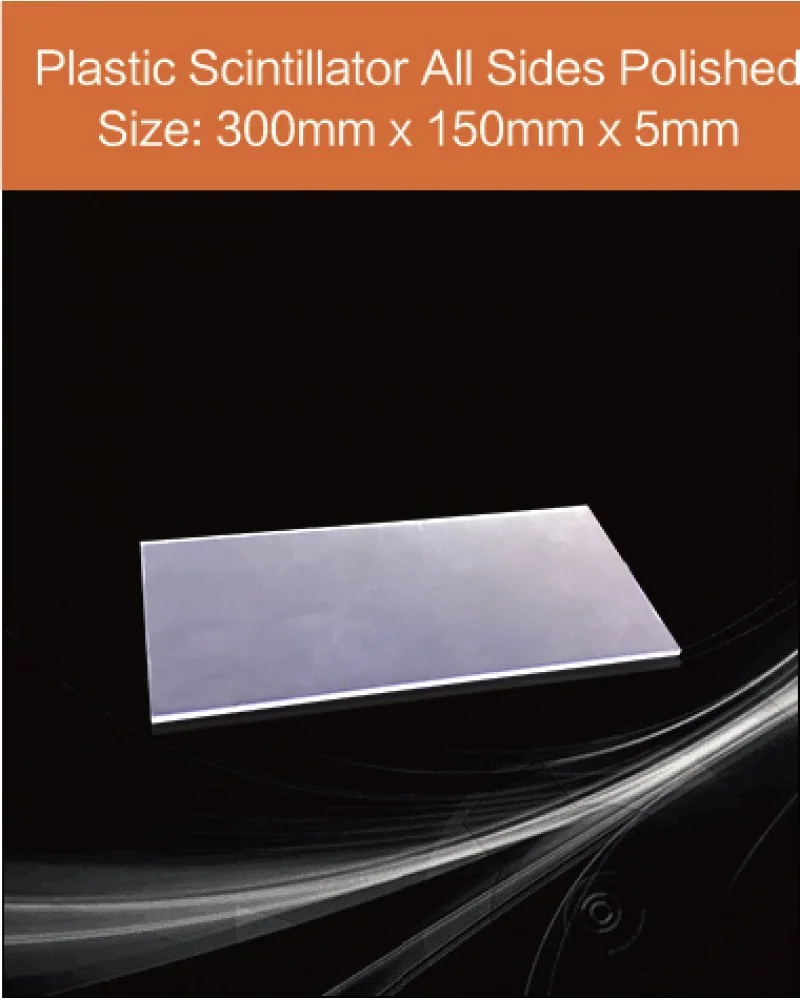

Plastic scintillator
300mm x 150mm x 5mm all sides polished
Plastic scintillator, equivalent BC 408 or EJ 200, Plastic scintillator material 300mm x 150mm x 5mm all sides polished
$369.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | 300mm x 150mm x 5mm all sides polished |
|---|---|
| Dimension | 300 mm (length) x 150 mm (width) x 5 mm (thickness) |
| Polish | all sides polished |
| Tolerance | ±0.02 mm |
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $369.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: 300 mm (length) x 150 mm (width) x 5 mm (thickness)
- Polish: all sides polished
- Tolerance: ±0.02 mm
Basic information
- Base material: Polystyrene
- Growth method: Polymeric
General properties
- Density(g.cm-3): 1.05
- Decay time(ns): 2.40
- Light output(%relatively of Anthracene): 50-60
- Soften temperature(K): 348
- Wavelength of emission peak(nm): 415
- H/C ratio: 1.10
- Refractive index: 1.58
- Hygroscopic: no
- Cleavage: no
Plastic Scintillator Description
Plastic scintillator is a special scintillation material, the main feature are its fast time response, low cost and large area possibility, it is very sensitive for alpha, Beta-rays and other particles with lower energy range.
Customized Plastic Scintillator
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related Plastic Items
All 84 in Plastic
Questions About 300mm x 150mm x 5mm all sides polished
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is 300mm x 150mm x 5mm all sides polished?
300mm x 150mm x 5mm all sides polished is a Plastic scintillation crystal from Epic Crystal Company Limited, Dimension: 300 mm (length) x 150 mm (width) x 5 mm (thickness).
What is the listed price and minimum quantity?
The list price published for this item is $369.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order 300mm x 150mm x 5mm all sides polished?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote 300mm x 150mm x 5mm all sides polished
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
