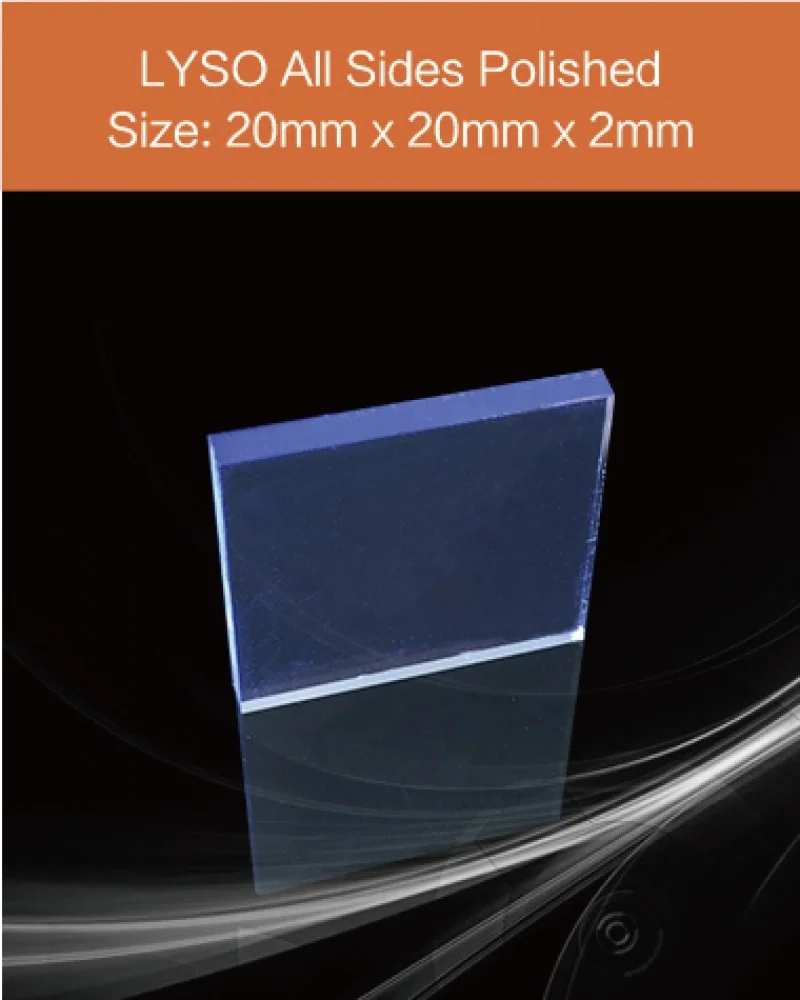

LYSO(Ce) scintillation crystal
20 x 20 x 2 mm all sides polished
LYSO Ce scintilltion crystal, Cerium doped Lutetium Yttrium Silicate scintillation crystal, LYSO Ce scintillator crystal,20 x 20 x 2mm
$120.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | 20 x 20 x 2 mm all sides polished |
|---|---|
| Dimension | 20 mm (length) x 20 mm (width) x 2 mm (thickness) |
| Polish | all sides polished |
| Tolerance | ±0.02 mm |
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $120.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: 20 mm (length) x 20 mm (width) x 2 mm (thickness)
- Polish: all sides polished
- Tolerance: ±0.02 mm
Features
- High light output
- Short decay time
- High density and anti-radiation hardness
- Stable chemical and physical properties
- Maximum size: ø90 mm x 200 mm
- Available items: Monolithic and pixelated LYSO
Main Applications
- Positron emission tomography (PET)
- Medically XCT
- High-energy physics
- Nuclear medicine
- Nuclear radiation scanner
- Geological prospecting
- Radiation detector
- Radiation Monitoring Systems
- Gamma pulse spectroscopy
LYSO Scintillator Description
Cerium doped Lutetium Yttrium Silicate scintillation crystal (LYSO Ce scintillator) is an ideal generation scintillator crystal. LYSO scintillator has the advantages of high light output and density, quick decay time, excellent energy resolution. These properties make LYSO an ideal candidate for a range of ray detection applications in nuclear physics and nuclear medicine, which require higher, improved timing resolution and superior energy revolution.
Customized LYSO Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
LYSO Scintillator
Density [g./cm3]
7.2
Decay time [ns]
40
Wavelength of emission max. [nm]
420
Light output [Photons/MeVγ]
30,000
Melting Point (°C)
2150
Hardness [Mho]
5.8
Refractive Index of emission max
1.82
Photoelectron yield [% of NaI(Tl)] (for γ-rays)
75
Hygroscopic
none
Cleavage plane
none
Energy resolution [%]
10
Average temperature coefficient from 25 to 50° C [%/° C]
-0.28
Related LYSO(Ce) Items
All 183 in LYSO(Ce)
3 x 3 x 10 mm all sides polished$39.00
3 x 3 x 15 mm all sides polished$45.00
3 x 3 x 1 mm all sides polished$27.00
30 x 30 x 1 mm two sides polished$130.00
3x3x50 mm all sides polished$117.00
4 x 4 x 20 mm all sides polished$65.00
5 x 5 x 0.5 mm two sides polished$37.50
5 x 5 x 5mm all sides polished$60.00Questions About 20 x 20 x 2 mm all sides polished
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is 20 x 20 x 2 mm all sides polished?
20 x 20 x 2 mm all sides polished is a LYSO(Ce) scintillation crystal from Epic Crystal Company Limited, Dimension: 20 mm (length) x 20 mm (width) x 2 mm (thickness).
What is the listed price and minimum quantity?
The list price published for this item is $120.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order 20 x 20 x 2 mm all sides polished?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote 20 x 20 x 2 mm all sides polished
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
