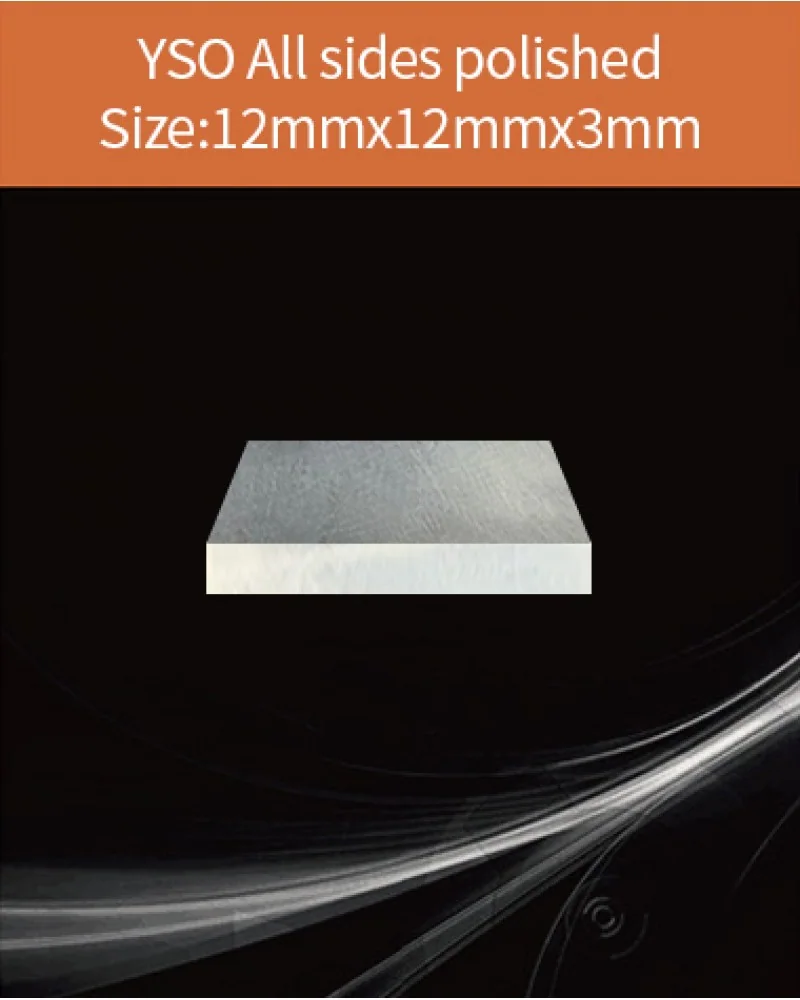

YSO(Ce) scintillation crystal
12x12x3 mm all sides polished
YSO Ce scintillation crystal, Cerium doped Silicate Yttrium scintillation crystal, YSO Ce scintillator, YSO Ce crystal, 12x12x3mm
$110.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | 12x12x3 mm all sides polished |
|---|---|
| Dimension | 12 mm (length) x 12 mm (width) x 3 mm (thickness) |
| Polish | all sides polished |
| Tolerance | ±0.02 mm |
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $110.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: 12 mm (length) x 12 mm (width) x 3 mm (thickness)
- Polish: all sides polished
- Tolerance: ±0.02 mm
Features
- High light output
- Relatively short decay time
- High density and anti-radiation hardness
- Stable chemical and physical properties
Main Applications
- Radiation detection
- Security industry
- Semiconductor
- Photo optic applications
YSO Scintillator Description
Cerium doped Silicate Yttrium scintillation crystal (YSO ce scintillator) belongs to monoclinic rare earth orthosilicate crystal, YSO Scintillation Crystal emits 420 nm light and couples well with PMT under the stimulation of high energy. It also has the advantage of high light yield, short decay time, and high density, non-deliquescence, and all around stable physical and chemical properties.
Customized YSO Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
YSO Scintillator
Density [g.cm-3]
4.5
Decay constant [ns]
50-70
Wavelength of emission max [nm]
420
Light output [Photons/MeVγ]
25,000
Melting point [K]
2273
Refractive Index of emission max
1.8
Hygroscopicity
none
Cleavage
none
Related YSO(Ce) Items
All 38 in YSO(Ce)
Questions About 12x12x3 mm all sides polished
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is 12x12x3 mm all sides polished?
12x12x3 mm all sides polished is a YSO(Ce) scintillation crystal from Epic Crystal Company Limited, Dimension: 12 mm (length) x 12 mm (width) x 3 mm (thickness).
What is the listed price and minimum quantity?
The list price published for this item is $110.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order 12x12x3 mm all sides polished?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote 12x12x3 mm all sides polished
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
