Home / Products / LYSO(Ce) / 1.5x1.5x1.5mm four sides polished
LYSO(Ce) scintillation crystal

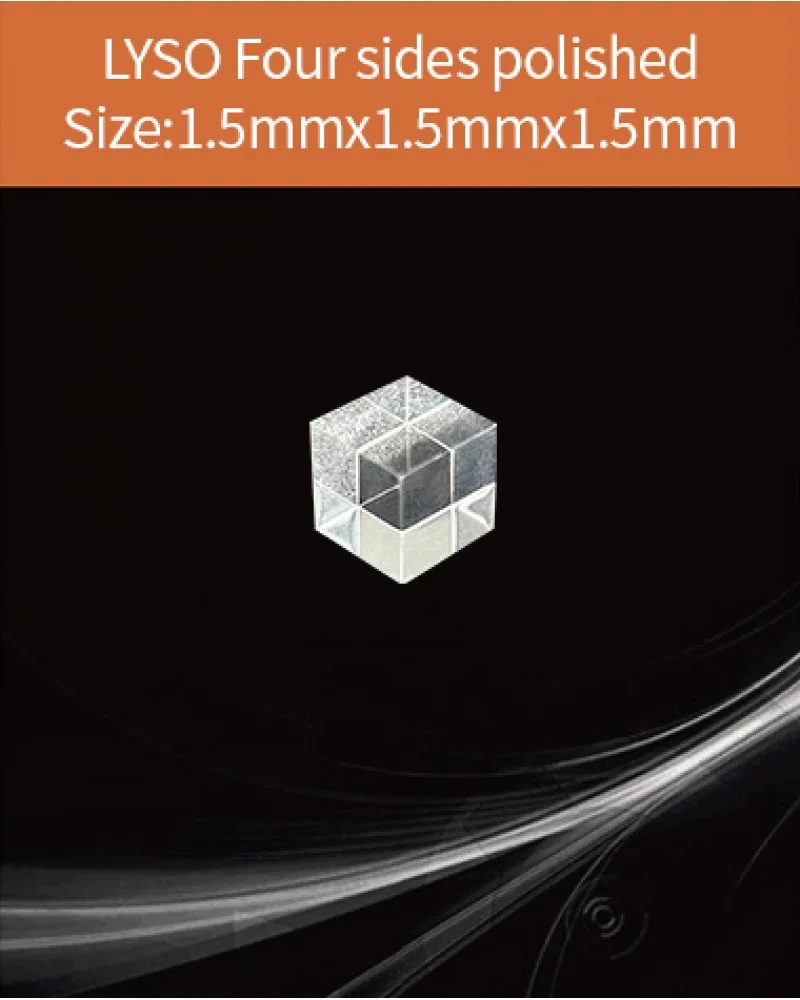

1.5x1.5x1.5mm four sides polished
LYSO Ce scintilltion crystal, Cerium doped Lutetium Yttrium Silicate scintillation crystal, LYSO Ce scintillator crystal, 1.5x1.5x1.5mm
$30.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | 1.5x1.5x1.5mm four sides polished |
|---|---|
| Dimension | 1.5 mm (length) x 1.5 mm (width) x 1.5 mm (thickness) |
| Polish | four sides polished |
| Tolerance | ±0.02 mm |
| Brand | EPIC Crystal |
| Availability | In Stock |
| Minimum quantity | 5 pcs |
| List price | $30.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: 1.5 mm (length) x 1.5 mm (width) x 1.5 mm (thickness)
- Polish: four sides polished
- Tolerance: ±0.02 mm
Features
- High light output
- Short decay time
- High density and anti-radiation hardness
- Stable chemical and physical properties
Main Applications
- Positron emission tomography (PET)
- Medically XCT
- High-energy physics
- Nuclear medicine
- Nuclear radiation scanner
- Geological prospecting
- Radiation detector
- Radiation Monitoring Systems
- Gamma pulse spectroscopy
LYSO Scintillator Description
Cerium doped Lutetium Yttrium Silicate scintillation crystal (LYSO Ce scintillator) is an ideal generation scintillator crystal. LYSO scintillator has the advantages of high light output and density, quick decay time, excellent energy resolution. These properties make LYSO an ideal candidate for a range of ray detection applications in nuclear physics and nuclear medicine, which require higher, improved timing resolution and superior energy revolution.
Customized LYSO Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related LYSO(Ce) Items
All 183 in LYSO(Ce)
1.5x1.5x15mm both sides polished$48.00
1.5x1.5x20mm all sides polished$52.50
1.5 x 1.5 x 3.5 mm all sides polished$30.00
1.5x3x20mm all sides polished$63.00
1.5x3x40mm all sides polished$81.90
1.5x3x60mm all sides polished$108.00
10x10x0.03mm mm all sides polished,optical polishing quality$390.00
10x10x0.05mm mm all sides polished,optical polishing quality$360.00Questions About 1.5x1.5x1.5mm four sides polished
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is 1.5x1.5x1.5mm four sides polished?
1.5x1.5x1.5mm four sides polished is a LYSO(Ce) scintillation crystal from Epic Crystal Company Limited, Dimension: 1.5 mm (length) x 1.5 mm (width) x 1.5 mm (thickness).
What is the listed price and minimum quantity?
The list price published for this item is $30.00. Minimum order is 5 pieces. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order 1.5x1.5x1.5mm four sides polished?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote 1.5x1.5x1.5mm four sides polished
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
