HDMI to VGA+Ypbpr Converter
Made by Shenzhen Easyconnect Electronic Co., Ltd. in Shenzhen. Tell us the resolution and the transmission distance and we will confirm this is the right model before you order.
- Line
- HDMI Converter
- Category
- HDMI Devices
- Manufacturer
- Easyconnect, Shenzhen China
- Certification
- CE, FCC and RoHS
Specification
Specification:
Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p
- Input
- DDC
- signal
- 5Volts
- p-p (
- TTL
- VGA or
- YPbPr
- output………………………………….Support up to
- UXGA
- and
- 1080I
- (
- 60Hz
- Audio output….……………………………………………………………R/L Analog and optical
- Max transmission bandwidth…….………………….……………………………………5.1Gbps
- Max working current………………………………………………………………………...600mA
- Power adapter format………………..Input:AC (
- 50HZ
- 60HZ
- 100V-240V
Output:
- DC5V
- 1A
Operating Temperature range……..…………….………………………………… (-15 to +55 Centigrade)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
- Demension
- (
- LxWxH
- 178x65x27(mm)
- Weight………………………….….……….380g
Features:
- 1. One
- HDMI
- input signal convert to one
- YPbPr
- SPDIF
- or VGA+
- SPDIF
- sink device
2. Support audio output:
- SPDIF
(Optical)+ R/L analog .
- 3. Support output : Support up to
- UXGA
- and
- 1080I
- (50/
- 60Hz
- the same format as input
4. LED indication: when source or sink is working, LED relative to is light.
- 5. No loss of quality
- 6. Need
- DC5V
- 1A
power supply.

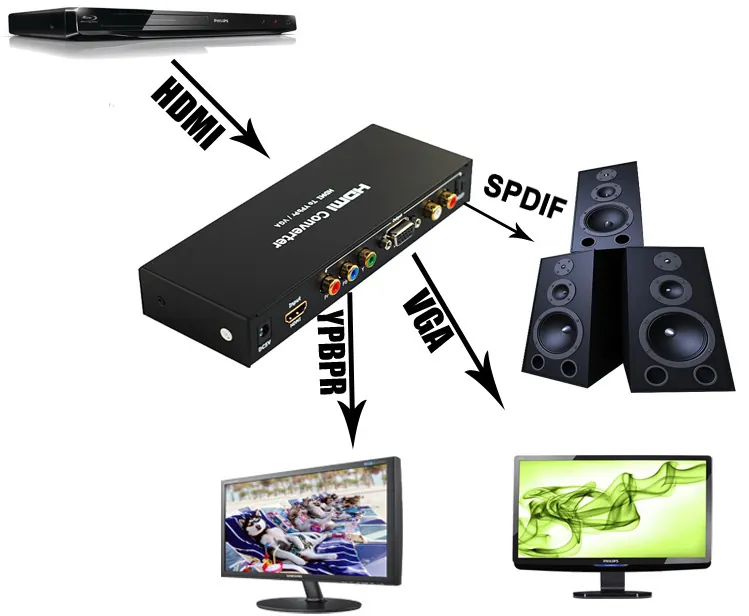

- Sketch map
Questions about this model
How do I get a price for the HDMI to VGA+Ypbpr Converter
Email [email protected] with the model and the quantity, and tell us the resolution and the distance the signal has to travel.
Is this model CE and FCC certified
Certificates are held per product line. Tell us the destination market and we will send the ones that apply to this model.
Can this be supplied under our own brand
Yes. Housing, branding and functions can be adapted for OEM and ODM projects.
Ask about the HDMI to VGA+Ypbpr Converter
Model, quantity, resolution and distance is all we need.
