VGA+Yprpb to HDMI Converter
Made by Shenzhen Easyconnect Electronic Co., Ltd. in Shenzhen. Tell us the resolution and the transmission distance and we will confirm this is the right model before you order.
- Line
- HDMI Converter
- Category
- HDMI Devices
- Manufacturer
- Easyconnect, Shenzhen China
- Certification
- CE, FCC and RoHS
Specification
Specification:
- Support
- input………………………………………………………………………………RGB
- Support VGA input ………..….…800×
- 600@60HZ
- 1024×
- 768@60HZ
- 1280×
- 1024@60HZ
Support resolution up to…………………………………………………………..……..1250lines
- Max refresh rate…………………………………………………………………...…………..75HZ
Input Video signal ………….…………………………..………………………..0.5~2.0Volts p-p
Output video signal…………………………………………………………….-0.35~0.7Volts p-p
- Max working current………………………………………………………………………...800mA
- Output cable distance…………………………….…….....<=
- 20m
- AWG26
- HDMI
- standard cable
- Power adapter format……………......Input:AC (
- 50HZ
- 60HZ
- 100V-240V
Output:
- DC5V
- 2A
Operating Temperature range……..…………….………………………………… (-15 to +55 Centigrade)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
- Demension
- (
- LxWxH
- 178x65x27 (mm)
- Weight………………………….….……….390g
Features:
- 1. One
- YPbPr
input.
2. One VGA input.
3. R/L analog audio input.(can’t be used with stereo Mini-Jack audio at the same time).
4. 3.5mm Stereo Mini-Jack audio input.(can’t be used with R/L audio input at the same time).
- 5. One
- HDMI
signal output.
- 6. Support input up to
- 1080P
via component.
- 7. Support VGA input : VGA@60,VGA@75,
- XGA@60HZ
- XGA@75
- SXGA@60HZ
- SXGA@75HZ
- SVGA@60
- SVGA@75
- 1280X768@60
8.
- HDMI
output resolution:
- 720P
- 60Hz
9. Adaptive PAL / NTSC standard.
10. LED indication : when source or sink is working, LED relative to is light.
- 11. Inputs can be switched with the
- IR
remote control,also can be controlled by button.
- 12. Support output up to
- 20metres
- AWG26
- cable length
- 13. Need
- DC5V
- 2A
power supply.

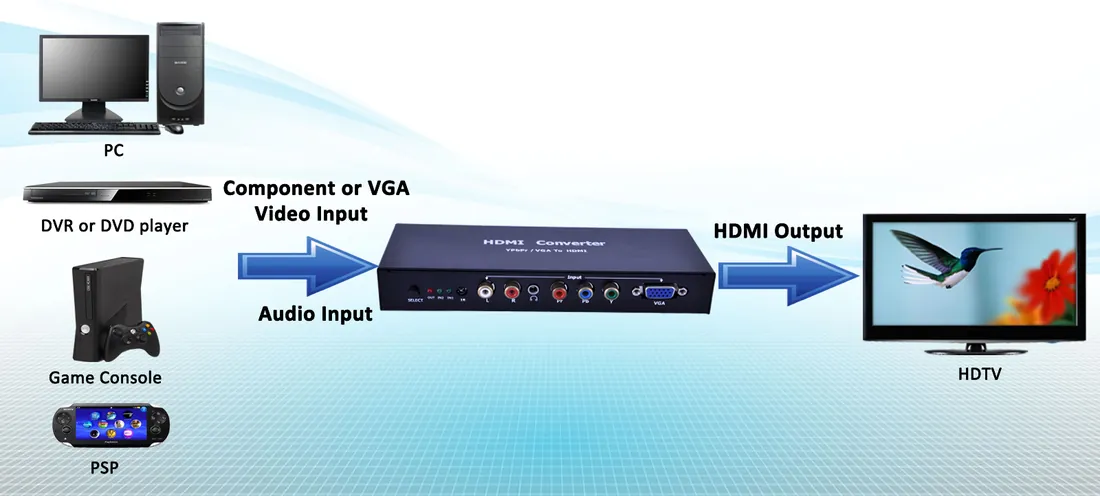

- Sketch map
Questions about this model
How do I get a price for the VGA+Yprpb to HDMI Converter
Email [email protected] with the model and the quantity, and tell us the resolution and the distance the signal has to travel.
Is this model CE and FCC certified
Certificates are held per product line. Tell us the destination market and we will send the ones that apply to this model.
Can this be supplied under our own brand
Yes. Housing, branding and functions can be adapted for OEM and ODM projects.
Ask about the VGA+Yprpb to HDMI Converter
Model, quantity, resolution and distance is all we need.
