HDMI Matrix 8x8
Made by Shenzhen Easyconnect Electronic Co., Ltd. in Shenzhen. Tell us the resolution and the transmission distance and we will confirm this is the right model before you order.
- Line
- HDMI Matrix
- Category
- HDMI Devices
- Manufacturer
- Easyconnect, Shenzhen China
- Certification
- CE, FCC and RoHS
Specification
Specifications:
- HDMI
- resolution……………………....24/50/
- 60fs
- 1080p
- 1080i
- 720p
- 576p
- 576i
- 480p
- 480i
Support audio color format …………………………..…………. …............................12bit
- Support audio format……………DTS-HD/
- Dolby-trueHD
- LPCM7.1/DTS/
- Dolby-AC3
- DSD
- Max baud rate…….…………….…………………………………………. ……..2.25Gbps
- Input and output
- TMDS
- signal………….…………………………..…… 0.5~1.5Volts p-p
- Input and output
- DDC
- signal……………………………………………..5Volts p-p (
- TTL
- Input cable distance.……………………….……………….………….≤15m
- HDMI
- AWG26
- Output cable distance…………………………….…...≤20m
- AWG26
- HDMI
- standard cable
- Max working current………………………………………………………………………2.0A
- Power adapter format Input………input:AC(
- 50HZ
- 60HZ
- 100V-240V
output:
- DC12V
- 5A
- Operating Temperature range……..…………….…………………………… (-15 to +
- 55℃
Working humidity range………………………….….………5 to 90%RH (No Condensation)
- Dimension (L x W x H)……………………………….……………………435*184*16 (mm)
- Weight…..………………………………………………………..…………….………..1944g
Features:
- Eight
- HDMI
signals input to be independently distributed or switched to eight displays which support
- HDMI
- signal input
- Support
- HDMI
- 1.3 and HDCP1.4
- Support CEC
- Support true color 12 bit
- Support
- Blu-Ray
- DVD24
- 50/
- 60fs
- HD-DVD/
- xvYCC
- Support audio format DTS-HD/
- Dolby-trueHD
- LPCM7.1/DTS/
- DOLBY-AC3
- DSD
- Support signal timing reset
- Support
- AWG26
- HDMI
- standard cable, input up to 15 meters,output up to 20 metes
- Input ports can be controlled by
- IR
- Remote Control
Via RS-232 control,the Machine can upgrade the software, and the input and the output can be switched by computer
- No signal loss

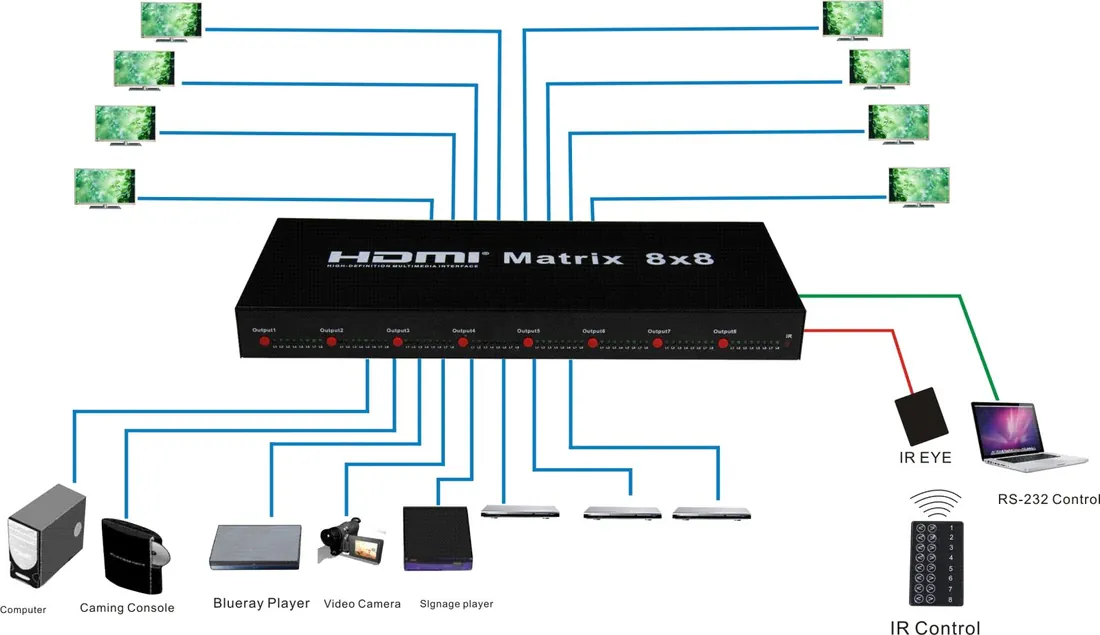

- Sketch map
Questions about this model
How do I get a price for the HDMI Matrix 8x8
Email [email protected] with the model and the quantity, and tell us the resolution and the distance the signal has to travel.
Is this model CE and FCC certified
Certificates are held per product line. Tell us the destination market and we will send the ones that apply to this model.
Can this be supplied under our own brand
Yes. Housing, branding and functions can be adapted for OEM and ODM projects.
Ask about the HDMI Matrix 8x8
Model, quantity, resolution and distance is all we need.
