HDMI Matrix 4x2
Made by Shenzhen Easyconnect Electronic Co., Ltd. in Shenzhen. Tell us the resolution and the transmission distance and we will confirm this is the right model before you order.
- Line
- HDMI Matrix
- Category
- HDMI Devices
- Manufacturer
- Easyconnect, Shenzhen China
- Certification
- CE, FCC and RoHS
Specification
Specifications:
- HDMI
- resolution.....................24/50/
- 60fs
- 1080p
- 1080i
- 720p
- 576p
- 576i
- 480p
- 480i
Support video color format.........................24bit/deep color
- 30bit
- 36bit
Support audio format..................................DTS-HD/
- Dolby-trueHD
- LPCM7.1/DTS/
- Dolby-AC3
- DSD
Max bandwidth............................................225MHz
Max baud rate..............................................6.75Gbps
- Input/Output
- TMDS
- signal.............................0.5~1.5Volts p-p(
- TTL
- Input/Output
- DDC
- signal...............................5Volts p-p (
- TTL
Input cable distance......................................<=
- 15m
- AWG26
- HDMI
- standard cable
- Output cable distance...................................<=
- 25m
- AWG26
- HDMI
- standard cable
Max working current......................................900mA
- Power adapter format Input...........................AC (
- 50HZ
- 60HZ
- 100V-240V
Output:
- DC5V
- 2A
Operating Temperature range........................-15 to +55 Centigrade
Operating Humidity range...............................5 to 90%RH (No Condensation)
Dimension(L x W x H).....................................260x114x45 (mm)
Weight..............................................................1040g
Features:
- 1. Four
- HDMI
- input signals switched or split to two
- HDMI
- sink devices
- 2. Support CEC and HDCP1.2
- 3. Support deep color
- 30bit
- 36bit
- 4. Support Blue-Ray 24/50/
- 60fs
- HD-DVD/
- xvYCC
- 5. Support signal
- retiming
- 6. Support input up to
- 15metres
- AWG26
- HDMI
- standard cable length, output up to
- 25metres
- AWG26
- cable length
- 7. Inputs can be switched with the
- IR
- remote control,also can be controlled by two buttons.?/div>
8. It can smartly jump over those input sources which are not connected.
9. With the smart function of memory, it can come back to the latest status when restarted or reconnected.
10. No loss of quality.
- 11. Need
- DC5V
- 2A
power supply.

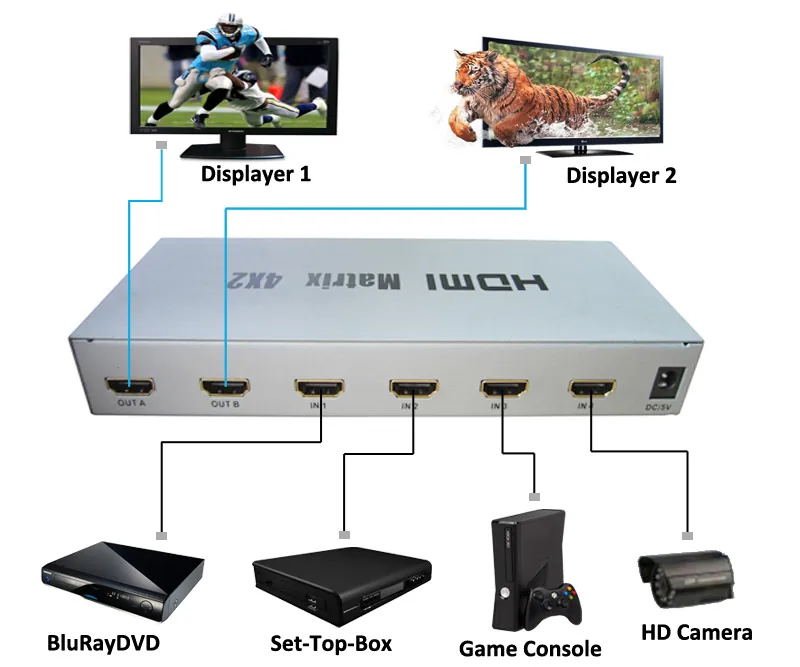

- Sketch map
Questions about this model
How do I get a price for the HDMI Matrix 4x2
Email [email protected] with the model and the quantity, and tell us the resolution and the distance the signal has to travel.
Is this model CE and FCC certified
Certificates are held per product line. Tell us the destination market and we will send the ones that apply to this model.
Can this be supplied under our own brand
Yes. Housing, branding and functions can be adapted for OEM and ODM projects.
Ask about the HDMI Matrix 4x2
Model, quantity, resolution and distance is all we need.
