60m HDMI extender over single CAT5e/6
Made by Shenzhen Easyconnect Electronic Co., Ltd. in Shenzhen. Tell us the resolution and the transmission distance and we will confirm this is the right model before you order.
- Line
- HDMI Extender
- Category
- HDMI Devices
- Manufacturer
- Easyconnect, Shenzhen China
- Certification
- CE, FCC and RoHS
Specification
Specifications:
Length of CAT-6 cable between Rx and TX…..……………….……………..Up to 60 meters
- HDMI
- Input…..…………………...………24/50/
- 60fs
- 1080p
- 1080i
- 720p
- 576p
- 576i
- 480p
- 480i
- Support audio format input..………DTS-HD/
- Dolby-trueHD
- LPCM7.1/DTS/
- Dolby-AC3
- DSD
- HDMI
- Output…..…………….…...………24/50/
- 60fs
- 1080p
- 1080i
- 720p
- 576p
- 576i
- 480p
- 480i
- Support audio format output...……. …………………………LPCM7.1/DTS/
- Dolby-AC3
- DSD
- Max
- bandwidth……………………………………………………………………………165MHz
- Max baud rate……………….…….………………….………….………………………4.95Gbps
Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p
- Output
- DDC
- signal
- 5Volts
- p-p (
- TT1L
- Input/Output
- HDMI
- cable distance………….……………..≤20m
- AWG26
- HDMI
- standard cable
- Max working current………………………………………………………………………...800mA
- Power adapter format………...………Input:AC (
- 50HZ
- 60HZ
- 100V-240V
Output:
- DC5V
- 2A
Operating Temperature range……..…………….………………………………… (-15 to +
- 55℃
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………82x44x22 (mm)
Features:
- 1. Support
- HDMI
- 1.3 protocol
- 2. Support full 3D
- 1080P
3.
- HDCP
- 1.2 protocol compliant
- 4. Signal transmission :Single
- CAT-5e
- STP
- or CAT-6
- STP
- (recommended) cables up to 60
- metres
- instead of
- HDMI
cables are connected between TX and RX Extender.
- 5. Support CEC
- 6. Audio format support : DTS-HD/
- Dolby-trueHD
- LPCM7.1/DTS/
- Dolby-AC3
- DSD
- 7. No loss of quality
- 8. Installs in minutes
- 9. Need
- DC5V
- 2A
- power supply

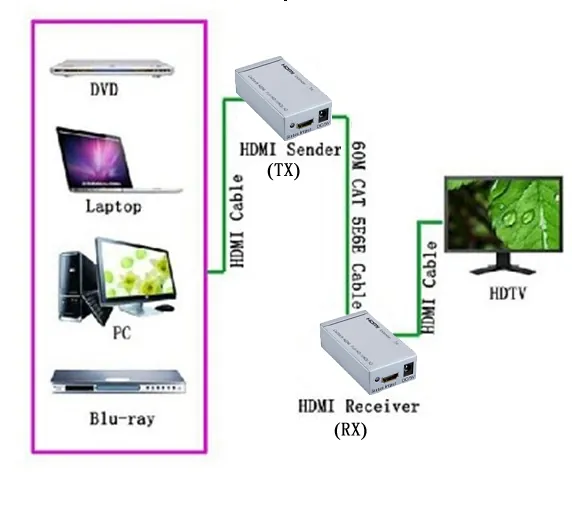

- Sketch map
Questions about this model
How do I get a price for the 60m HDMI extender over single CAT5e/6
Email [email protected] with the model and the quantity, and tell us the resolution and the distance the signal has to travel.
Is this model CE and FCC certified
Certificates are held per product line. Tell us the destination market and we will send the ones that apply to this model.
Can this be supplied under our own brand
Yes. Housing, branding and functions can be adapted for OEM and ODM projects.
Ask about the 60m HDMI extender over single CAT5e/6
Model, quantity, resolution and distance is all we need.
