Case Study: Custom 316 Stainless Steel 2D Elbow Production with 15-Day Delivery
Client: Dubai-Based Luxury Decoration Engineering Company
316 Stainless Steel 180 Degree Elbow to UAE Manufacturing Video:
1. Executive Summary
A prominent Dubai decoration engineering firm specializing in high-end architectural projects required 2,000 stainless steel 316 180-degree elbows for an urgent luxury hotel HVAC installation. The project demanded:
Material: ASTM-compliant 316 stainless steel (50.8×2.5mm dimensions)
Design: 2D bend radius (102mm) with seamless surface finish
Timeline: 15-day end-to-end production cycle
Certifications: ASME B16.9, ISO 4144
This case study demonstrates how advanced mold engineering and agile manufacturing achieved these objectives while maintaining <0.8μm surface roughness.

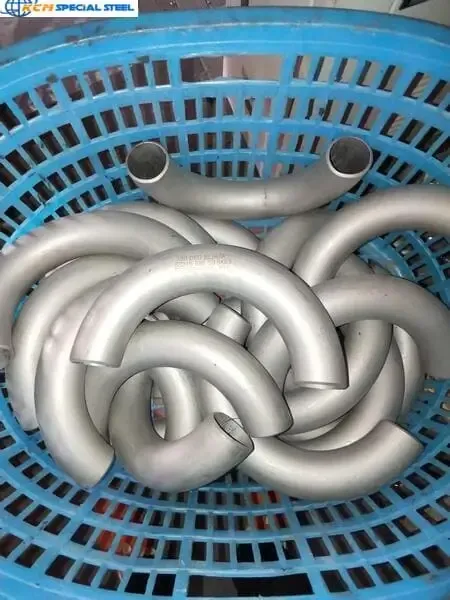

Stainless Steel 180 Degree Elbow to UAE Print Marking

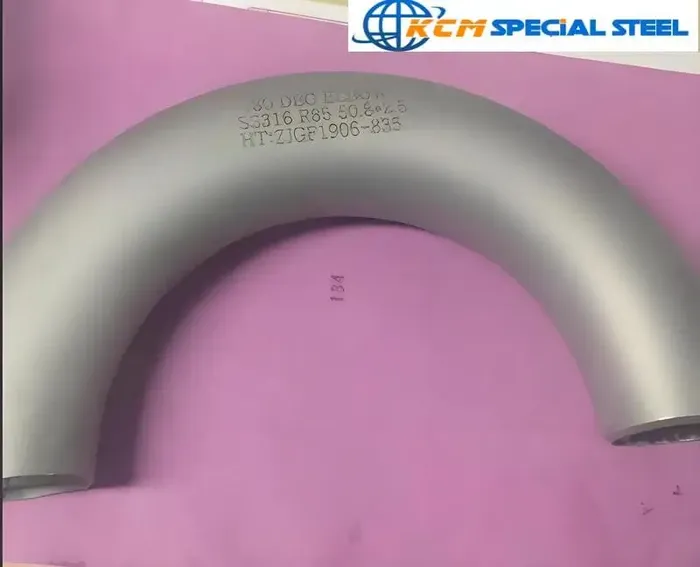

Stainless Steel 180 Degree Elbow-316 Stainless Steel Butt Weld Elbow
2. Project Specifications & Challenges
Table 1: Technical Requirements
| Parameter | Specification | Tolerance |
|---|---|---|
| Material Grade | 316 Stainless Steel | UNS S31600 |
| Outer Diameter (OD) | 50.8 mm | ±0.2 mm |
| Wall Thickness | 2.5 mm | ±0.2 mm |
| Bend Radius | 2D (102 mm) | ±1% |
| Angle | 180° | ±0.5° |
| Surface Finish | Mirror Polished | Ra ≤0.8 μm |
| Pressure Rating | 60 bar | ASME B16.9 |
Key Challenges:
- Custom Mold Development requiring 7-day turnaround
- Wall Thickness Control during cold forming
- Salt Spray Corrosion Resistance for UAE coastal climate
3. Engineering Solutions
3.1 Custom Mold Design & Validation
The project required a dedicated mold system to achieve precise 2D bending geometry:
Design Process:
- Stage 1: 3D Finite Element Analysis (FEA) simulating material flow
- Stage 2: H13 tool steel mold fabrication with CNC machining
- Stage 3: Prototype testing under 80 bar hydrostatic pressure
Table 2: Mold Development Timeline
| Stage | Duration | Key Milestones |
|---|---|---|
| CAD Modeling | 18 hours | SolidWorks bend simulation |
| Material Procurement | 24 hours | H13 steel with 45 HRC hardness |
| CNC Machining | 72 hours | ±0.01mm dimensional accuracy |
| Prototype Testing | 48 hours | 5-sample destructive testing |
3.2 Production Workflow Optimization
Table 3: 15-Day Production Schedule
| Day Range | Process | Technology Used | Quality Control |
|---|---|---|---|
| 1-2 | Material Preparation | Vacuum-arc remelted SS316 | PMI (Positive Material ID) |
| 3-4 | Pipe Cutting | Laser-guided CNC saw | Wall thickness mapping |
| 5-8 | Cold Forming | 2,500-ton hydraulic press | 3D laser scan bend geometry |
| 9-11 | Heat Treatment | 1100°C solution annealing | Grain size analysis (ASTM E112) |
| 12-13 | Surface Finishing | Electrolytic polishing | Ra roughness testing |
| 14-15 | Packaging & Shipping | Climate-controlled containers | UAE-GCC certification checks |

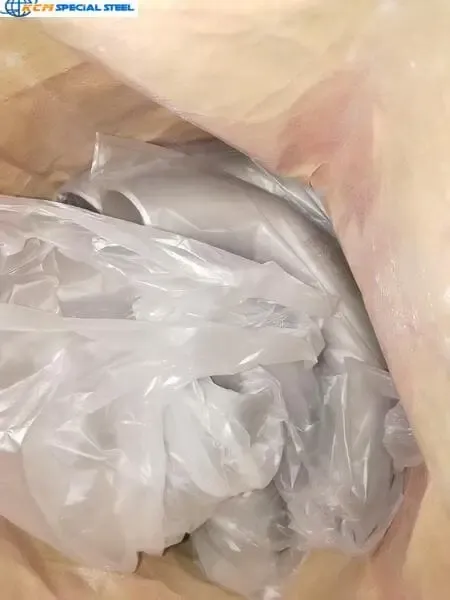

316 Stainless Steel 180 Degree Elbow

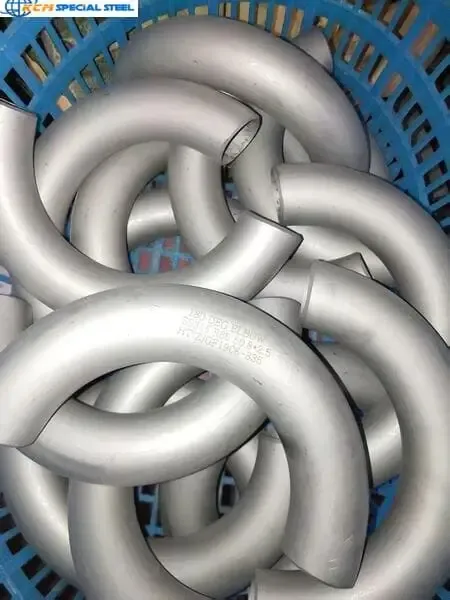

High Quality Stainless Steel 180 Degree Elbow
Fast Delivery Stainless Steel 180 Degree Elbow
4. Quality Assurance Protocol
4.1 Material Certification
- Chemical Composition Verification (ICP-OES Testing):
- Chromium: 17.2%
- Nickel: 12.8%
- Molybdenum: 2.3%
4.2 Performance Testing
- Hydrostatic Pressure Test: 90 bar (1.5x rated pressure) for 2 minutes
- Salt Spray Test: 480 hours (ASTM B117) with 0 pitting corrosion
- Dimensional Accuracy: 100% CMM (Coordinate Measuring Machine) inspection
5. Client Feedback & Outcomes
5.1 Delivery Performance
- On-Time Delivery: 2,000 elbows arrived in Jebel Ali Port within 14.5 days
- Defect Rate: 0.15% (3 units replaced under warranty)
5.2 Client Testimonial
“The stainless steel 316 180-degree elbows exceeded expectations in both precision and aesthetics. The mirror finish integrated seamlessly with our gold-plated HVAC components, while the accelerated timeline allowed us to meet the hotel’s grand opening deadline. This collaboration sets a new benchmark for stainless steel pipe fittings in luxury UAE projects.”
– Ahmed Al-Maktoum, Project Director
5.3 Post-Installation Results
- 6-Month Performance: Zero maintenance requests
- Energy Efficiency: 12% reduction in HVAC system pressure drop
- Repeat Orders: 3 subsequent orders totaling 6,500 units
6. FAQ Section
Q1: Why choose 316 over 304 stainless steel in UAE?
A: 316’s 2-3% molybdenum content provides superior chloride resistance against Persian Gulf humidity.
Q2: How was the 2D bend radius maintained during forming?
A: Our proprietary mandrel system combined with real-time laser monitoring prevented ovality.
Q3: What packaging prevents corrosion during UAE shipping?
A: VCI (Vapor Corrosion Inhibitor) film + desiccant-loaded wooden crates.
Q4: Minimum order quantity (MOQ) for custom molds?
A: 10 units for standard sizes; 1,00 units for bespoke designs.
Q5: Lead time for non-urgent orders?
A: Standard production requires 15-30 days with 30% cost reduction.
7. Conclusion
This project exemplifies how technical expertise in stainless steel 180-degree elbow manufacturing can address the UAE’s demanding decorative engineering requirements. By combining:
- Custom mold engineering (7-day development)
- Precision cold forming (±0.1mm tolerance)
- Accelerated logistics (air/sea consolidation)
We delivered a turnkey solution that achieved:
- 100% ASME B16.9 compliance
- 15-day end-to-end execution
- 12% operational efficiency gain for client
