Heat Accumulation Substance
honeycomb ceramic substrate
honeycomb ceramic substrateRTORCO.
Drawings and CAD files on request — email them to [email protected] and we will quote against your print.
Product Overview

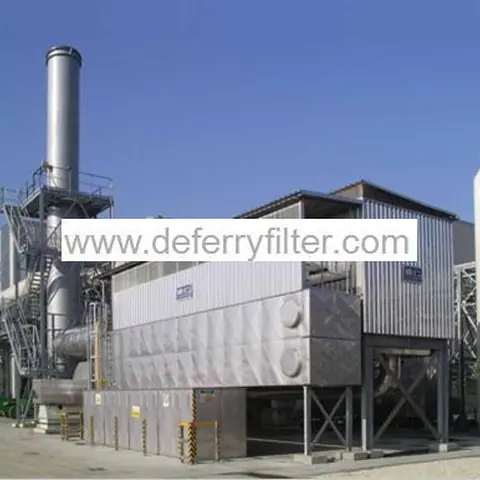

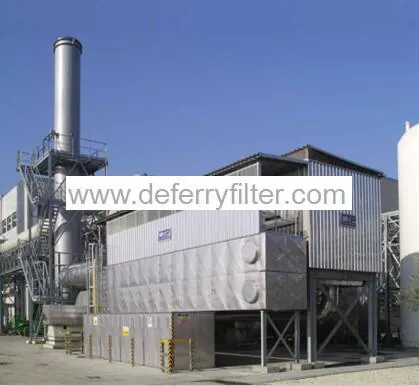

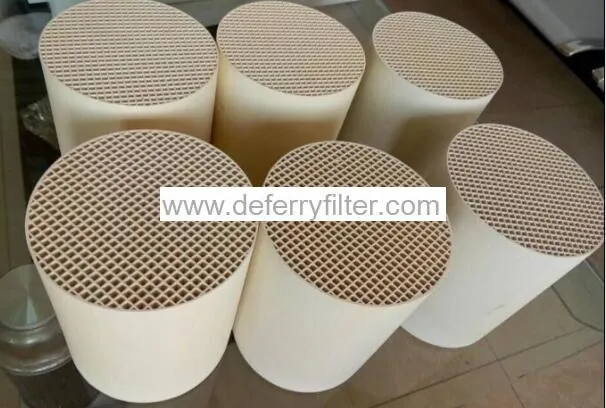

Deferry®'s Honeycomb Ceramic Heat Accumulation Substance it's features of corrosion resistances, large specific surface area, small heat Resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. It's widely used in many fields. The honeycomb ceramic as the heat exchange media is the key part for heat storing HTAC ( High Temperature Air Combustion) technology. It is the best choice for RTO, heat exchanger And other environmental protection and energy saving products.
Material:cordierite, mullite,cordierite-mullite,corundum- mullite,High alumina.

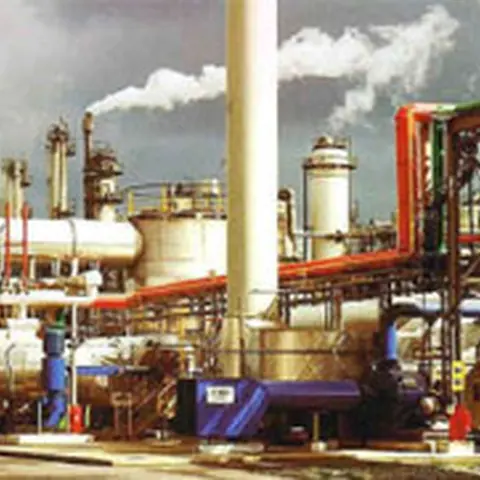

Iron and steel, metallurgy, petrochemical, electric power, boiler and Fuel elecric plant, Thermal power plant, theheat power station etc.
For more technical parameters or questions, please feel free to contact us.
Characterics
- Low thermal expansion
- Large specific heat capacity
- High specific surface area
- Low pressure drop
- Small thermal resistance
- Good thermal conductivity
- Good Heat-shock resistting ability
Specifications

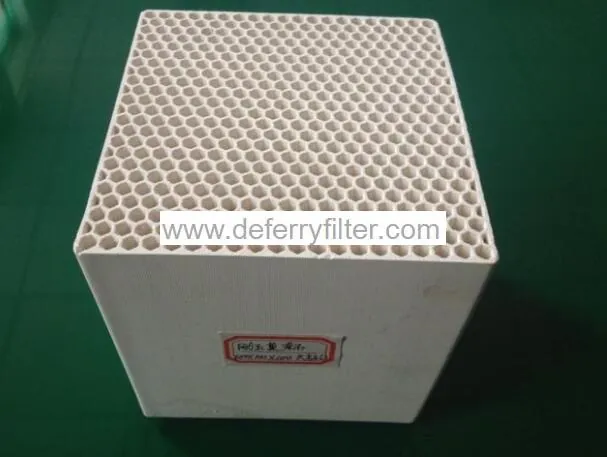

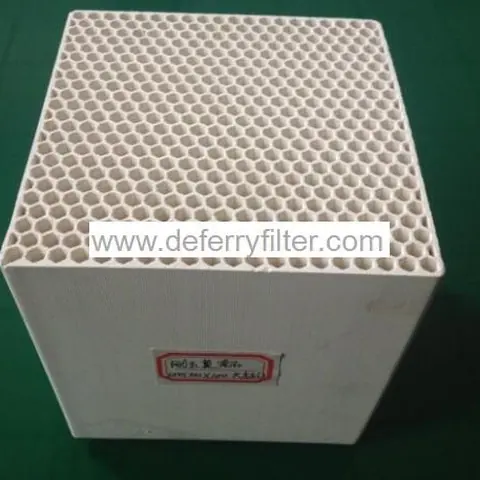

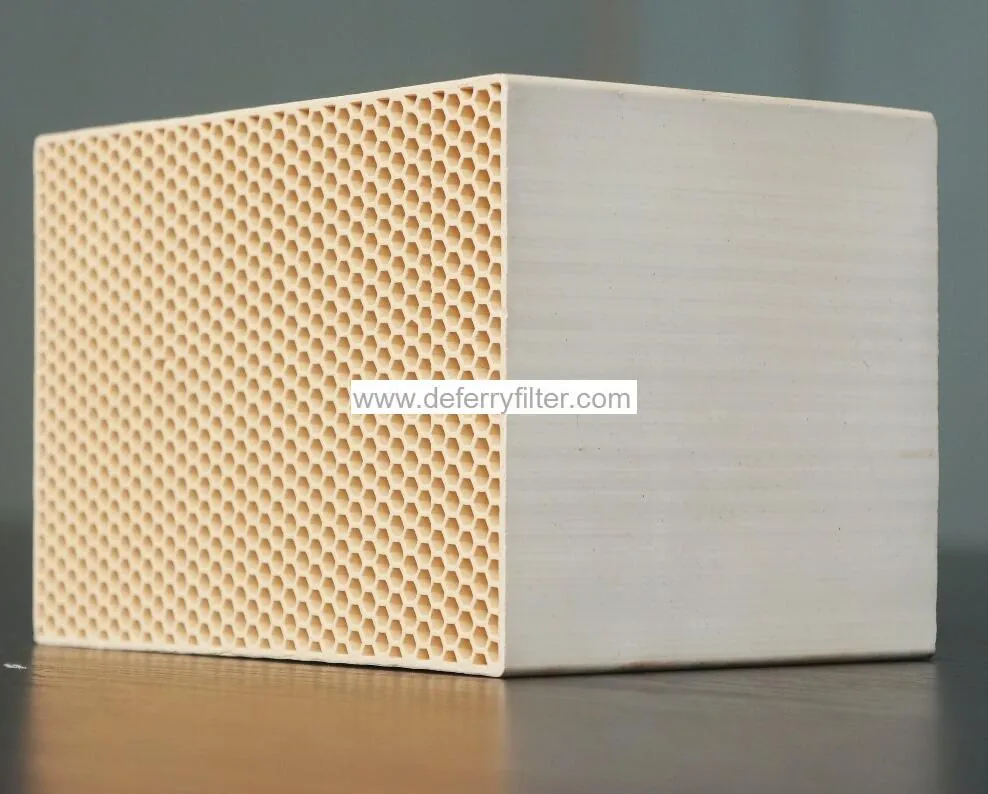

| H exagon hole shape | ||||
| Dimensions (mm) | B ore diameter (mm) | W all thickness (mm) | H eat transfer area ( ㎡ /m ³ ) | A perture ratio (%) |
| 150 × 100 × 100 | 3.1 | 1.0 | 673 | 53 |
| 150 × 100 × 100 | 3.1 | 1.5 | 625 | 49 |
| 150 × 100 × 100 | 3.5 | 1.0 | 655 | 58 |
| 150 × 100 × 100 | 3.9 | 1.1 | 624 | 58 |
| 1 0 0 × 100 × 100 | 3.1 | 1.0 | 673 | 53 |
| 150 × 100 × 100 | 3.5 | 1.0 | 655 | 58 |
| 150 × 100 × 100 | 3.9 | 1.1 | 624 | 58 |

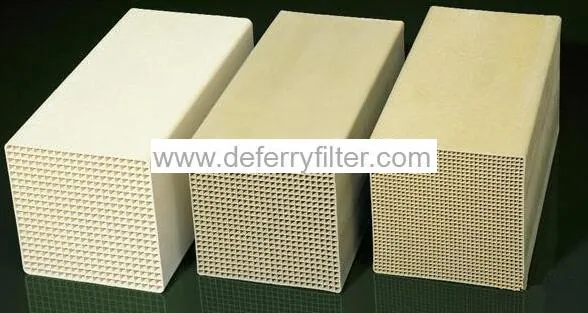

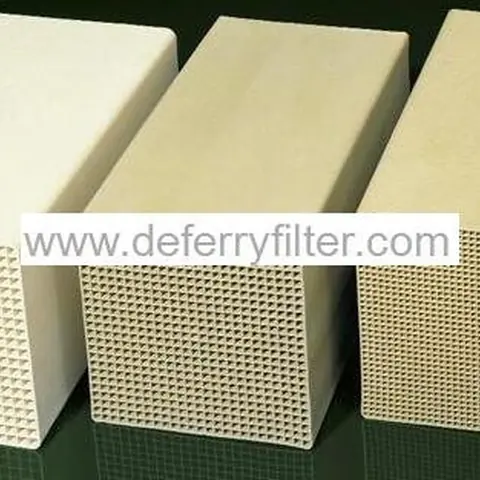

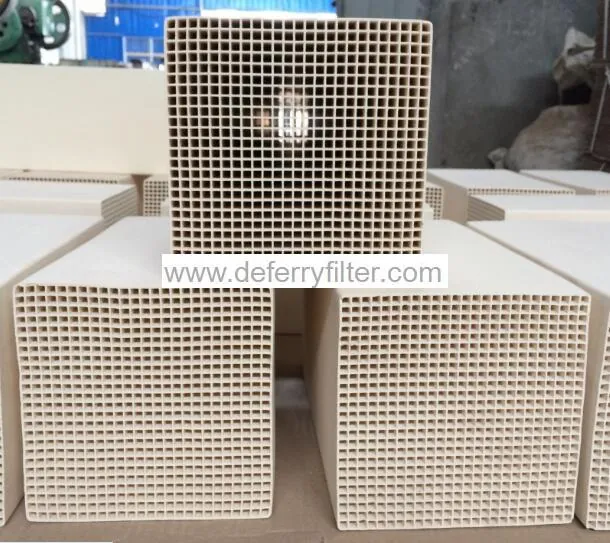

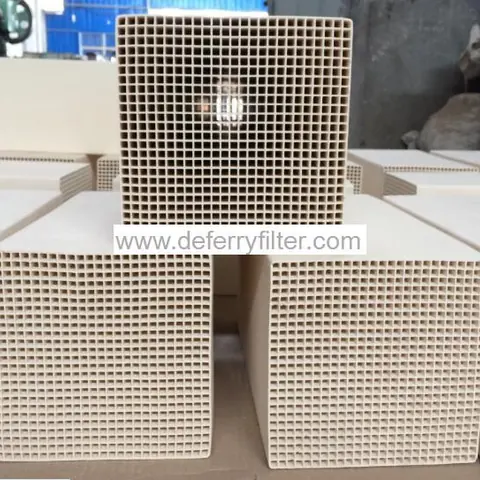

| Square hole shape | ||||
| 150 × 100 × 100 | 2.5 | 1.0 | 784 | 49 |
| 1 5 0 × 100 × 100 | 3.0 | 1.1 | 691 | 52 |
| 150 × 100 × 100 | 5.0 | 2.0 | 329 | 49 |
| 1 0 0 × 100 × 100 | 2.5 | 1.0 | 784 | 49 |
| 1 0 0 × 100 × 100 | 3.0 | 1.1 | 691 | 52 |
| 1 0 0 × 100 × 100 | 5.0 | 2.0 | 329 | 49 |
| 1 65 × 1 1 0 × 100 | 3.0 | 1.1 | 670 | 52 |
