ADSS Cable Fittings

Spiral-Vibration-Dampers

Spiral Vibration Dampers manufacture, High quality, fast deilivery

  • Spiral vibration dampers are produced for use on conductors and guy wires, especially effective for use on small diameter conductors and earthwires.
  • They are to reduce aeolian vibration by working as an interference device for the aeolian vibration place.
  • The above are typical only, please consult CROP for further information.
Request A Quote Email Us Request A Sample
GroupTelecom Cable Accessories
CategoryADSS Cable Fittings
StandardsIEC and GB
CustomisationOEM and non standard accepted
Spiral-Vibration-Dampers
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

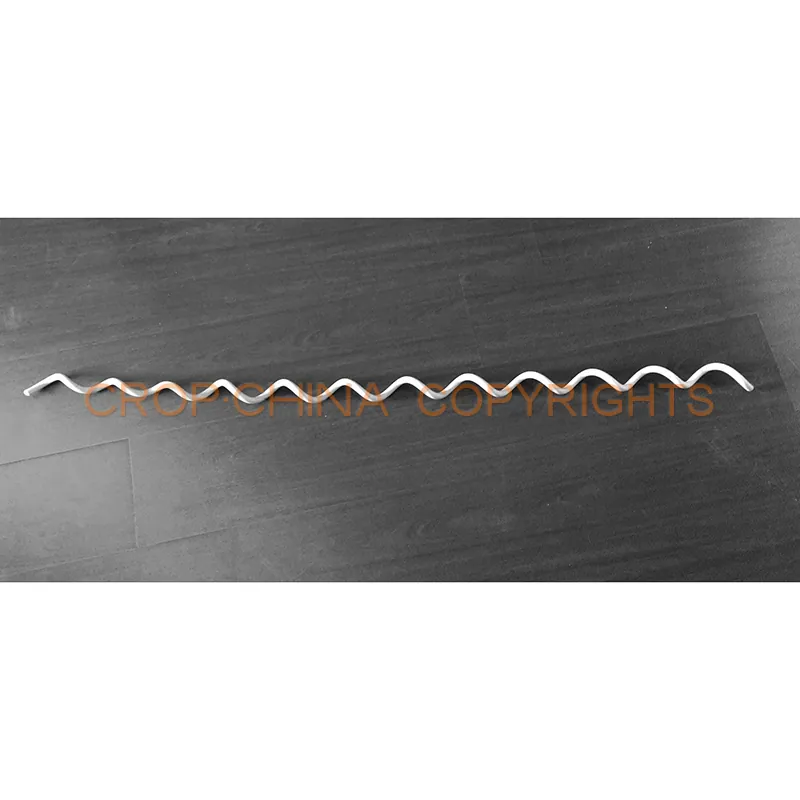

Spiral-Vibration-Dampers Description

Material: Made of high stregth, agiing resistant and highly elastic solid PVC

Application: ADSS system, The anti-vibration dampers may generate damping effect on wind vibration with the spiral vibration parts. It can avoid corrosion or erosion arc burning to protecting the cable.

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Product codeConductor Diameter (mm)Gripping section length (mm)Length (mm)Weight (kg)
SVP-0829-1256.3-8.2925012500.26
SVP-1170-1308.3-11.725013000.28
SVP-1430-13511.71-14.325013500.3
SVP-1930-16714.31-19.330016700.66
SVP-2200-18019.31-22.230018000.71

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Spiral-Vibration-Dampers available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
