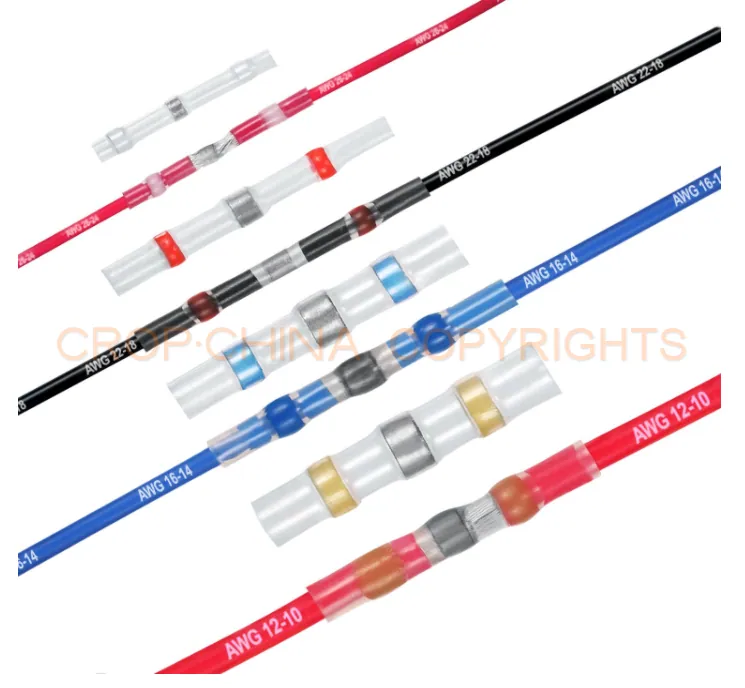

Solder seal wire connectors YT-ST type
Solder seal wire connectors advantage: Solderless & Crimpless, all you need is just a heat gun to finish the connection,much faster and easier.
- Description of solder seal wire connectors Solder seal wire connectors advantage: Solderless & Crimpless,all you need is just a heat
Overview
Solder Seal Wire Connectors YT-ST Type Description
Description of Solder Seal Wire Connectors
Solder seal wire connectors advantage: Solderless & Crimpless,all you need is just a heat gun to finish the connection,much faster and easier than the old way.heat shrink butt splice disconnect is a kind of accessory for electrical connections, butt splice connectors can be crimped on cable/wire/ electrical equipment. A wide range of premium quality lugs we can supply,and satisfy your different demands.
Performance of Heat Shrink Butt Splice
There is two hot melt waterproof adhesive rings in each butt connector, which help it hold up better to moisture.
Fit for Confined and Narrow Spaces
Butt splice connectors can be bent after connection and no need to crimp or solder in the confined area, just control the temperature via a heat gun. Easy to Identify: Specific color for specific size, easy to pick up for use. IATF16949:2016 Listed: our solder seal connectors meet the newest standard of International Automotive Task Force, which is the most standardized and safest way for you to repair or modify.
Material of Splice Connectors
Insulating material of splice connectors: heat Shrinkable tube Low temperature solder sleeve Waterproof hot melt adhesive
Related Product
Specifications
Codes Ranges and Dimensions
Figures below are reproduced from the CROP catalogue for this item.
| Item No. | Conductor Section | Dimension(mm) | Colour | |||||
|---|---|---|---|---|---|---|---|---|
| A.W.G. | mm2 | A | B | B&C | C | L | ||
| YT-ST4Y | 12-10 | 4-6 | 6 | 3.7 | 6 | 3.4 | 40 | Yellow |
| YT-ST3B | 16-14 | 1.5-2.5 | 4.5 | 2.3 | 4.5 | 2 | 40 | Blue |
| YT-ST2R | 22-18 | 0.5-1 | 2.7 | 1.4 | 2.7 | 1.2 | 40 | Red |
| YT-ST1W | 26-24 | 0.25-0.34 | 1.7 | 1 | 1.7 | 0.76 | 26 | White |
Product Images
Ordering and Support
From Enquiry To Delivered Order
Send The Requirement
Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.
Quotation
Price, packing, carton quantity and lead time are confirmed against the catalogue reference.
Sample or Tooling
Samples are sent for approval. Parts that need a new mould go through the in house mould division.
Production and Shipment
Production to IEC and GB standards, then packing and shipment on the agreed terms.
Answers
Frequently Asked Questions
How do I choose the right size?
Is Solder seal wire connectors YT-ST type available as a sample before a production order?
Which standards do CROP products follow?
Can items be produced to our own drawing?
How do I obtain the PDF catalogue?
