Piercing Connector

Solar IPC Connector Insulation Piercing Connector TTD(CRT) 041

Solar IPC Connector provide protection, insulation, and high-quality sealing of the electrical connections to the Insulation Piercing technology.

  • Insulation Piercing Connector CRT Piercing Connector CRT401 The waterproof insulation piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided. Service condition: <1kV, 50/60Hz, -10°C to 55°C Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.
Request A Quote Email Us Request A Sample
GroupABC Accessories
CategoryPiercing Connector
StandardsIEC and GB
CustomisationOEM and non standard accepted
Solar IPC Connector Insulation Piercing Connector TTD(CRT) 041
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Solar IPC Connector Insulation Piercing Connector TTD(CRT) 041 Description

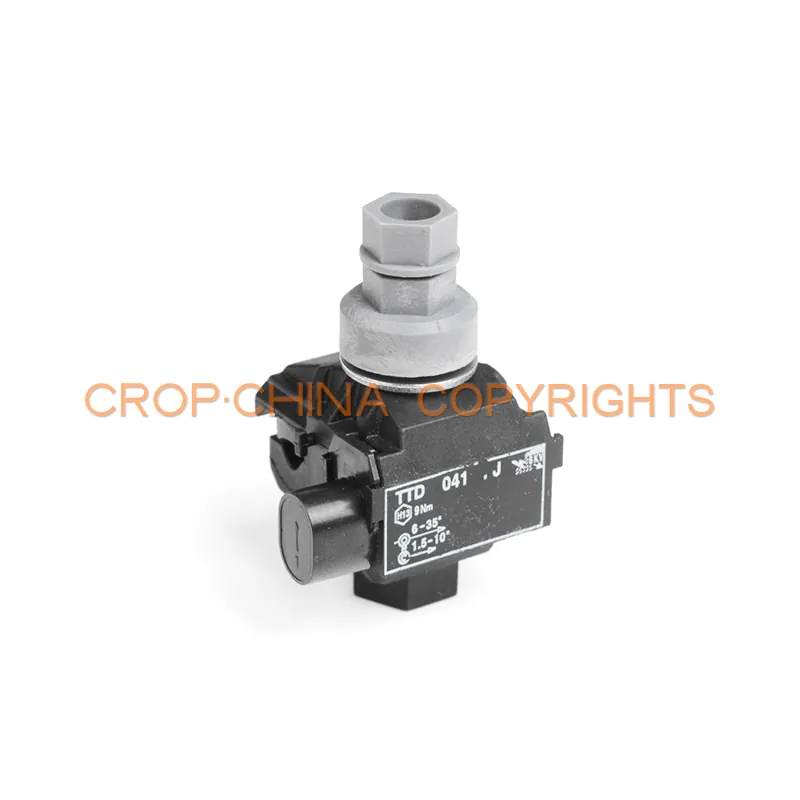

Solar IPC Connector Insulation Piercing Connector TTD041

Description of Solar IPC Connector

Solar IPC Connector insulation piercing connector provide protection, insulation, and high-quality sealing of the electrical connections thanks to the Insulation Piercing Connector (IPC) that doesn’t require stripping the conductor insulation before making the connection. It is used for the branch connection of insulated cables in building power distribution systems, the connection of low-voltage overhead insulated cables, the branch connection of low-voltage insulated household cables, and street lamp power distribution systems.

Cable Range

Main line: 6-35 mm2,insulated copper or aluminum

Branch line: 1.5-10 mm2,insulated copper or aluminum

CRTFJ Series Insulation Piercing Connector

CRTFVO Series Insulation Piercing Connector

Material

Body:UV and weather resistant thermoplastic,It is good to make sure that the product you are buying meets the national and international standards. Teeth: Copper tinned, Brass tinned, Aluminum.Copper tinned teeth can be used for copper or aluminum conductor.The aluminum teeth can be used for aluminum conductor. End cap: UV and weather resistant thermoplastic Grease: Silica gel Bolt: galvanized steel or stainless steel Washer, Nut: galvanized steel or stainless steel Fuse nut: UV and weather resistant thermoplastic

Related Product

Features

1.It can be operated with electricity or power failure. 2.The main body of the insulation piercing connector is made of high-strength, mechanical and weather-resistant insulating materials. 3.The screws equipped with tightening torque nuts are treated with anti-corrosion. The torque nuts make the installation easier, safer and faster. Its constant puncture pressure can ensure the cable link to achieve the best electrical effect. 4.The piercing connector has a waterproof function and can withstand a voltage of 6KV in water without breakdown. 5.Sealed and waterproof branch line end caps can prevent water from entering the branch line conductors, and can be branched on the left or right side as needed.

Catalogue download

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Equal to CodeTTD041FJTTD051FJTTD101FJTTD151FJTTD201FJTTD251FJTTD271FJTTD281FJTTD401FJTTD431FJTTD441FJTTD451FJ
ModelsCRT041FJCRT051FJCRT101FJCRT151FJCRT201FJCRT251FJCRT271FJCRT281FJCRT401FJCRT431FJCRT441FJCRT451FJ
Main Line(mm 2 )6-3516-956-5025-9535-9550-15035-12050-18550-18570-24095-24095-240
Service Line (mm 2 )1.5-101.5-102.5-352.5-3525-9525-9535-1202.5-3550-15016-9550-15095-240
Bolt No.111111112222
Torque (Nm)
RemarksISO to ISOISO to ISOISO to ISOISO to ISOISO to ISOISO to ISOISO to ISOISO to ISOISO to ISOISO to ISOISO to ISOISO to ISO
