Lugs and Joints

Shear Bolt Mechanical Lug

Shear bolt mechanical lug is used for low voltage and high voltage cable terminations from 1kv up to 42kv.The cable range suitable from 25 sqmm to 800 sqmm.

Conductor range: 25-800mm2
Solid and stranded aluminium, copper conductors,aluminum connector,copper and aluminum transition butt.

Request A Quote Email Us Request A Sample

GroupPower Connectors

CategoryLugs and Joints

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Gallery Ordering FAQ Related

Overview

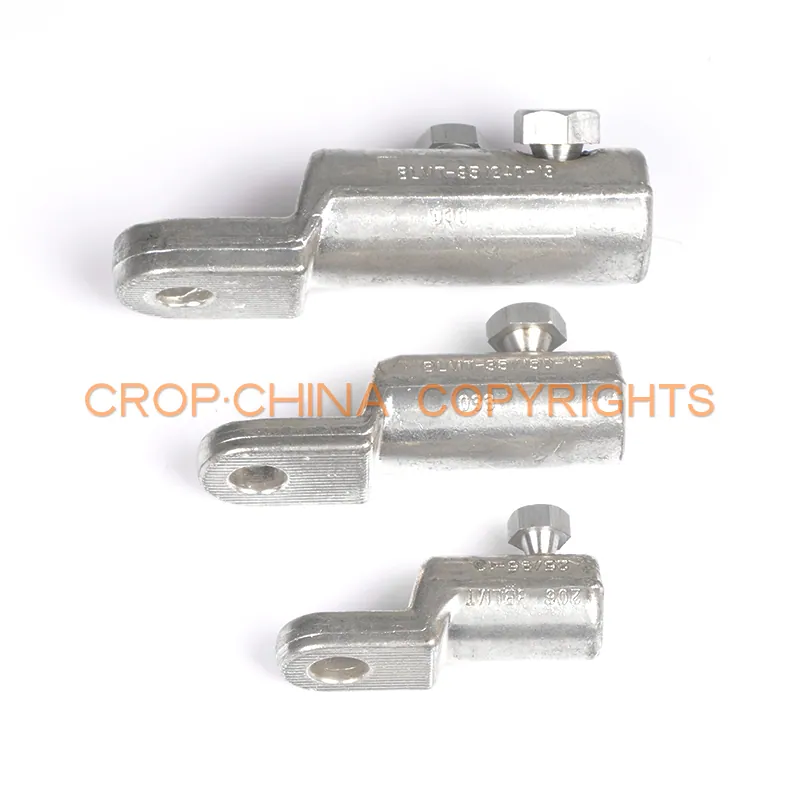

Shear Bolt Mechanical Lug Description

Shear bolt mechanical lug is used for low voltage and high voltage cable terminations from 1kv up to 42kv.It can be connection both solid and stranded aluminium, copper conductors,aluminum connector,copper and aluminum transition butt. The cable range suitable from 25 sqmm to 800 sqmm.

Material

Aluminum alloy

The mechanical lug with a aluminum gasket,it can adjust the square number of the pipe wall wiring.The advange is that you no need to buy multiple types of shear bolt mechanical lug,which can save costs and reduce inventory.The bolt shears off smoothly when it is tightened – the remains stay in the tool and can be safely disposed of. The bolt always shears off at the top edge of the connector body eliminating sharp protrusions. All edges of the connector body are rounded.

Advantage

1. Bear a large load. 2. High temperature and corrosion resistance. 3. It can be used for high-voltage cables, with safe current-carrying, and it is not easy to generate heat or deformation due to excessive electricity. It is safe and reliable. 4. Easy installation,no need to buy hydraulic pliers, ordinary wrenches or socket wrenches can be fixed. 5. No Sharp edges, soft contours.

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Type	Code	Cable range mm2	Dia. Of mounting hole	Dimension(mm)	No.of Torque bolts	Bolts head size
L	L1	D	d	AF
LSA-25/95-13	LSA-1	25-95	13	74	60	24	12.8	1	13
LSA-35/150-13	LSA-2	35-150	13	100	86	28	15.8	1	17
LSA-95/240-13	LSA-3	95-240	13	129	112	33	20	2	19
LSA-120/300-13	LSA-4	120-300	13	140	120	37	24	2	22
LSA-185/400-13	LSA-5	185-400	13	160	137	42	25.5	3	22
LSA-500/630-13	LSA-6	500-630	13	175	150	50	33	3	27
LSA-800-13	LSA-7	800	13	195	165	55	36	4	27

Product Images

Ordering and Support

From Enquiry To Delivered Order

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.
