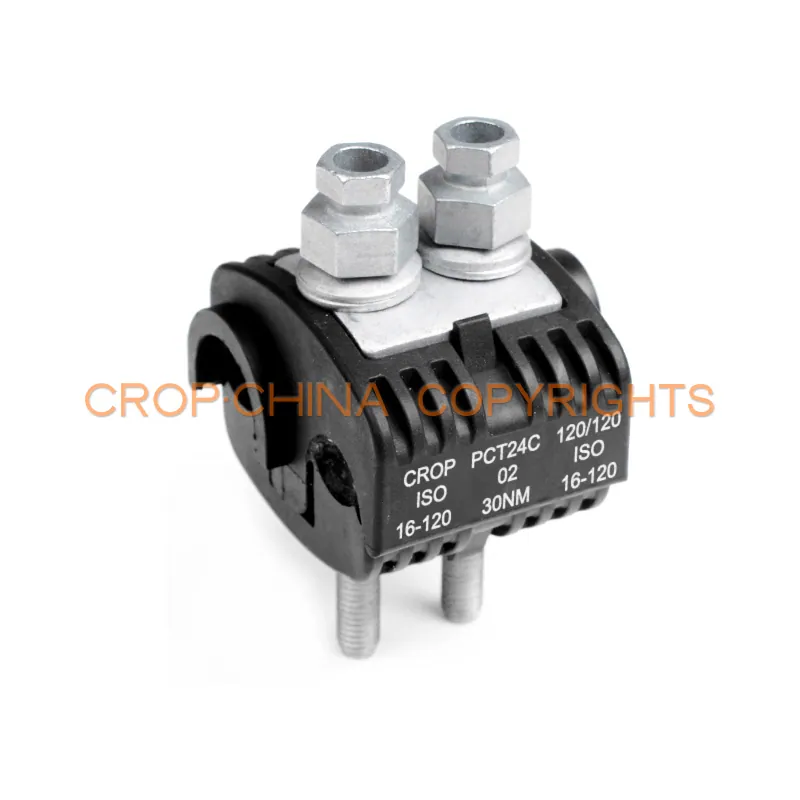

Piercing Connector PCT24C Series

The waterproof piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores.

CROP Catalogue No.: 110-01 Insulation Piercing Connector 2 bolt 1KV & 10kV The waterproof insulation piercing connectors are suitable for majority types of 10kV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided. Service condition: 10kV, 50/60Hz, -10°C to 55°C Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Request A Quote Email Us Request A Sample

GroupABC Accessories

CategoryPiercing Connector

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Gallery Ordering FAQ Related

Overview

Piercing Connector PCT24C Series Description

Waterproof Piercing Connectors

Description of Waterproof Piercing Connectors

The waterproof piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided. Service condition: <1kV, 50/60Hz, -10°C to 55°C Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Material of Piercing Connectors

Body: Thermoplastic polyamide 66 with fiberglass Connecting bridge: Copper tinned, Brass tinned, Al Sealing parts: Flexible PVC End cap: Flexible PVC Grease: Silica gel Bolt: Hot dip galvanized steel, 8.8 grade Washer, Nut: Hot dip galvanized steel Fuse nut: Zinc alloy

10KV Piercing Connector

Related Product

Features of Insulation Piercing Connector

• Tested for watertightness at a voltage of 6 kV for 30 min in a water bath • Potential free tightening bolts allow safe installations on life lines • Bimetallic, suitable for aluminium and copper conductors • Long neck 13 mm shear head nut ensuring reliable installations • Components not isolated, end cap attached to body • Insulation material made of weather and UV resistant glass fibre reinforced polymer

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Models	PCT24C 120/120	PCT24CB 120/120	PCT24C 240/150	PCT24CB 240/150
Main Line(mm²)	16-120	16-120	95-240	95-240
Service Line (mm ² )	16-120	(B)16-120	16-150	(B)16-150
Bolt No.	2	2	2	2
Torque (Nm)	22NM	22NM	30NM	30NM
Remarks	ISO to ISO	ISO to Bare	ISO to ISO	ISO to Bare
