IPCs for Covered Conductors JBC-2 Description

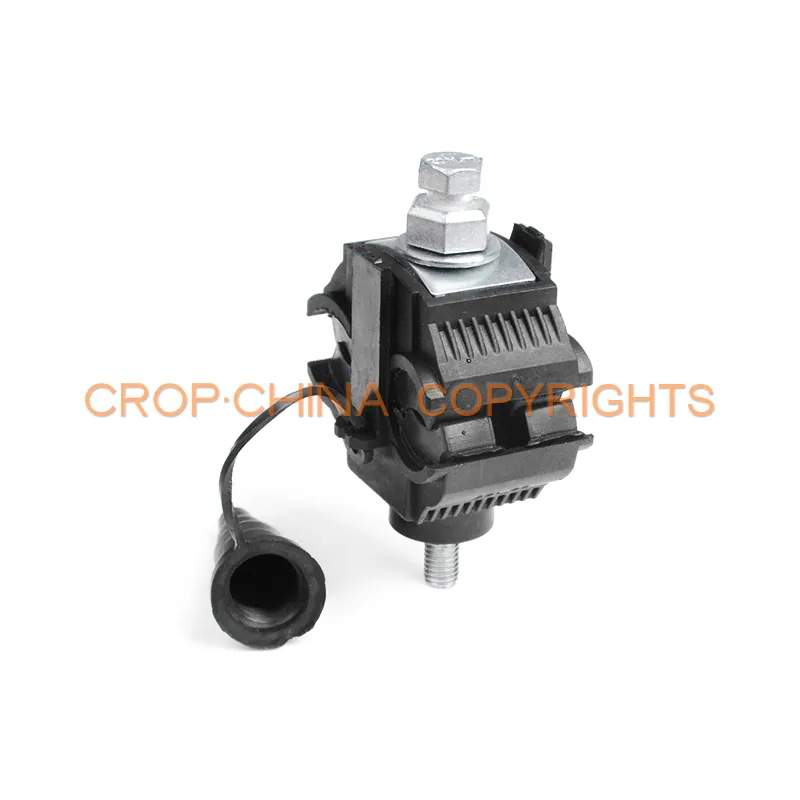

IPCs Insulation Piercing Connector for Covered Conductors

IPCs for covered conductors insulation piercing connector provide a fast,convenient and reliable method of connecting overhead low voltage mains to services or other mains.All common types of conductors can be interconnected,including insulated aluminum or copper.The IPCs can be used in copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum solid or stranded wire applications.Fully insulated bolt provides safe live line working. Both main and branch conductor insulations are pierced by single bolt action. Test voltage 6 kV/50 Hz/1 min in water. Connector’s design enables live line installation without peeling insulation from conductor.

Application Cable

Main cable: Insulated copper or aluminum Tap cable: Insulated copper or aluminum Not suitable for multi stranded flexible cable or neutral screened cable.

Material of IPCs Body: Thermoplastic polyamide 66 with fiberglass Connecting bridge: Copper tinned, Brass tinned, Al Sealing parts: Flexible PVC End cap: Flexible PVC Grease: Silica gel Bolt: Hot dip galvanized steel, 8.8 grade Washer, Nut: Hot dip galvanized steel Fuse nut: Zinc alloy

Related Product of Insulation Piercing Connector

Features of IPCs Insulation Piercing Connector

• Simultaneous piercing on main & tap • No need to strip cable to make the connection • Provides a fully sealed,waterproof connection • Captive end cap for protection of tap cable,which can be mounted on either side. • Tested for watertightness at a voltage of 6 kV for 30 min in a water bath • Potential free tightening bolts allow safe installations on life lines • Bimetallic, suitable for aluminium and copper conductors • Long neck 13 mm shear head nut ensuring reliable installations • Components not isolated, end cap attached to body • Insulation material made of weather and UV resistant glass fibre reinforced polymer

IPCs Insulation Piercing Connector Catalogue Download

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

ModelsJBC-0JBC-1JBC-2PCT23C 240-240
Main Line(mm²)25-7035-7035-15050-240
Service Line (mm²)6-356-3535-15050-240
Bolt No.1112
Torque (Nm)10NM13NM17NM23NM
RemarksISO to ISOISO to ISOISO to ISOISO to ISO
