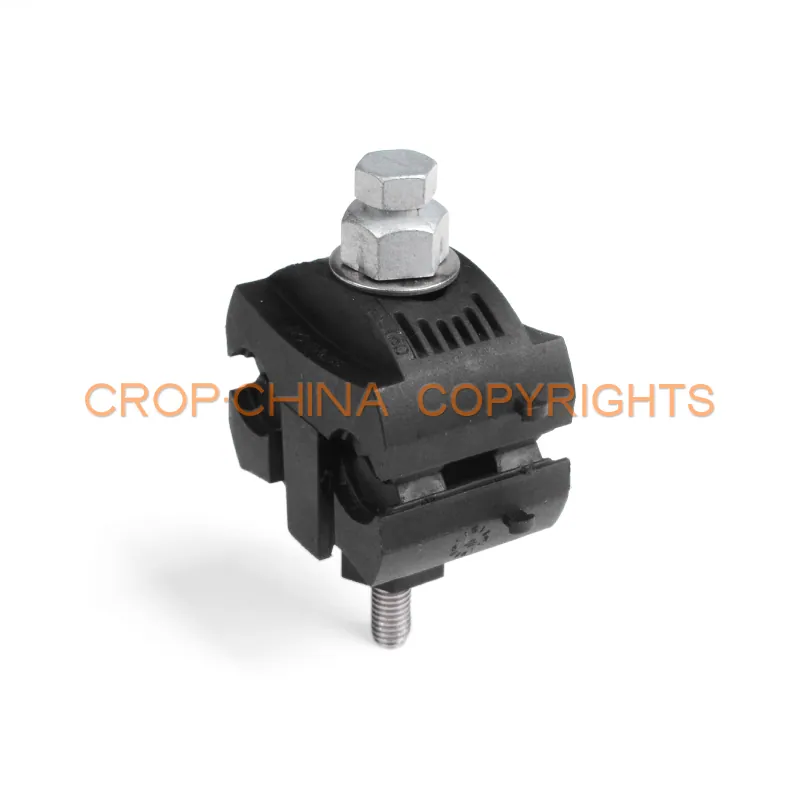

Piercing Clamp IPC OEM Series Description

Piercing Clamp

Description Piercing Clamp are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact.

The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided. Service condition: <1kV, 50/60Hz, -10°C to 55°C Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020. Material Body: Thermoplastic polyamide 66 with fiberglass Connecting bridge: Copper tinned, Brass tinned, Al Sealing parts: Flexible PVC End cap: Flexible PVC Grease: Silica gel Bolt: Hot dip galvanized steel, 8.8 grade Washer, Nut: Hot dip galvanized steel Fuse nut: Zinc alloy

Related Product

Features • Tested for watertightness at a voltage of 6 kV for 30 min in a water bath • Potential free tightening bolts allow safe installations on life lines • Bimetallic, suitable for aluminium and copper conductors • Long neck 13 mm shear head nut ensuring reliable installations • Components not isolated, end cap attached to body • Insulation material made of weather and UV resistant glass fibre reinforced polymer

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

ModelsIPC 150-35CPL-1PCT23C 95/70
Main Line(mm²)35-15016-9525-95
Service Line (mm²)6-3516-256-70
Bolt No.112
Torque (Nm)17NM17NM17NM
RemarksISO to ISOISO to ISOISO to ISO
