Piercing Connector

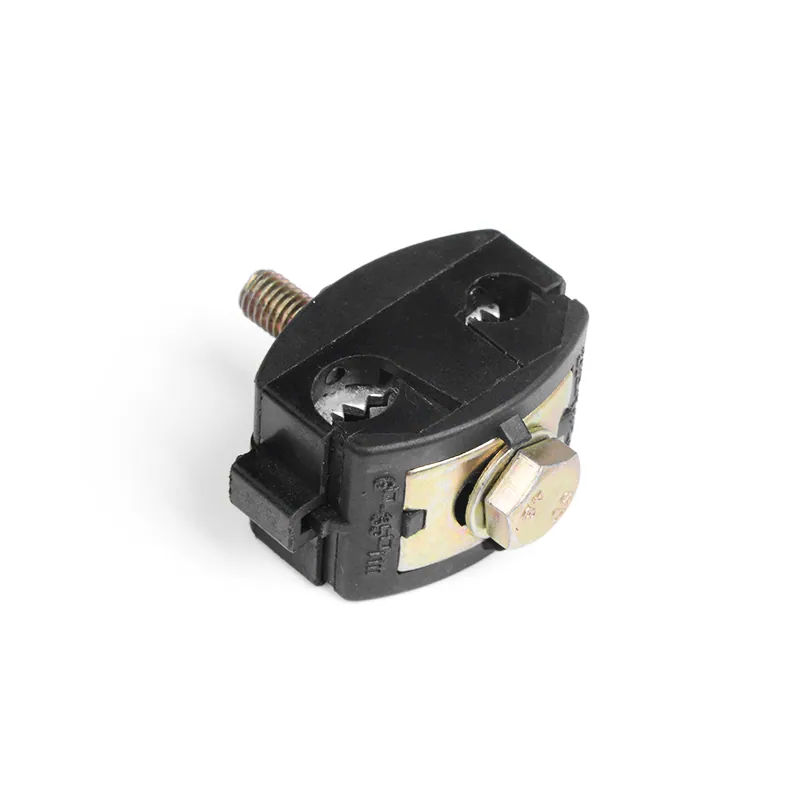

Insulation Piercing Connectors JBC-0

The insulation piercing connectors for low voltage aerial bundle cable LV ABC as well as connections to service and lighting cable cores.

  • Insulation Piercing Connector JBC Series The waterproof insulation piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided. Service condition: <1kV, 50/60Hz, -10°C to 55°C Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.
Request A Quote Email Us Request A Sample
GroupABC Accessories
CategoryPiercing Connector
StandardsIEC and GB
CustomisationOEM and non standard accepted
Insulation Piercing Connectors JBC-0
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Insulation Piercing Connectors JBC-0 Description

Insulation Piercing Connectors for Low Voltage Aerial Bundle Cable (LV ABC) JBC-0

Description of Insulation Piercing Connectors

The insulation piercing connectors for low voltage aerial bundle cable LV ABC as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided.

The insulation piercing connector are suitable for different combinations of ALUMINIUM and COPPER, main and branch conductors. The connector shall primarily be used as an insulated tap off clamp with main conductor ranging from 25mm2 Copper to 70mm2 Aluminium and branch line ranging between 6-35 mm2 copper cross sectional area. The thickness of insulation for both main and branch conductors shall not be greater than 2mm.

Service condition: <1kV, 50/60Hz, -10°C to 55°C Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Related Product of Piercing Connector

Material of Insulation Connector

Body: Thermoplastic polyamide 66 with fiberglass Connecting bridge: Copper tinned, Brass tinned, Al Sealing parts: Flexible PVC End cap: Flexible PVC Grease: Silica gel Bolt: Hot dip galvanized steel, 8.8 grade Washer, Nut: Hot dip galvanized steel Fuse nut: Zinc alloy

Features

• Tested for watertightness at a voltage of 6 kV for 30 min in a water bath • Potential free tightening bolts allow safe installations on life lines • Bimetallic, suitable for aluminium and copper conductors • Long neck 13 mm shear head nut ensuring reliable installations • Components not isolated, end cap attached to body • Insulation material made of weather and UV resistant glass fibre reinforced polymer

Catalogue download

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

ModelsJBC-0JBC-1JBC-2PCT23C 240-240
Main Line(mm²)25-7035-7035-15050-240
Service Line (mm²)6-356-3535-15050-240
Bolt No.1112
Torque (Nm)10NM13NM17NM23NM
RemarksISO to ISOISO to ISOISO to ISOISO to ISO

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Insulation Piercing Connectors JBC-0 available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
