Lugs and Joints

Hydraulic Cable Lug Crimper

Hydraulic crimping tool for terminal lug and connectorsis used to join the strander aluminum wire or copper wire by cold-moulding.

  • Hydraulic crimping tool for terminal lug and connectors Description of Hydraulic crimping tool Hydraulic crimping tool for terminal lug and
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryLugs and Joints
StandardsIEC and GB
CustomisationOEM and non standard accepted
Hydraulic Cable Lug Crimper
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

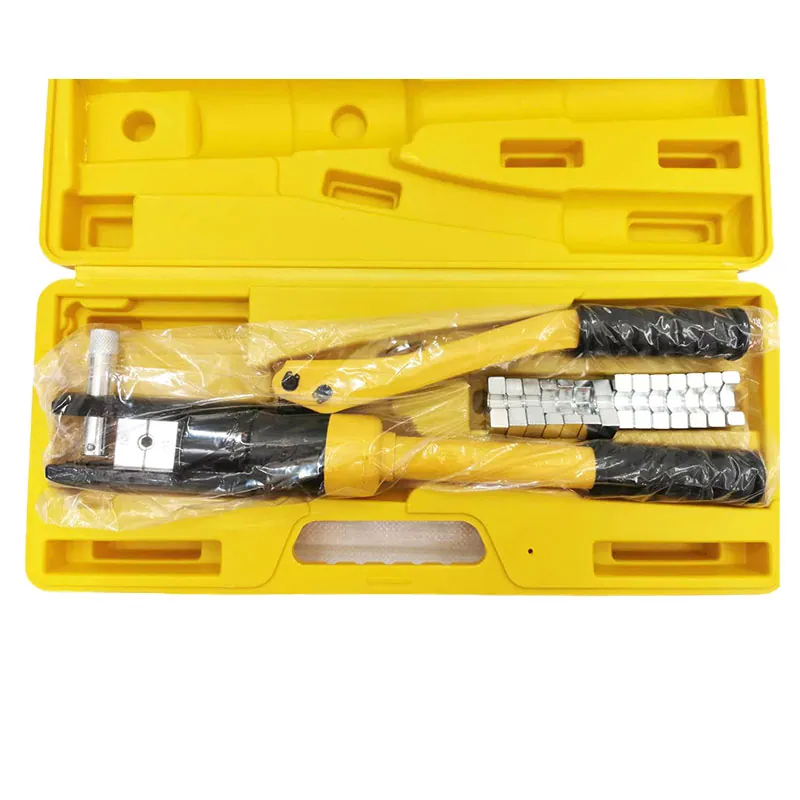

Hydraulic Cable Lug Crimper Description

Hydraulic Crimping Tool for Terminal Lug and Connectors

Description of Hydraulic Crimping Tool

Hydraulic crimping tool for terminal lug and connectors is used to join the strander aluminum wire or copper wire by cold-moulding.Choose the right sized moulding dies according to the type of the conducting wire and then ture the handle over and over until the upper and lower dies are pressed together. The implement is the second generation new type press tool,the oil path principle which improved by hi-tech skill has such features as quick joint,easy operation,high precision,light weight,small size,solidpress and small resistance.

It is advised that the implement should be taken good care of,Don’t disassemble or knock it at one’s option.When disassembling,please keep the ground clean.When oil is userd up,one should dismount the handle from the implement and then turn out the oil stopper,fill the oil and at last turn back the stopper.

Parameter of Cable Lug Crimper Plier

Related Product

Specifications

Codes Ranges and Dimensions

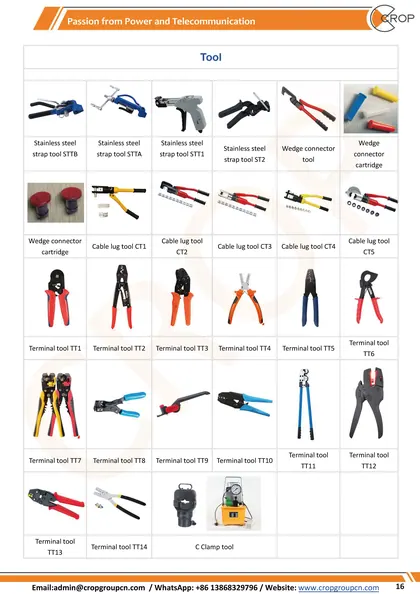

Figures below are reproduced from the CROP catalogue for this item.

ModelYYQ-120YYQ-240YYQ-300YYQ-70
Press joint Rangealuminum(mm2)10-12016-24016-3006-70
copper(mm2)10-12016-15016-2406-70
Max Operating Pressure(T)1216208
Max Operating Stroke(mm)14222214
Dimension(mm)400X150X65510X135X80560X155X92340X100X60
Deadweight(kg)2.55.25.72.5
Hex Die Used10,16,25,35,50,70,95,12016,25,35,50,70,95,120150,185,24016,25,35,50,70,95,120,150,185,240,3004,6,10,16,25,35,50,70

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Hydraulic Cable Lug Crimper available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
