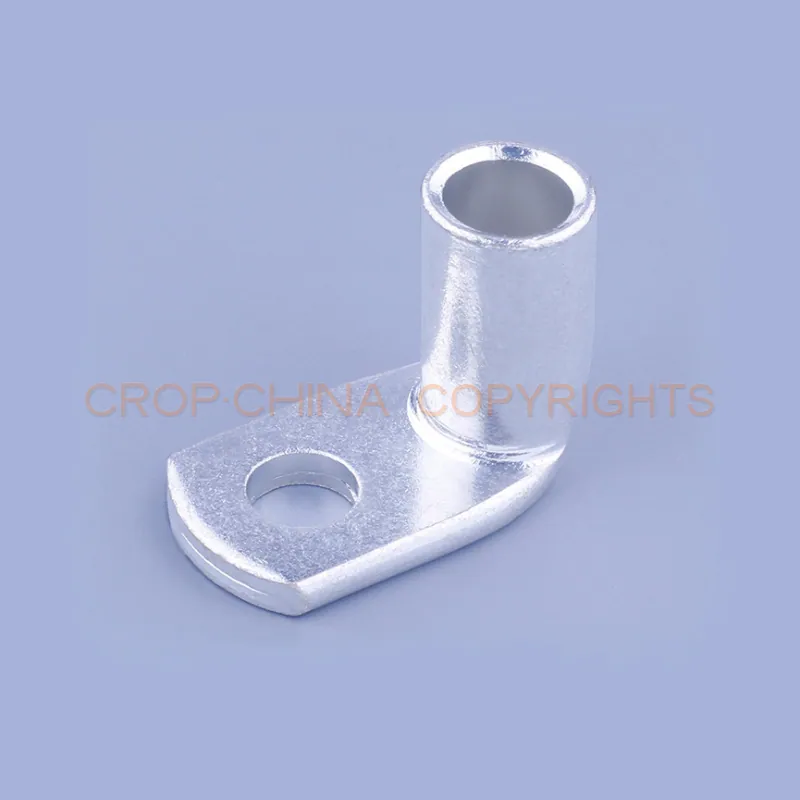

GPH90 ° Angled Copper Tube Terminal
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

GPH90 ° Angled Copper Tube Terminal Description

Related Product

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Item No.Dimension(mm)
BφDφdφd2L1L2
GPH90-6/5106.53.55.322.514
GPH90-6/6126.424
GPH90-6/8158.427.5
GPH90-6/101610.529.5
GPH90-10/51274.55.32316
GPH90-10/6126.424
GPH90-10/8158.428
GPH90-10/101810.529.5
GPH90-16/5128.55.55.322.520
GPH90-16/6146.424
GPH90-16/8158.428
GPH90-16/101810.531
GPH90-16/12191332
GPH90-25/615106.96.427.521
GPH90-25/8168.432.5
GPH90-25/101810.532.5
GPH90-25/12191334
GPH90-35/617128.56.428.524
GPH90-35/8178.434
GPH90-35/102010.534
GPH90-35/12221340.5
GPH90-50/62014106.43728.5
GPH90-50/8208.440.5
GPH90-50/102010.540.5
GPH90-50/12231342.5
GPH90-50/16281750.5
GPH90-70/82416.5128.44331
GPH90-70/102410.543
GPH90-70/12241344.5
GPH90-70/16281753
GPH90-70/2032159
GPH90-95/8261813.58.444.535
GPH90-95/102610.544.5
GPH90-95/12261346.5
GPH90-95/16281752
GPH90-95/2030.52159
GPH90-120/102919.51510.54935.5
GPH90-120/12291349
GPH90-120/16291755
GPH90-120/2030.52161
GPH90-150/10312116.510.54840
GPH90-150/12311351
GPH90-150/16311756
GPH90-150/20342161.5
GPH90-185/123524191358.546
GPH90-185/16351758.5
GPH90-185/20352165
GPH90-240/12402621135450
GPH90-240/16401760
GPH90-240/20402167.8
GPH90-300/124329.523.51374.559
GPH90-300/16431764
GPH90-300/20432170.5
GPH90-400/12493427137962
GPH90-400/16491768.5
GPH90-400/20492175
