INSULATION PIERCING CONNECTORS (IPC)

Insulation Piercing Connectors are a fast, simple way to make a tap off style connection.ETP CTH95, 25-95mm2, to 7-120mm2

  • CROP catalogue 2018: 110 Insulation Piercing Connectors are a fast, simple way to make a tap off style connection. By piercing the insulation and making a high pressure connection with the conductor IPCs minimise any resistance caused by the connection. IPCs also incorporate shear bolt technology, ensuring the connector is correctly tightened.
Request A Quote Email Us Request A Sample
GroupABC Accessories
CategoryPiercing Connector
StandardsIEC and GB
CustomisationOEM and non standard accepted
INSULATION PIERCING CONNECTORS (IPC)
OverviewGalleryOrderingFAQRelated

Overview

INSULATION PIERCING CONNECTORS (IPC) Description

ABC Cable Waterproof Insulation Piercing Clamp Connector (IPC)

Insulation piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided. Insulating piercing connectors allow splice insulated / insulated lines or insulated / bare line. The coverage of the main and derived sections allows subscriber connections and line extensions. Tapping can be performed indifferently on both sides of the connector. Service condition: <1kV, 50/60Hz, -10°C to 55°C Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

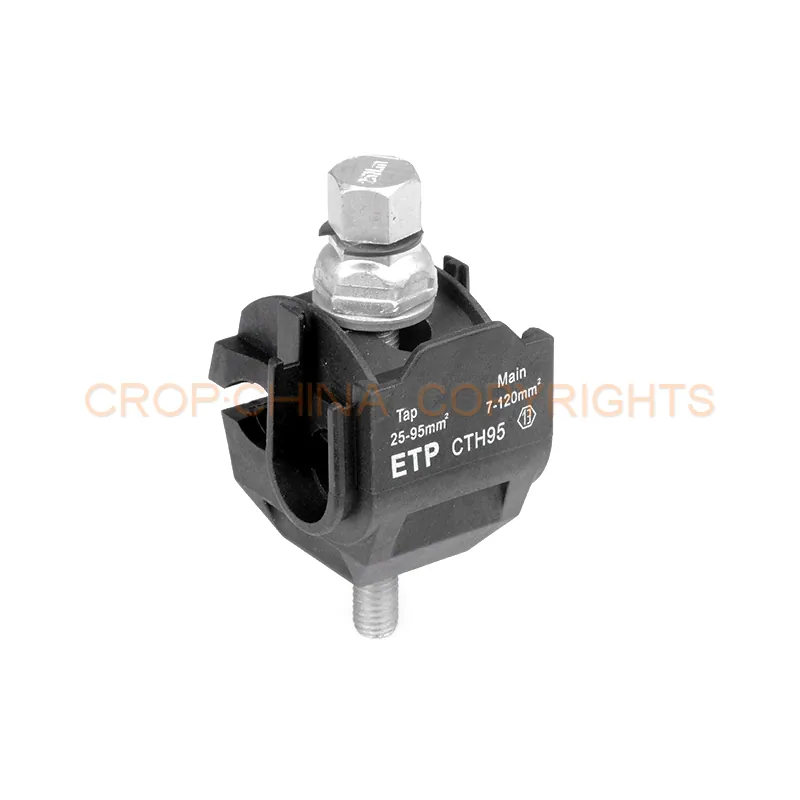

Insulation Piercing Connector

Product size: CTH95 OEM logo: ETP Cable range: 25-95mm2, to 7-120mm2
