Enclosure Accessories

DIN Rail

DIN rail can be used in mount multiple control components, devices, terminal blocks, power supplies inside equipment racks.

DIN Rail Steel Catalogue: 2014-A231

Request A Quote Email Us Request A Sample

GroupABC Accessories

CategoryEnclosure Accessories

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Gallery Ordering FAQ Related

Overview

DIN Rail Description

Description

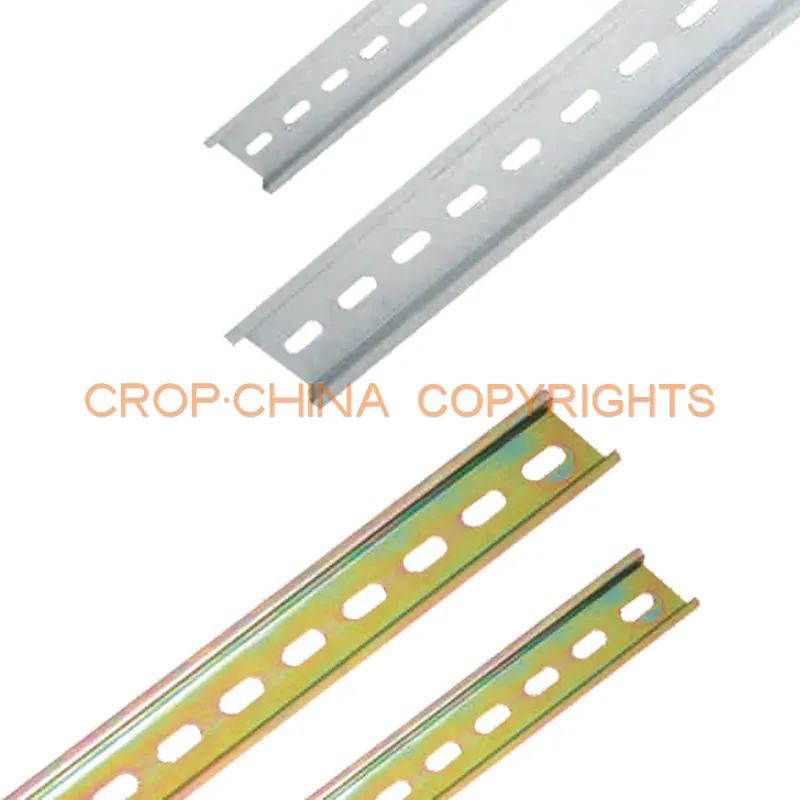

DIN rails have been accepted all over the world, so that equipment or panel manufacturers can install multiple control components, devices, terminal blocks, power supplies, etc. on the same rail. Using DIN Rails can enhance design capabilities, save space and reduce labor.

The standard guide rail is made of ordinary steel with electro-galvanized and passivation layer, and has a variety of configurations. Aluminum and stainless steel rails are also available, but only 35 mm in size and 7.5 mm deep.

Standard DIN rails are available in 35mm (deep 7.5 and 15mm deep), 32mm and 15mm widths, and are available in 1 m (3’3″) and 2 m (6’6″) lengths. It can be cut into customized lengths and punched with customized holes or perforations according to requirements.

Material

*Perforated or unperforated

*Standard steel DIN rails are steel with electro-galvanized and passivated

*Aluminum DIN rails is made of aluminum

*Stainless DIN rails are made of AISI 304 stainless steel

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Type	Width (mm)	Height (mm)	Thickness (mm)	Length (M)	Hole size (mm)	Material
CR-701	35	7.5	1	1 or 2	φ5.2×15	Steel
φ6.2×15

Type	Width (mm)	Height (mm)	Thickness (mm)	Length (M)	Hole size (mm)	Material
CR-702	35	6.5	1	1 or 2	φ5.2×15	Steel
φ6.2×15

Type	Width (mm)	Height (mm)	Thickness (mm)	Length (M)	Hole size (mm)	Material
CR-703	35	15	1.5	1 or 2	φ5.2×15	Steel
φ6.2×15

Type	Width (mm)	Height (mm)	Thickness (mm)	Length (M)	Hole size (mm)	Material
CR-704	15	5.5	1	1 or 2	φ4.2×12.2	Steel

Type	Width (mm)	Height (mm)	Thickness (mm)	Length (M)	Hole size (mm)	Material
CR-705	32	15	1.2	1 or 2	φ6.2×15	Steel

Type	Width (mm)	Height (mm)	Thickness (mm)	Length (M)	Hole size (mm)	Material
CR-706	35	7.5	1	1 or 2	φ4.8×25	Aluminum

Type	Width (mm)	Height (mm)	Thickness (mm)	Length (M)	Hole size (mm)	Material
CR-707	35	7.5	1.5	1 or 2	φ5.2×15	Aluminum

Type	Width (mm)	Height (mm)	Thickness (mm)	Length (M)	Hole size (mm)	Material
CR-708	32	15	1.5	1 or 2	φ6.2×15	Aluminum

Type	Width (mm)	Height (mm)	Thickness (mm)	Length (M)	Hole size (mm)	Material
CR-709	25	10	1.1	1 or 2	φ4.8×25	Aluminum
