CRA-360 Airflow Buffs/Corrugated Polishing Buffs Making Machine
New design product– automatic forming machine for high end buffing wheel which are called as Airflow Buffing Wheel , Weave buffing Wheel ,made of sisal or cloth.
WhatsApp this model Email this model
Published specifications
| Power | 2KW, Voltage:380V,3 phases, 50HZ |
|---|---|
| Molds | You can change different clamps for different outer diameter |
| Voltage | 380V,3 phases, 50HZ |
Figures above are taken from the live product text. Missing fields are left blank on purpose.
What this item is for

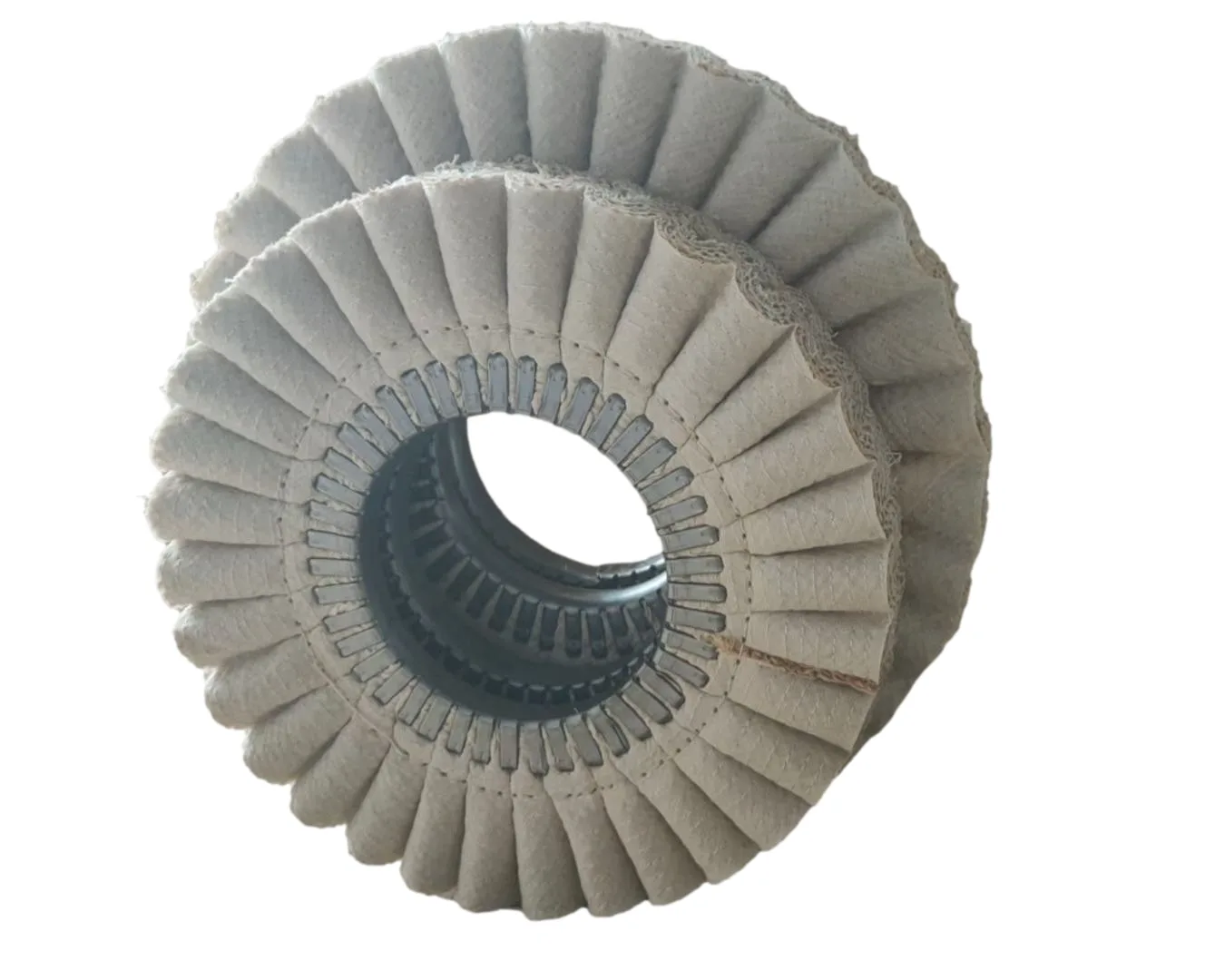

New design product– automatic forming machine for high end buffing wheel which are called as Airflow Buffing Wheel , Weave buffing Wheel ,Corrugated Polishing Buffs, made of sisal or cloth.
There are 20,30 32 36,44 Weave polishing Wheel options .
It can be easily operated by only one person, with high molding speed and good manufacturing effect, completely replacing complicated manual operations, saving a lot of costs for your polishing cloth wheel production and creating more profit margins.

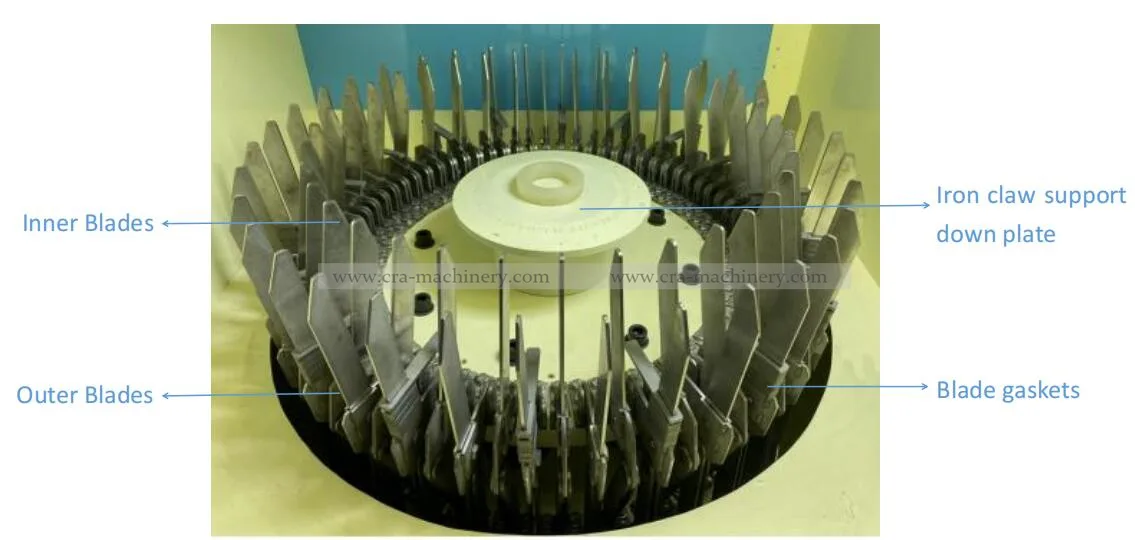

The whole machine includes a wave forming knife system, an operating platform, and a cloth rolling device.
Details Advantage: This machine is special used for forming of polish buffs call weave buffs, airflow buffs, or corrugated buffs.
Suitable for cotton, treated cotton or sisal cloth.

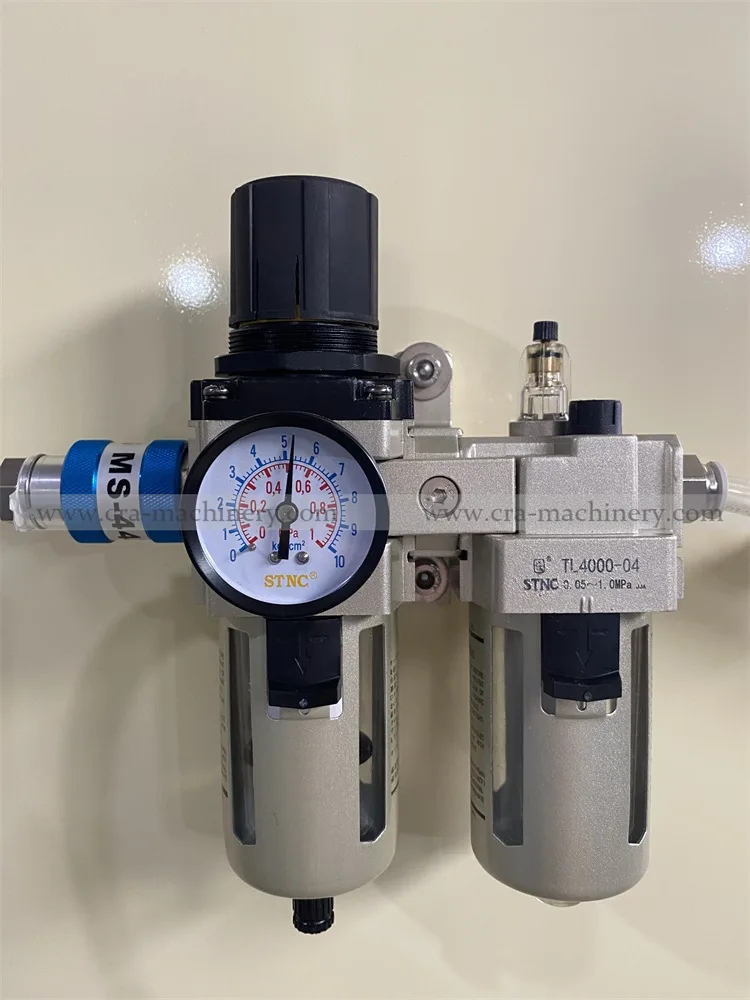

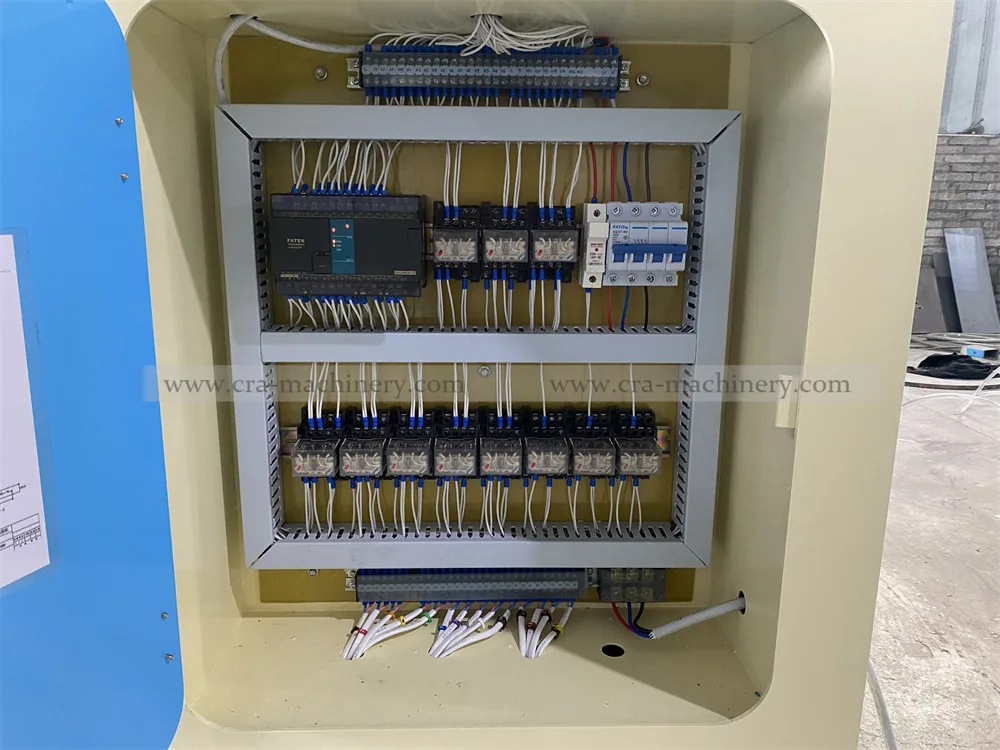

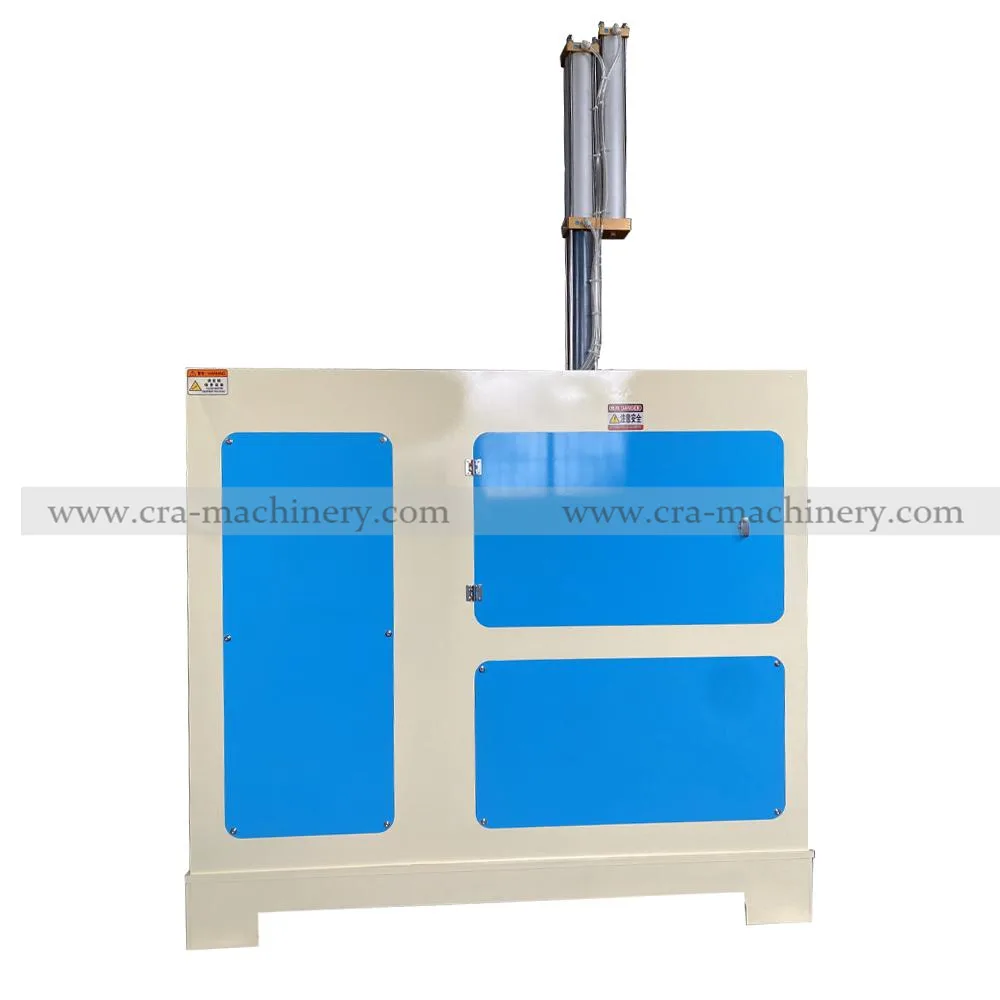

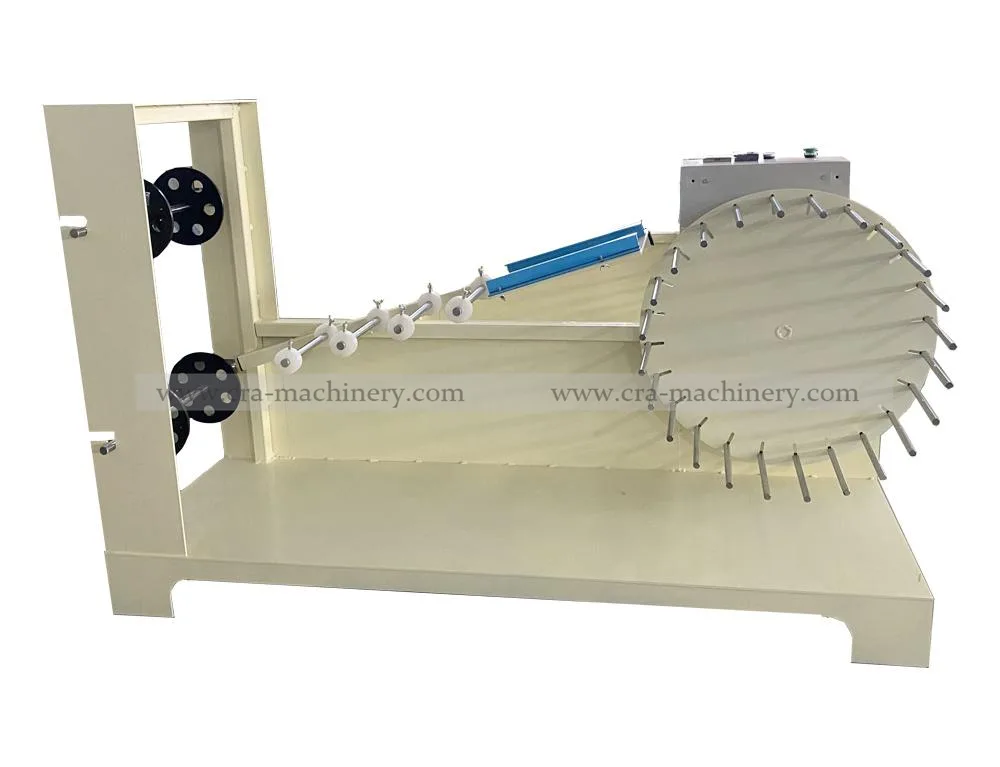

Main structure: It is composed of main body, automatic cotton/sisal material winding/rolling device, electrical control element, pneumatic control element, pneumatic system, connecting device, etc.
Optional pneumatic or hydraulic control system.

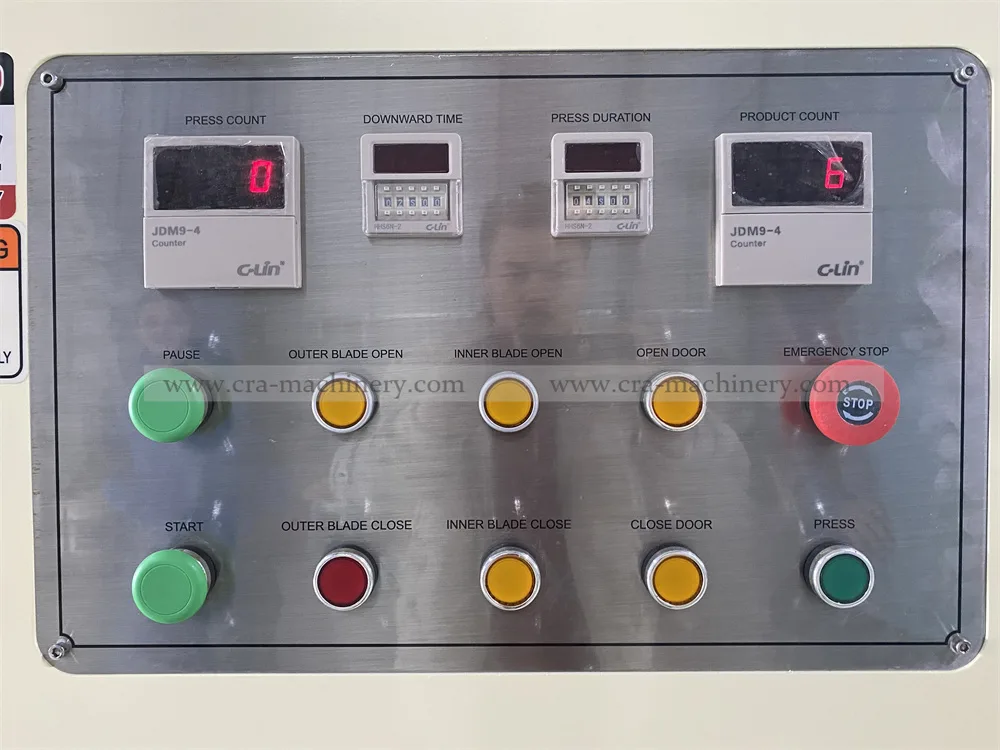

working principle: electrical control box controls the pneumatic system driving the the main body to work.
Operation: Rolling the fabric/sisal—put on fabric/sisal roll—close the clamps—press the materials—open the clamps—put on the iron clinch ring—close the clamps—press the iron clinch ring—Finish product Main parameter– Power: 2KW, Voltage:380V,3 phases, 50HZ.
Molds: You can change different clamps for different outer diameter.
It takes 20 minutes to changes one set of clamps.
