Spiral Nozzles

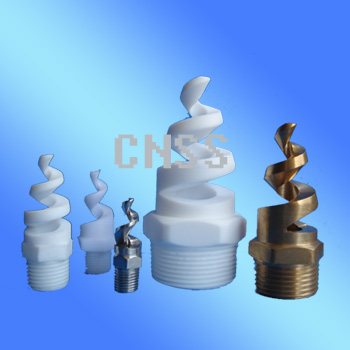

Spiral nozzle in Brass
Model: SPB-BR Material: BRASS Processing: BY CNC
| Series / part | Spiral nozzle in Brass |
|---|---|
| Category | Spiral Nozzles |
| Product family | Special Purpose Nozzles |
| Materials | Brass |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Largest free passage per capacity
- Full, hollow and wide-angle cones
- Brass, 316SS, PP and PTFE
- No internal vanes to foul
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.

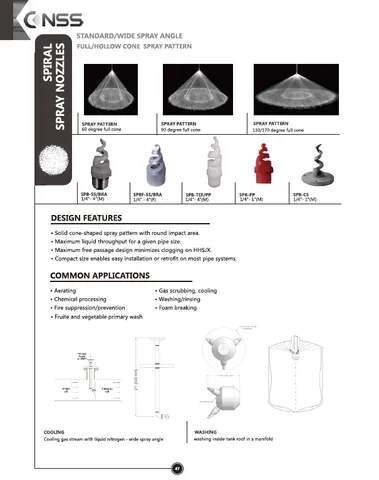

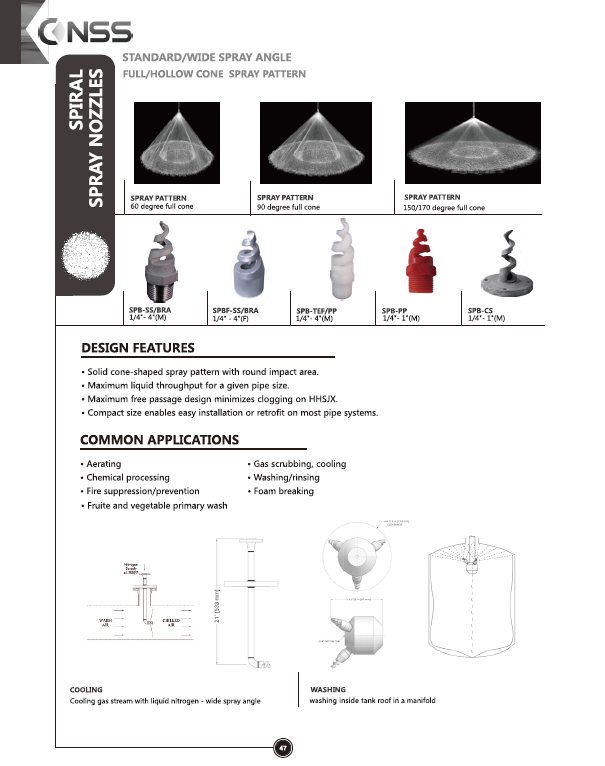

Reference drawings and capacity tables
Original manufacturer drawings for the Spiral nozzle in Brass series.
Others in spiral nozzles
Tell us the duty, not just the part number
Give us flow rate, pressure, spray angle and the liquid, and we will size the nozzle. Drawings and non-standard parts welcome. Samples typically ready within 10 days.
