Misting Nozzles

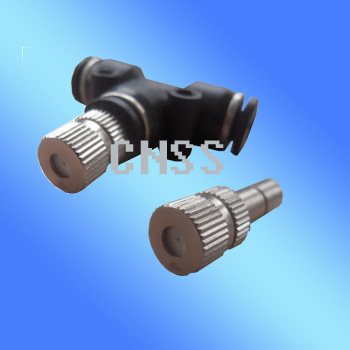

Misting quick connected
Model : QFD Connect type: Quick connected, clip type Material: Brass with nickle-plated
| Series / part | Misting quick connected |
|---|---|
| Category | Misting Nozzles |
| Product family | Misting Systems |
| Materials | Brass |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Anti-drip check valves
- Ruby and stainless orifices
- Slip-lock and threaded
- Oil misting variants
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.

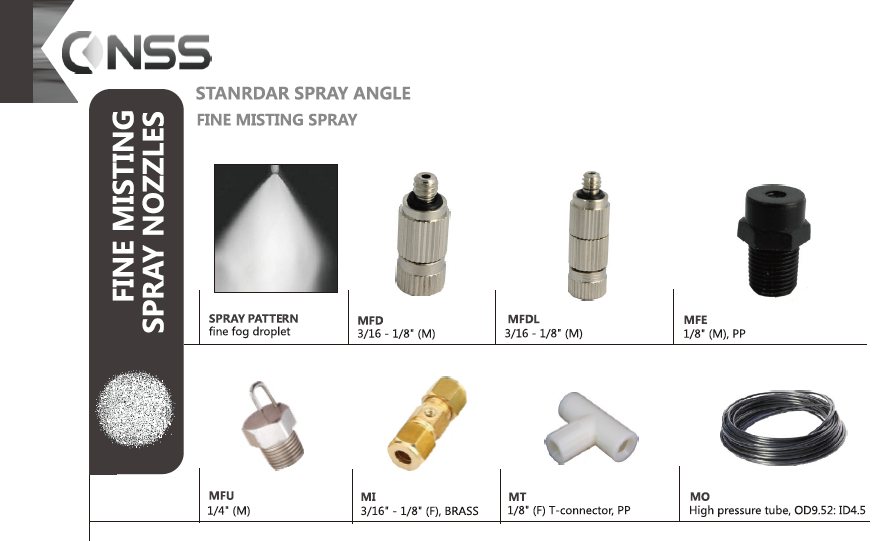

Reference drawings and capacity tables
Original manufacturer drawings for the Misting quick connected series.
Others in misting nozzles
Tell us the duty, not just the part number
Give us flow rate, pressure, spray angle and the liquid, and we will size the nozzle. Drawings and non-standard parts welcome. Samples typically ready within 10 days.
