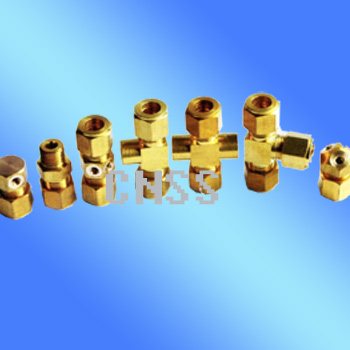

Fog system fittings
Fog system fittings is part of the fittings range from CNSS. Tees, elbows, connectors and adaptors in brass and PP that join tube, nozzles and pump into a complete fog line without improvised parts.
| Series / part | Fog system fittings |
|---|---|
| Category | Fittings |
| Product family | Misting Systems |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Brass and PP options
- Tees, elbows and unions
- Slip-lock and threaded
- Complete system coverage
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.

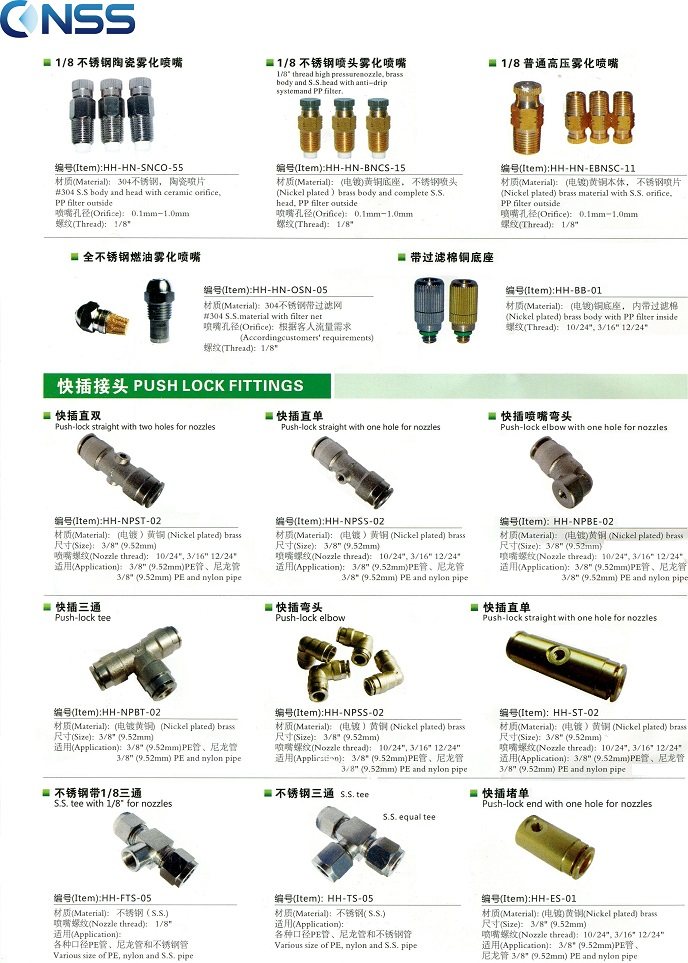

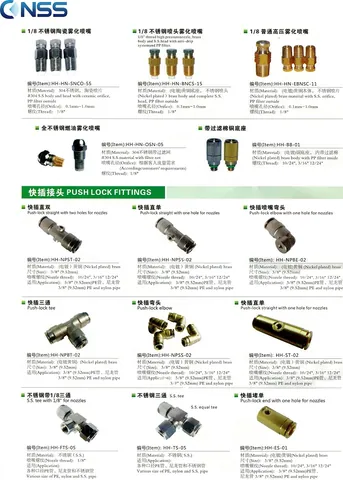

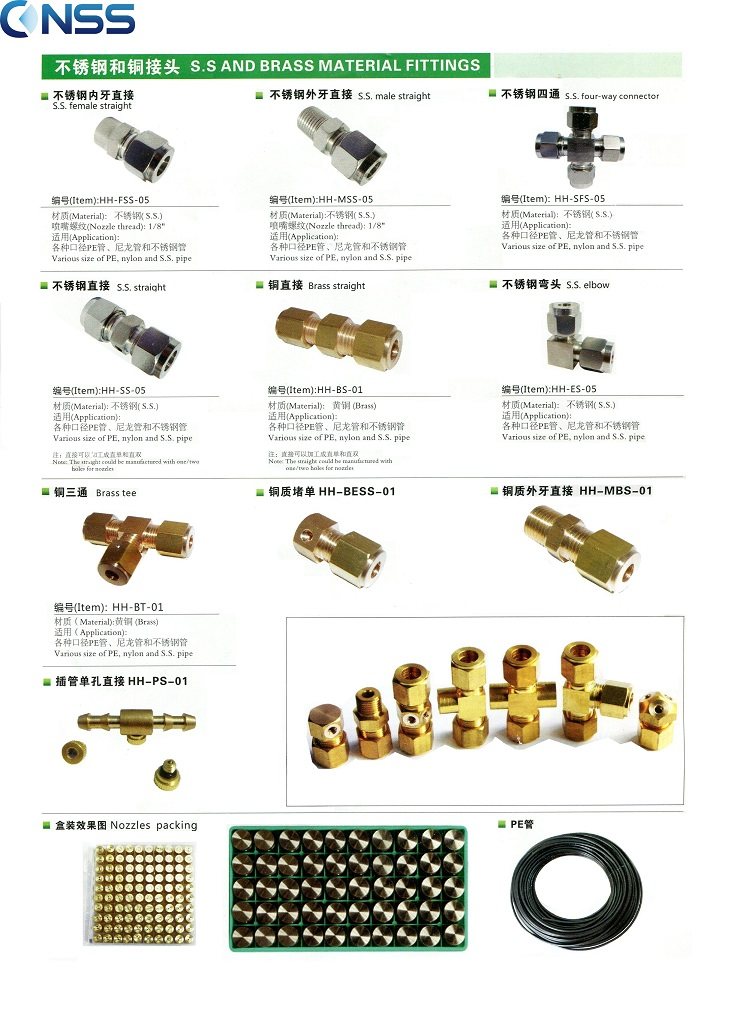

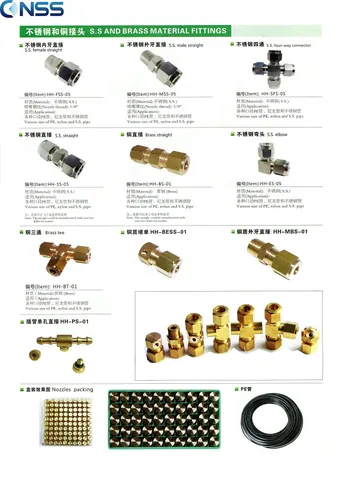

Reference drawings and capacity tables
Original manufacturer drawings for the Fog system fittings series.
Others in fittings
Tell us the duty, not just the part number
Give us flow rate, pressure, spray angle and the liquid, and we will size the nozzle. Drawings and non-standard parts welcome. Samples typically ready within 10 days.
