Clamp Nozzles

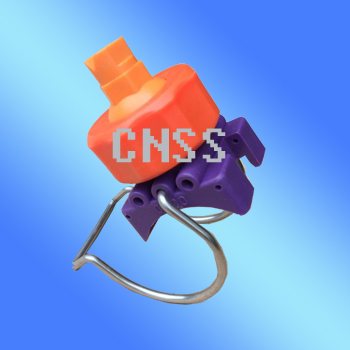

Clip eyelet clamp nozzle
Model: 26988 Clamp nozzle Color: Can be customized. Clamp size: 1" / 1-1/4" / 1-1/2" / 2" Spray tip: full range of flat fan, full cone, and hollow cone.
| Series / part | Clip eyelet clamp nozzle |
|---|---|
| Category | Clamp Nozzles |
| Product family | Common Purpose Nozzles |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Fits round and square pipe
- No welding or drilling
- Adjustable along the header
- Quick-release eyelet types
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.

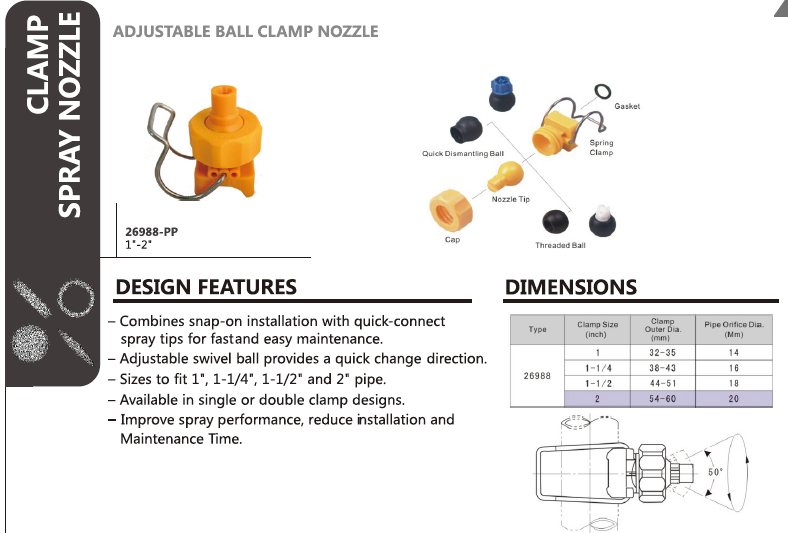

Reference drawings and capacity tables
Original manufacturer drawings for the Clip eyelet clamp nozzle series.
