Hollow Cone Nozzles

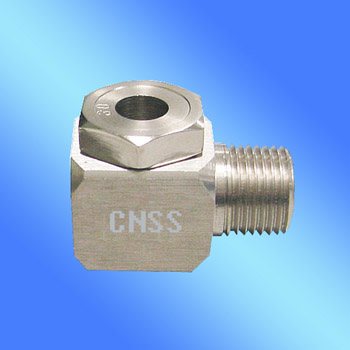

AA
It is whirlchamber design and removable cap type, available in1 / 8″to 3/ 4″NPT or BSPT (Female). Hollow Cone nozzles produce a circular spray where the liquid is distributed around the perimeter or circumference of the circle.
| Series / part | AA |
|---|---|
| Category | Hollow Cone Nozzles |
| Product family | Common Purpose Nozzles |
| Connection | NPT, BSPT / BSP |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- Fine droplet spectrum
- Tangential and whirl-chamber designs
- ABS, brass and stainless bodies
- Clog-resistant free passage
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.

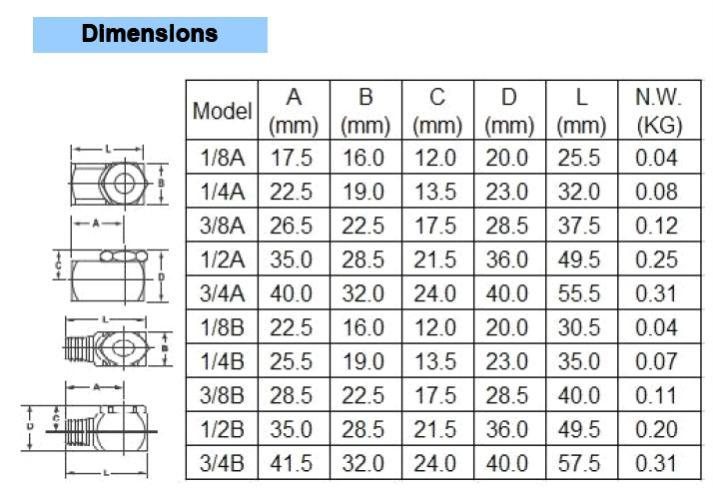

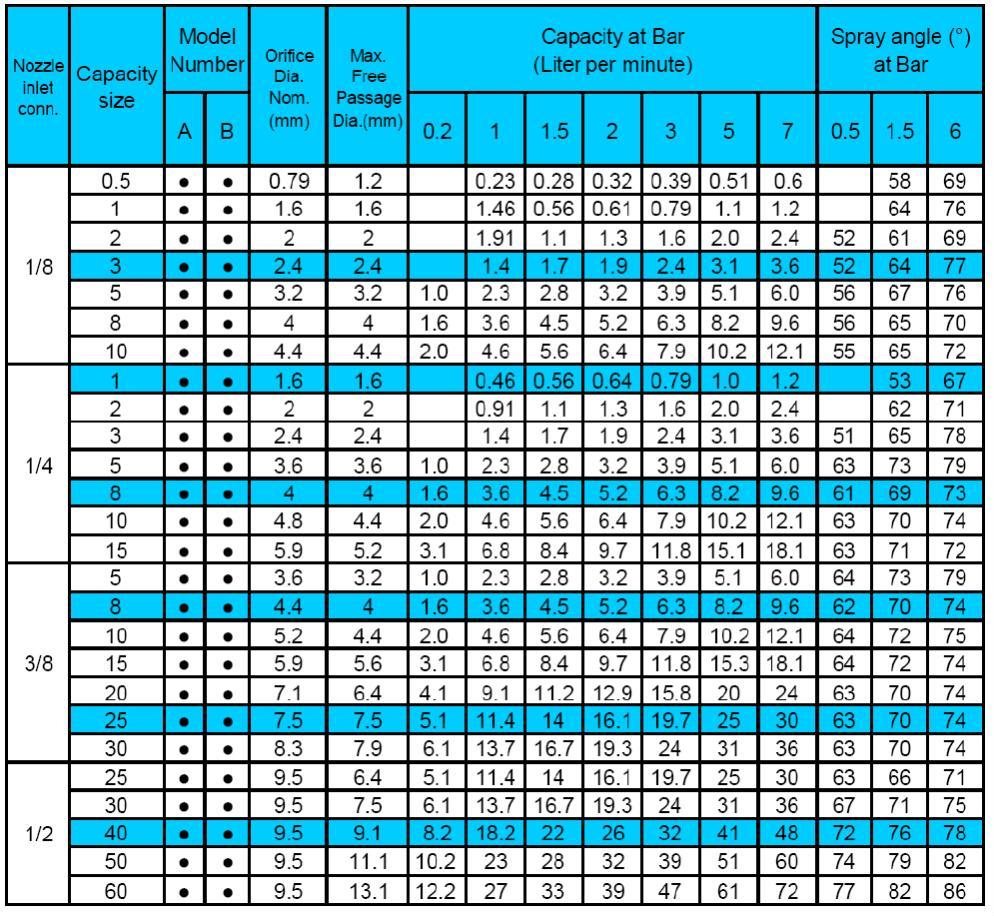

Reference drawings and capacity tables
Original manufacturer drawings for the AA series.
Others in hollow cone nozzles
Tell us the duty, not just the part number
Give us flow rate, pressure, spray angle and the liquid, and we will size the nozzle. Drawings and non-standard parts welcome. Samples typically ready within 10 days.
