High Pressure washing nozzle
High Pressure Washing Nozzles

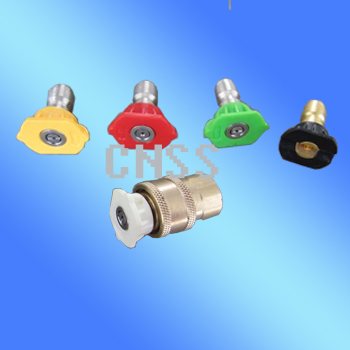

5 Color wash nozzle

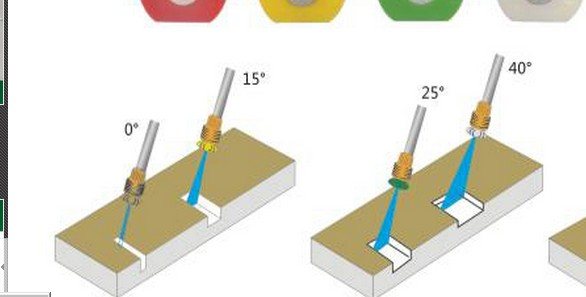

Model: HP-0, HP-15 / HP-25 / HP-40 / HP-B Color: HP-0 : RED . HP-15: YELLOW HP-25: GREEN HP-40: WHITE. HP-B: BLACK (spraying foam) Related: we also have the quick connectors, material is BRASS. Washing pattern as below:
| Series / part | 5 Color wash nozzle |
|---|---|
| Category | High Pressure Washing Nozzles |
| Product family | Special Purpose Nozzles |
| Materials | Brass |
| Manufacture | CNSS, Dongguan — OEM and non-standard variants available |
Typical of this category
- High impact per unit width
- Hardened and ceramic orifices
- Bar and lance mounting
- Stable pattern under pressure
Capacity, spray angle and dimensional tables vary by orifice size. See the reference drawings below, or ask us for the datasheet covering the size you need.
Reference drawings and capacity tables
Original manufacturer drawings for the 5 Color wash nozzle series.
Others in high pressure washing nozzles
Tell us the duty, not just the part number
Give us flow rate, pressure, spray angle and the liquid, and we will size the nozzle. Drawings and non-standard parts welcome. Samples typically ready within 10 days.
