Product Overview

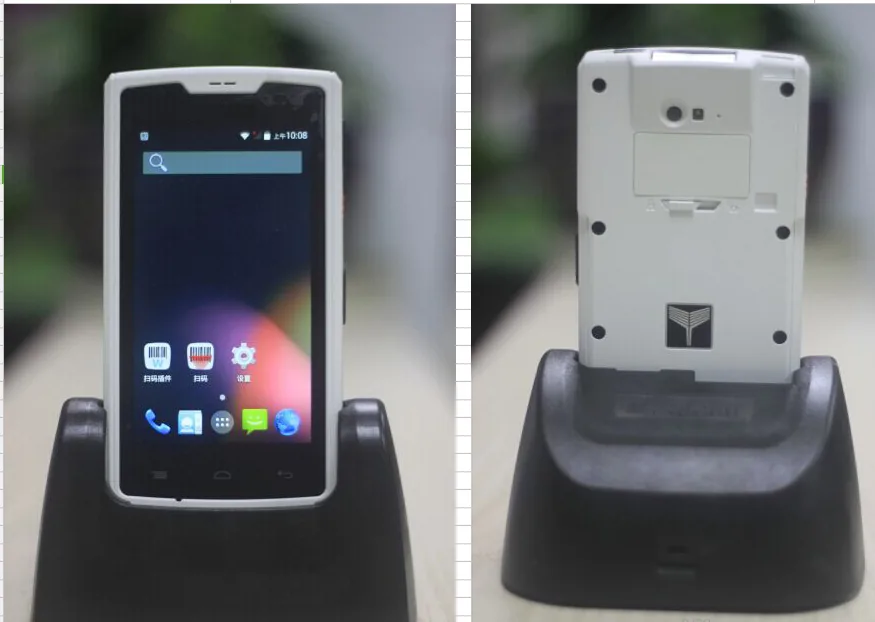

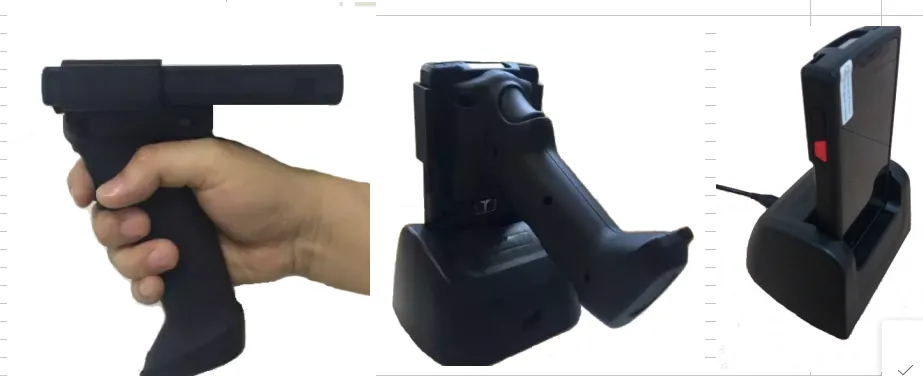

A rugged Android handheld terminal with a 4.5 inch sunlight readable display a 1D and 2D scan engine and an optional pistol grip and charging cradle. The unit is sealed to IP65 and is used for warehouse picking retail stock counts and field service work.
Buyer Fit
Who This Line Suits and What It Solves
Who It Is For
Importers wholesalers retailers and brand owners buying barcode scanner from China who need the specification held and the goods checked before they ship.
The Problem It Solves
Finding a supplier who will hold the agreed specification at your quantity rather than substituting material or packing once production starts.
What You Get
One contact in Guangzhou covering supplier search sample approval production follow up inspection consolidation shipping and after sale claims.
Why Buy Through Us
We work the factories and the Guangzhou wholesale markets directly, in Chinese, and we can stand in front of the goods before they leave.
Customisation
Size colour material packing carton marks and your own logo or artwork applied where the factory can support it.
How to Order
Send the specification and quantity on WhatsApp or by email, approve the sample, and we run the order from there.
Specifications
Technical Data

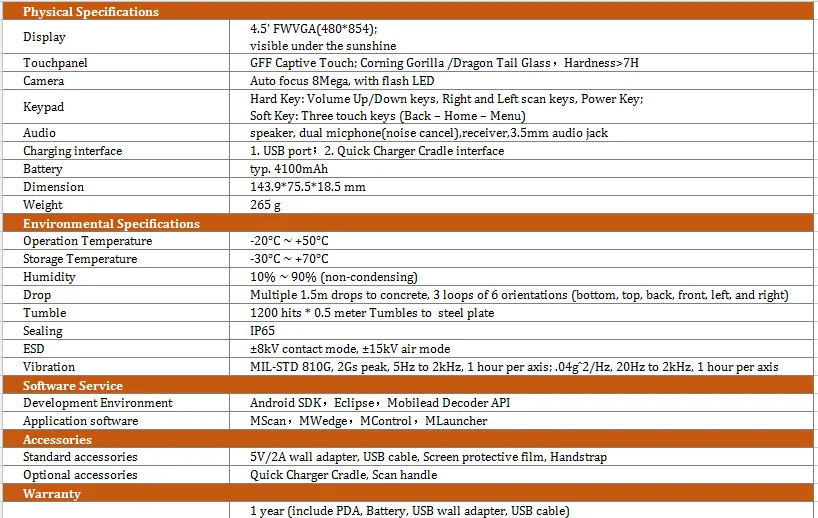

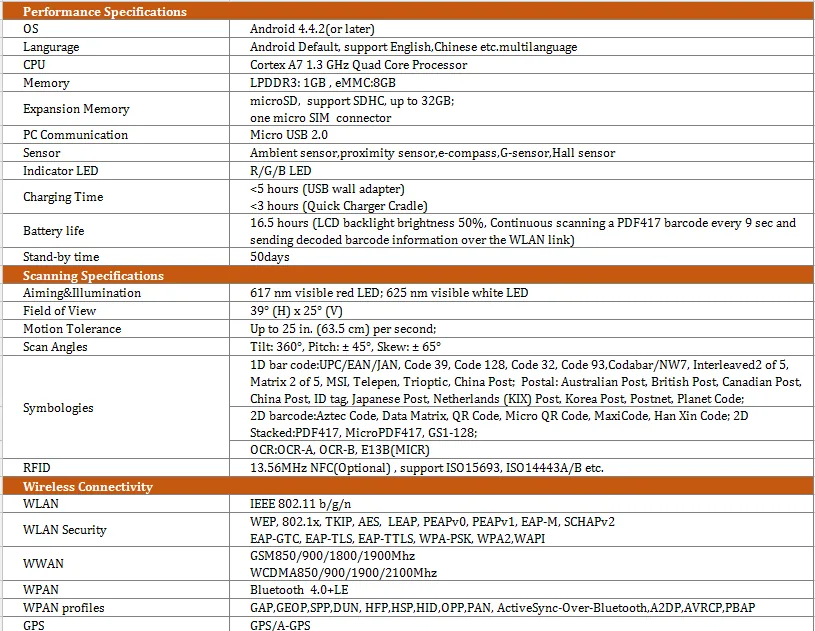

The figures below are taken from the supplier data sheet for this item. Anything not listed is confirmed against the factory offer before quotation.
| Operating System | Android 4.4.2 or later |
|---|---|
| Language | Android default supports English Chinese and other languages |
| CPU | Cortex A7 1.3 GHz quad core |
| Memory | LPDDR3 1 GB and eMMC 8 GB |
| Expansion Memory | microSD supports SDHC up to 32 GB and one micro SIM connector |
| Display | 4.5 inch FWVGA 480 x 854 visible under sunlight |
| Touch Panel | GFF capacitive touch Corning Gorilla or Dragon Tail glass hardness above 7H |
| Camera | Auto focus 8 megapixel with flash LED |
| Battery | Typical 4100 mAh |
| Battery Life | 16.5 hours scanning a PDF417 barcode every 9 seconds at 50 percent backlight |
| Stand By Time | 50 days |
| Charging Time | Under 5 hours with the USB wall adapter and under 3 hours in the quick charger cradle |
| Dimension | 143.9 x 75.5 x 18.5 mm |
| Weight | 265 g |
| Aiming and Illumination | 617 nm visible red LED and 625 nm visible white LED |
| Field of View | 39 degrees horizontal by 25 degrees vertical |
| Motion Tolerance | Up to 25 inches or 63.5 cm per second |
| Symbologies | 1D including UPC EAN JAN Code 39 Code 128 Code 93 Codabar and Interleaved 2 of 5 and 2D including Aztec Data Matrix QR Code Micro QR MaxiCode Han Xin PDF417 and GS1 128 |
| RFID | 13.56 MHz NFC optional supports ISO15693 and ISO14443A and B |
| WLAN | IEEE 802.11 b g n |
| WWAN | GSM 850 900 1800 1900 MHz and WCDMA 850 900 1900 2100 MHz |
| Bluetooth | Bluetooth 4.0 and LE |
| GPS | GPS and A GPS |
| Sealing | IP65 |
| Drop | Multiple 1.5 m drops to concrete 3 loops of 6 orientations |
| Tumble | 1200 hits at 0.5 m onto a steel plate |
| Operating Temperature | Minus 20 to plus 50 degrees Celsius |
| Storage Temperature | Minus 30 to plus 70 degrees Celsius |
| Humidity | 10 to 90 percent non condensing |
| Development Environment | Android SDK Eclipse and Mobilead decoder API |
| Standard Accessories | 5V 2A wall adapter USB cable screen protective film and hand strap |
| Optional Accessories | Quick charger cradle and scan handle |
| Warranty | 1 year covering the terminal battery wall adapter and USB cable |
Detail Views
Supplier Photographs of This Item
All photographs on this page come from the supplier or from our own warehouse. Nothing here is a rendering.
Related
Other Products in This Range
Electronics
Electronic Toothbrush and Waterpick
Sonic toothbrush and cordless oral irrigator set
View Product
Questions
Barcode Scanner Questions
Can you supply this item to my own specification
In most cases yes. Send the size material colour packing and any logo or artwork you want applied and we will confirm it with the factory before quoting.
What is the minimum order quantity
It depends on the factory and the version you want. Tell us the quantity you have in mind and we will tell you which suppliers will accept it.
Can I get a sample first
Yes. Samples are pulled and sent for approval before mass production and the approved sample becomes the reference for the run.
Will the goods be checked before shipment
Yes. Product inspection is part of the standard service and problems are raised with the factory while there is still time to correct them.
Can this ship with other products
Yes. Goods from several factories are gathered at our Guangzhou warehouse, checked and shipped together as one consolidated shipment.
How is the price built up
From the specification the quantity the packing and the delivery terms, plus our service commission of 3 to 7 percent depending on the product and the service.
