Home / Products / Sulzer Projectile Loom Parts / Picking Shoe for PU D1/D2, Picking Link for P7100 D1/D2, Picking Lever, Picking CAM for Sulzer looms
Picking Shoe for PU D1/D2, Picking Link for P7100 D1/D2, Picking Lever, Picking CAM for Sulzer looms
Sulzer Projectile Loom Parts
Picking Shoe for PU D1/D2, Picking Link for P7100 D1/D2, Picking Lever, Picking CAM for Sulzer looms
We supply all kinds of Picking Shoe for PU D1/D2, Picking Link for P7100 D1/D2, Picking Lever, Picking CAM for Sulzer looms.

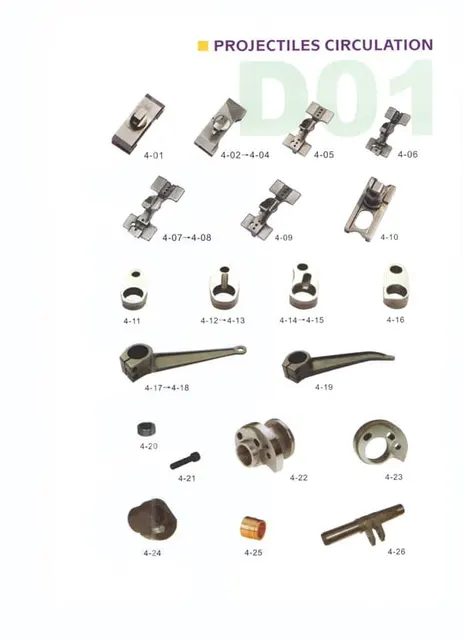

| NO. | P. NO. | DESCRIPTION | MARK |
| 4-01 | 911-122-190 | Picking Shoe | TW |
| 4-02 | 911-322-278 | Picking Shoe | With Nose PU D1 |
| 4-03 | 911-322-275 | Picking Shoe | Without Nose PU D1 |
| 4-04 | 911-322-279 | Picking Shoe | With Nose PU D2 |
| 4-05 | 911-322-539 | Picking Shoe | With Nose P7100 D1 |
| 4-06 | 911-322-966 | Picking Shoe | With Nose Light P7100 D1 |
| 4-07 | 911-322-903 | Picking Shoe | Without Nose P7100 D1 |
| 4-08 | 911-322-966 | Picking Shoe | Without Nose Light P7100 D1 |
| 4-09 | Picking Shoe | With Nose P7100 D2 | |
| 4-10 | 930-122-709 | Picking Shoe | PS |
| 4-11 | 911-122-709 | Picking Link | TW |
| 4-12 | 911-322-147 | Picking Link | PU D1 |
| 4-13 | 911-322-152 | Picking Link | PU D2 |
| 4-14 | 911-322-397 | Picking Link | P7100 D1 |
| 4-15 | Picking Link | P7100 D2 | |
| 4-16 | Picking Link | PS | |
| 4-17 | 911-822-071 | Picking Lever | D: 35 |
| 4-18 | 911-822-065 | Picking Lever | D: 37 |
| 4-19 | Picking Lever | P7200 | |
| 4-20 | 911-722-008 | Push | 3.2/11 X 4 |
| 4-21 | 921-336-300 | Special Screw | M10 X 40 |
| 4-22 | 911-322-227 | Picking CAM | PU |
| 4-23 | 911-322-928 | Picking CAM | P7100 |
| 4-24 | 911-822-057 | Tension Flange | |
| 4-25 | 911-722-009 | Bearing Bush | |
| 4-26 | 911-322-412 | Picking Shaft |
| Part name | Picking Shoe for PU D1/D2, Picking Link for P7100 D1/D2, Picking Lever, Picking CAM for Sulzer looms |
|---|---|
| Category | Sulzer Projectile Loom Parts |
| Supplier | Beijing Huaxiatex Co. LTD., Beijing, China |
| Price | Quoted per enquiry |
| Loom model fit | Confirmed by us against your loom brand and model |
| Delivery | Shipped from Beijing to customers worldwide |
Only the information we actually hold for this part is shown above. Anything else is confirmed with you by message rather than estimated here.
Supplied By Huaxiatex
Beijing Huaxiatex Co. LTD. is engaged in supplying all kinds of spare parts for the world name brand Rapier looms (SOMET, PICANOL, VAMATEX, SULZER, DORNIER, PANTER, etc.), Air-jet looms (PICANOL, SOMET, TOYOTA, TSUDAKOMA, etc.), J…
What To Send Us
The part name from this page, your loom brand and model, the quantity you need and the destination country. That is enough for a quotation.
Reach Us
WhatsApp and WeChat 0086-18910628679
Email [email protected]
Working hours 08:00 - 17:00
FAQ
Questions About This Part
How Do I Get a Price For This Part
Send the part name shown on this page by WhatsApp on 0086-18910628679 or by email to [email protected]. Prices are quoted per enquiry.
Will It Fit My Loom
Tell us the loom brand and model when you write. We check the part against the machine before quoting, rather than assuming the fit from the part name alone.
Are Dimensions and Part Numbers Available
Whatever we hold for this item is shown in the description on this page. Anything not shown here is confirmed by email so that no figure is guessed.
Do You Ship Outside China
Yes. Beijing Huaxiatex Co. LTD. is based in Beijing and supplies customers worldwide.
