Selector, Scissor driven from fame, selector shaft for Suler looms
Sulzer Projectile Loom Parts
Selector, Scissor driven from fame, selector shaft for Suler looms

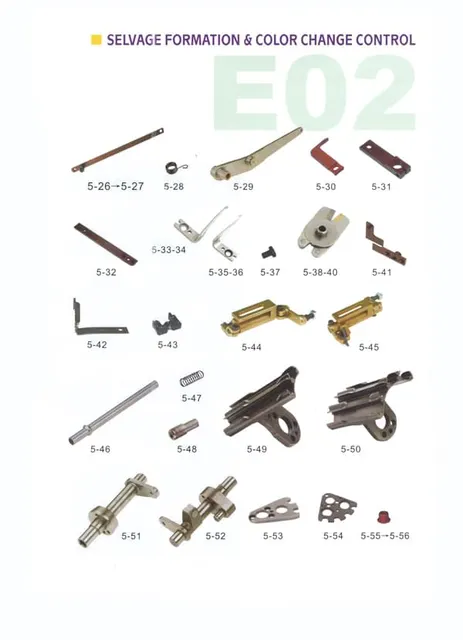

Selector, Scissor driven from fame, selector shaft for Suler looms.
| NO. | P. NO. | DESCRIPTION | MARK |
| 5-26 | 911-159-174 | Rivet Bolt | SU |
| 5-27 | 911-159-176 | Rivet Bolt | FA |
| 5-28 | 911-232-229 | Torsion Spring | |
| 5-29 | 911-859-208 | Roller Lever For Axie Stud | |
| 5-30 | 911-359-106 | Opener Shoe | SU/FA |
| 5-31 | 911-159-296 | Ledge Rod Lever | |
| 5-32 | 912-559-169 | Tucking Unit Bar | |
| 5-33 | 911-659-004 | Tucking Needle | SU D1 |
| 5-34 | 911-132-298 | Tucking Needle | SU D2 |
| 5-35 | 911-659-005 | Tucking Needle | FA D1 |
| 5-36 | 911-132-299 | Tucking Needle | FA D2 |
| 5-37 | 911-232-132 | Screw | M5 X 0.5 X 10 |
| 5-38 | 911-820-015 | Scissor | D1 1.2&1.6&1.7 |
| 5-39 | 911-820-004 | Scissor | D2 1.2&1.6&1.7 |
| 5-40 | Scissor | Grooved 1.6&1.7 | |
| 5-41 | 912-520-076 | ||
| 5-42 | 911-816-055 | Proj. end Position Brake incl. | |
| 5-43 | 911-316-803 | Proj. end position brake | |
| 5-44 | 912-538-027 | Scissor Driven From Frame | SU |
| 5-45 | 912-538-028 | Scissor Driven From Frame | FA |
| 5-46 | 911-341-257 | Thread Tube | |
| 5-47 | 911-141-627 | Spring | 0.9/10.3X31 |
| 5-48 | 911-341-136 | Pressure Piece | 4.5/10.5X26.45 |
| 5-49 | 911-840-146 | Selector Two Color | |
| 5-50 | 911-841-234 | Selector Four Color | |
| 5-51 | 911-740-013 | Selector Shaft | |
| 5-52 | 917-840-119 | Selector Shaft | |
| 5-53 | 911-740-017 | Fixing Plate Two Color | |
| 5-54 | 917-750-670 | Fixing Plate Four Color | |
| 5-55 | Eyelet | 8X5.5X4 | |
| 5-56 | Eyelet | 12X7.8X10 |
| Part name | Selector, Scissor driven from fame, selector shaft for Suler looms |
|---|---|
| Category | Sulzer Projectile Loom Parts |
| Supplier | Beijing Huaxiatex Co. LTD., Beijing, China |
| Price | Quoted per enquiry |
| Loom model fit | Confirmed by us against your loom brand and model |
| Delivery | Shipped from Beijing to customers worldwide |
Only the information we actually hold for this part is shown above. Anything else is confirmed with you by message rather than estimated here.
Supplied By Huaxiatex
Beijing Huaxiatex Co. LTD. is engaged in supplying all kinds of spare parts for the world name brand Rapier looms (SOMET, PICANOL, VAMATEX, SULZER, DORNIER, PANTER, etc.), Air-jet looms (PICANOL, SOMET, TOYOTA, TSUDAKOMA, etc.), J…
What To Send Us
The part name from this page, your loom brand and model, the quantity you need and the destination country. That is enough for a quotation.
Reach Us
WhatsApp and WeChat 0086-18910628679
Email [email protected]
Working hours 08:00 - 17:00
FAQ
Questions About This Part
How Do I Get a Price For This Part
Send the part name shown on this page by WhatsApp on 0086-18910628679 or by email to [email protected]. Prices are quoted per enquiry.
Will It Fit My Loom
Tell us the loom brand and model when you write. We check the part against the machine before quoting, rather than assuming the fit from the part name alone.
Are Dimensions and Part Numbers Available
Whatever we hold for this item is shown in the description on this page. Anything not shown here is confirmed by email so that no figure is guessed.
Do You Ship Outside China
Yes. Beijing Huaxiatex Co. LTD. is based in Beijing and supplies customers worldwide.
