ZH-BS-BL-01 is listed in the vacuum ejectors section of the Betre catalogue under the ZH Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

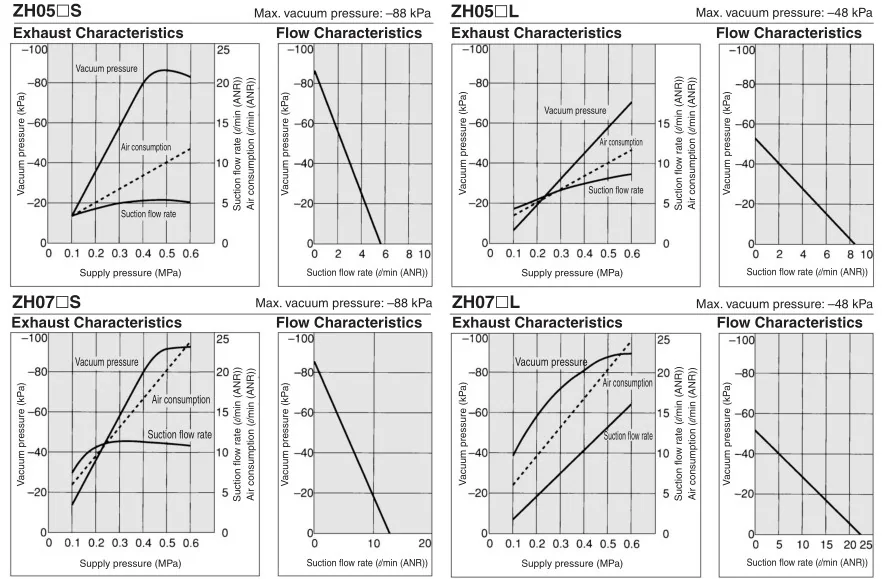

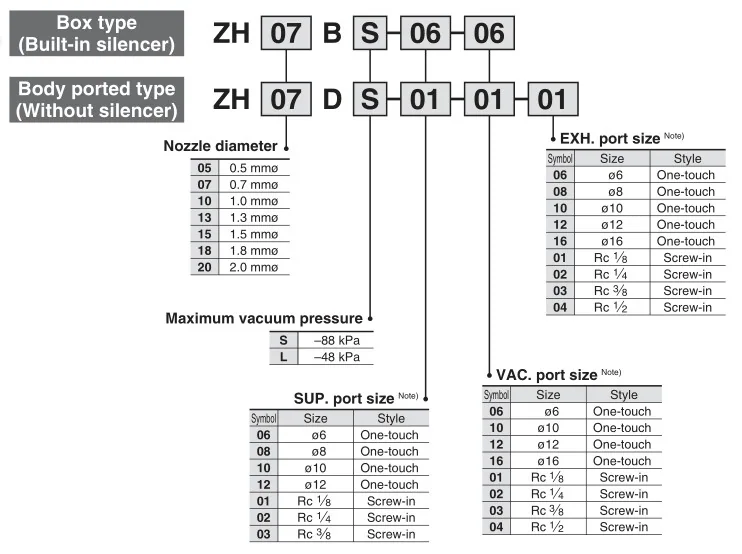

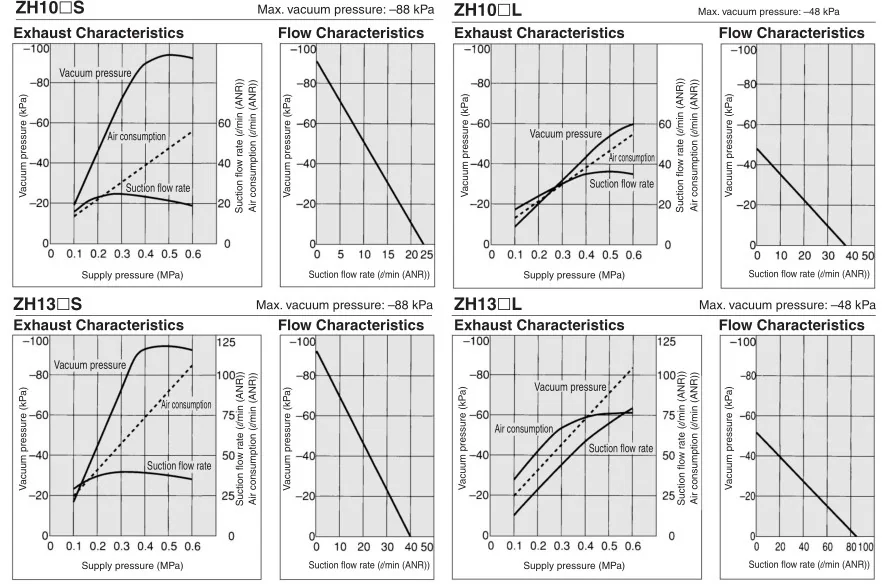

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Body type | No. | SUP | VAC | EXH |
| Box type (Built-in silencer) | 1 | One-touch | One-touch | ---- |
| 2 | One-touch | Screw-in | ---- | |
| 3 | Screw-in | Screw-in | ---- | |
| Body ported type (Without silencer) | 1 | One-touch | One-touch | One-touch |
| 2 | One-touch | Screw-in | One-touch | |
| 3 | Screw-in | Screw-in | Screw-in |
| Model | Connection(One-touch/Screw-in) | ||
| SUP | VAC | EXH | |
| ZH05B | Φ6/Rc1/8 | Φ6/Rc1/8 | ---- |
| ZH07B | |||
| ZH10B | |||
| ZH13B | Φ8/Rc1/8 | Φ10/Rc1/4 | |
| ZH05D | Φ6/Rc1/8 | Φ6/Rc1/8 | Φ6/Rc1/8 |
| ZH07D | |||
| ZH10D | Φ6/Rc1/8 | Φ6/Rc1/8 | Φ8/Rc1/8 |
| ZH13D | Φ8/Rc1/8 | Φ10/Rc1/4 | Φ10/Rc1/4 |
| ZH15D | Φ10/Rc1/4 | Φ12/Rc3/8 | Φ12/Rc3/8 |
| ZH18D | Φ12/Rc3/8 | ||
| ZH20D | Φ12/Rc3/8 | Φ16/Rc1/2 | Φ16/Rc1/2 |
| Model | Nozzle Dia.(mm) | Body Type | Max.Vacuum Pressure(kPa) | Max.Suction Flow Rate(L/min) | Air Consumption (L.min) | Supply Pressure (MPa) | ||
| Type S | Type L | Type S | Type L | Type S/L | ||||
| ZH05B□ | 0.5 | Box type(Built-in silencer) | -88 | -48 | 5 | 8 | 13 | 0.45 |
| ZH07B□ | 0.7 | 12 | 20 | 23 | ||||
| ZH10B□ | 1.0 | 24 | 34 | 46 | ||||
| ZH13B□ | 1.3 | 40 | 70 | 78 | ||||
| Model | A | B | C | D | E | F | G | H | I | J | ΦK | L | M | ΦN | O | P |
| ZH05BS-01-01 | 67.5 | Rc1/8 | 29.5 | 16 | 12 | 28 | 5 | 47 | 57 | 12 | 3.2 | 31.5 | Rc1/8 | 5.8 | 2 | 38.5 |
| ZH05BL-01-01 | 67.5 | Rc1/8 | 29.5 | 16 | 12 | 28 | 5 | 47 | 57 | 12 | 3.2 | 31.5 | Rc1/8 | 5.8 | 2 | 38.5 |
| ZH07BS-01-01 | 67.5 | Rc1/8 | 29.5 | 16 | 12 | 28 | 5 | 47 | 57 | 12 | 3.2 | 31.5 | Rc1/8 | 5.8 | 2 | 38.5 |
| ZH07BL-01-01 | 67.5 | Rc1/8 | 29.5 | 16 | 12 | 28 | 5 | 47 | 57 | 12 | 3.2 | 31.5 | Rc1/8 | 5.8 | 2 | 38.5 |
| ZH10BS-01-01 | 70.5 | Rc1/8 | 30.5 | 18 | 12 | 29 | 5 | 50 | 60 | 12 | 3.2 | 33.5 | Rc1/8 | 5.8 | 2 | 39.5 |
| ZH10BL-01-01 | 70.5 | Rc1/8 | 30.5 | 18 | 12 | 29 | 5 | 50 | 60 | 12 | 3.2 | 33.5 | Rc1/8 | 5.8 | 2 | 39.5 |
| ZH13BS-01-02 | 86.5 | Rc1/8 | 39 | 23 | 14 | 35 | 7 | 61 | 75 | 17 | 4.2 | 36.5 | Rc1/4 | 7.5 | 3 | 50 |
| ZH13BL-01-02 | 86.5 | Rc1/8 | 39 | 23 | 14 | 35 | 7 | 61 | 75 | 17 | 4.2 | 36.5 | Rc1/4 | 7.5 | 3 | 50 |
Other parts from the same ZH Series range, usually quoted alongside this one.
ZH-BS-BL-01 sits in the Vacuum Ejectors category of the Betre catalogue, under the ZH Series series.
