CCV-04 is listed in the vacuum ejectors section of the Betre catalogue under the CV Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

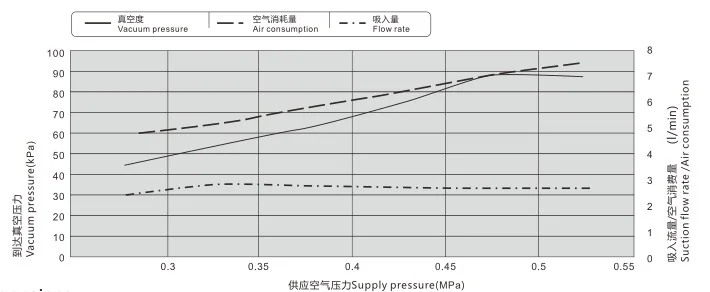

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model | CCV-04 |
| Fluid | Air |
| Ambient & Fluid Temperature | 0~60℃(No Freezing) |
| Operating Pressure Range | 0.3~0.6MPa |
| Nozzle Dia. | Φ0.4mm |
| Rated Pressure | 0.5MPa |
| Max.Suction Flow Rate | 2.5L/min |
| Max.Vacuum Pressure | -85kPa |
| Air Comsumption | 7.1L/min |
| Weight | 10g |
Other parts from the same CV Series range, usually quoted alongside this one.
CCV-04 sits in the Vacuum Ejectors category of the Betre catalogue, under the CV Series series.
Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.
Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.
Yes. We do the inspection for all the products before delivery.
Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
