ZFC Series

ZFC54

ZFC54 is listed in the vacuum and air filters section of the Betre catalogue under the ZFC Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

Category: Vacuum And Air Filters
Series: ZFC Series
Manufacturer: YUEQING BETRE AUTOMATION CO., LTD.
Made In: Yueqing, Zhejiang, China
Production Since: 2002

Request A Quote Talk To An Engineer Request A Sample

Specifications And Dimensions

The tables and drawings below are reproduced from the Betre product catalogue for this model.

In-line Air Filter Series ZFC

Characteristic

Space-saving, light weight.
Built-in One-touch fitting.
Element can be replaced.
Easy element replace procedure.
In-line style, easy installation.
Standard with Bracket.

Specification

Fluid	Air
Operating pressure	0.1MPa~-100 kPa
Burst pressure	1.5 MPa
Operating and ambient temperature range	0~60℃
Filtration degree	5 µm

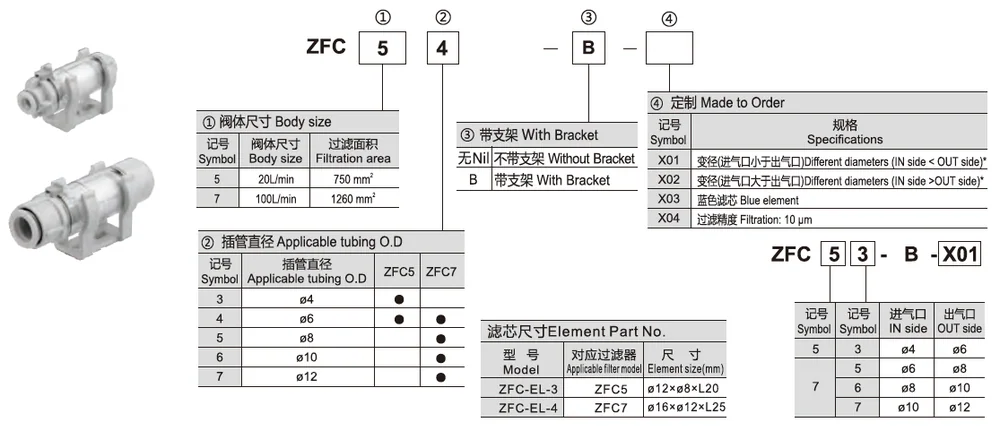

How to Order

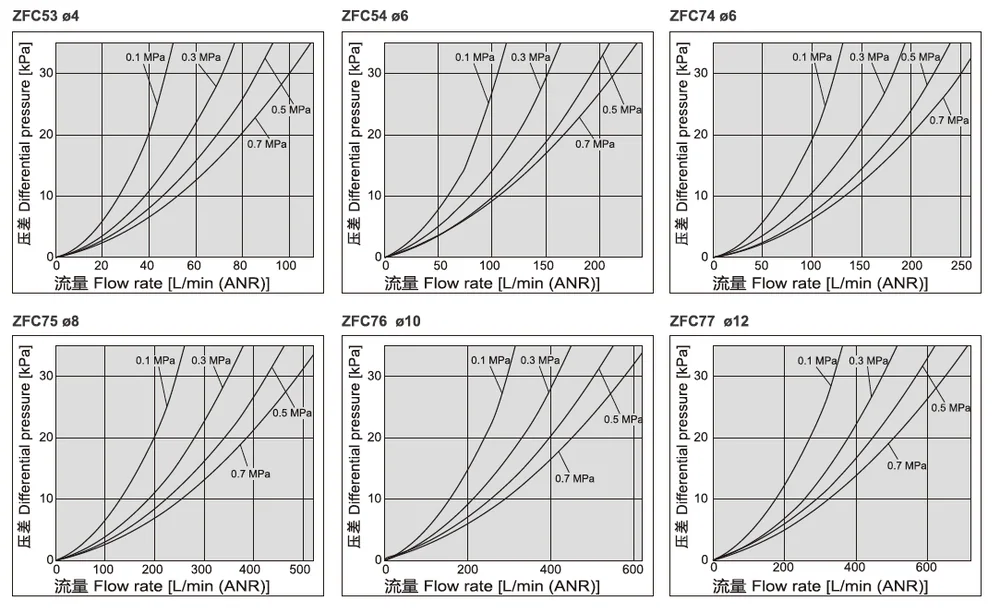

Flow Characteristics

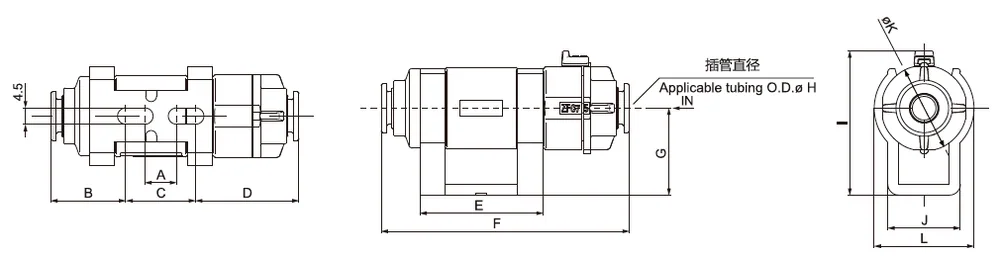

Dimension

Model	A	B	C	D	E	F	G	H	I	J	K	L
ZFC53-B	6.4	15.7	13.5	24.7	30	53.9	20	Ø4	33.4	18	19	23
ZFC54-B	6.4	15.7	13.5	24.7	30	53.9	20	Ø6	33.4	18	19	23
ZFC74-B	8.7	20.7	19.2	28.5	34	68.4	24	Ø6	39.8	20	23.6	27.3
ZFC75-B	8.7	20.7	19.2	28.5	34	68.4	24	Ø8	39.8	20	23.6	27.3
ZFC76-B	8.7	26.7	19.2	33.8	34	79.7	24	Ø10	39.8	20	23.6	27.3
ZFC77-B	8.7	26.7	19.2	33.8	34	79.7	24	Ø12	39.8	20	23.6	27.3

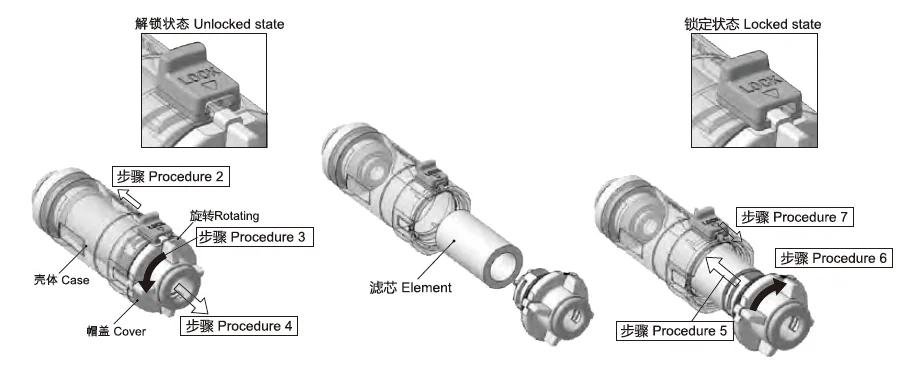

Element Replacement

1. Stop operation and reduce the filter's internal pressure to atmosphere.
2. Slide the lock mechanism in the direction of the arrow to release the lock.
3. Rotate the cover counterclockwise at least 90 degrees.
4. Pull cover A out of the case to remove the element. Remove dust and other debris remaining inside the case by blowing it out with air, etc. (Also confirm that the O-ring is not damaged.)
5. Install a new element on cover and insert it into the case.
6.Align the raised part of the cover with the model no. display of the body and push the cover to the end of the body and rotate it clockwise until it stops
7. Set the lock mechanism and check that the cover is locked completely.
Dimension drawing

Related Models

Other parts from the same ZFC Series range, usually quoted alongside this one.

ZFC SeriesZFC100-04

All Vacuum And Air Filters Models

Questions About ZFC54

Which Category Does ZFC54 Belong To

ZFC54 sits in the Vacuum And Air Filters category of the Betre catalogue, under the ZFC Series series.

Can ZFC54 Be Made To A Custom Specification

Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.

How Do I Order ZFC54

Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.

Are Products Inspected Before Shipping

Yes. We do the inspection for all the products before delivery.

Which Markets Do You Supply

Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
