ZFC100-04 is listed in the vacuum and air filters section of the Betre catalogue under the ZFC Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.
The tables and drawings below are reproduced from the Betre product catalogue for this model.
*An in-line type air suction filter that prevents trouble in vacuum equipment due to contaminants in the air.
*IN/OUT straight piping Saves space with space efficient straight piping
*Applicable tubing sizes: Metric sizes (Release bushing: light gray) ø4, ø6, ø8
*One-touch fittings for easy installation and removal. Piping tube can be connected or disconnected with one touch.
*Light weight molded resin parts.
*Cartridge type allows element replacement.
*The cover can be opened with one touch to allow quick replacement without tools while still connected to piping.

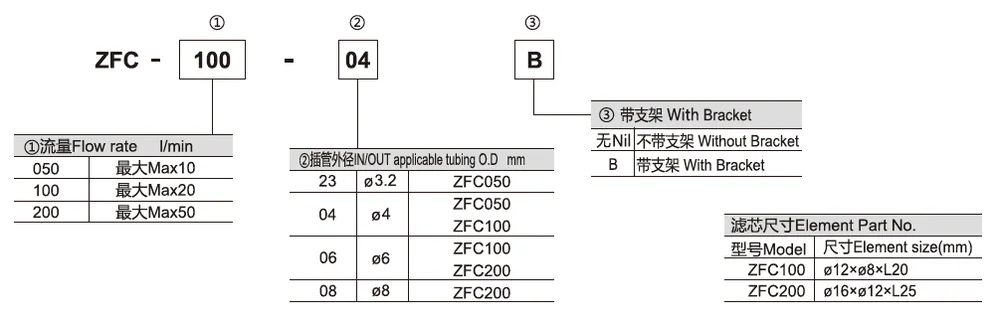

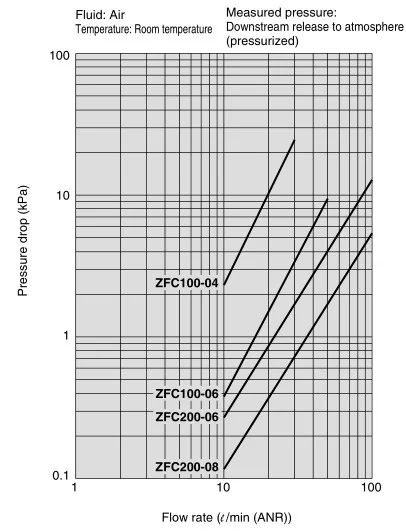

| Model | Port Size (Applicable tubing O.D.) | Recommended Flow Rate (L/min) | Note | |
| IN side, OUT side | ||||
| Metric Size | ZFC100-04 | Ø4 | 10 | Flow Rate when initial pressure drop is 3kPa or less |
| ZFC100-06 | Ø6 | 20 | ||
| ZFC200-06 | Ø6 | 30 | ||
| ZFC200-08 | Ø8 | 50 | ||
| Fluid | Air, Nitrogen |
| Operating Pressure | -100~0kPa |
| Burst Pressure | 0.5MPa |
| Operating & Ambient Temperature Range | 0 to 60°C (No freezing) |
| Filtration degree | 10 µm |
| Element differential pressure resistance | 0.15 MPa |
| Applicable tubing material | Nylon, Soft nylon, Polyurethane, Soft polyurethane |
| Note | Do not use in a line where a pressurized condition is maintained since the body may be damaged. |
| Model | A | B | C | D | E | ØF | ØG | ØH | I | J | K | L |
| ZFC050-23 | 58 | 12.5 | 33 | 12.5 | 25 | 10 | - | 10.5 | 12 | 8.5 | 13.8 | 3.2 |
| ZFC050-04 | 4 | |||||||||||
| ZFC100-04 | 53.2 | 9.1 | 30 | 14.1 | 10 | 18 | 11.6 | 19.5 | 23 | 20 | 29 | 4 |
| ZFC100-06 | 6 | |||||||||||
| ZFC200-06 | 67 | 15.5 | 34 | 17.5 | 14 | 22 | 15.6 | 23.1 | 27 | 24 | 35 | 6 |
| ZFC200-08 | 8 |
1. Stop operation and reduce the filter's internal pressure to atmosphere.
2. Turn cover A counterclockwise until it stops (approx. 45°).
3. Pull cover A out of the case to remove the element. Remove dust and other debris remaining inside the case by blowing it out with air, etc. (Also confirm that the O-ring is not damaged.)
4. Install a new element on cover A and insert it into the case.
5. After aligning the projections (2 places) on cover A with the grooves in the case, push cover A in and turn it clockwise until it
stops (approx. 45°) (Confirm that the projections on cover A can be seen completely through the windows in the case.)
6. Restart operation.
