SHAKO Type UL Series is listed in the air source treatment section of the Betre catalogue under the Shako Type series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

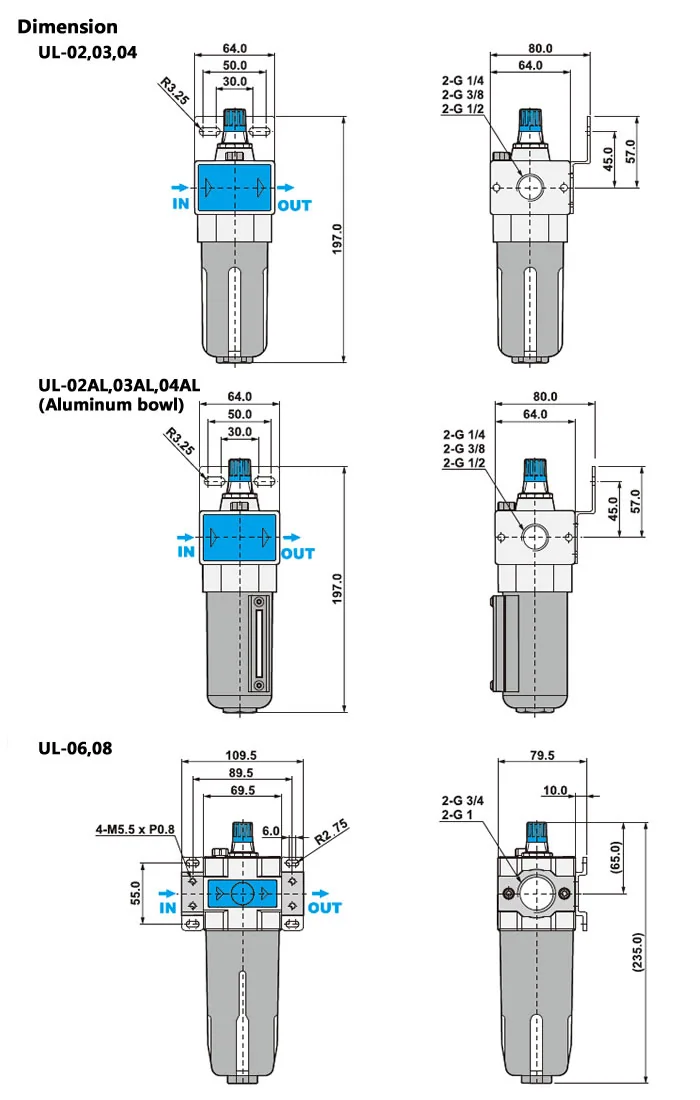

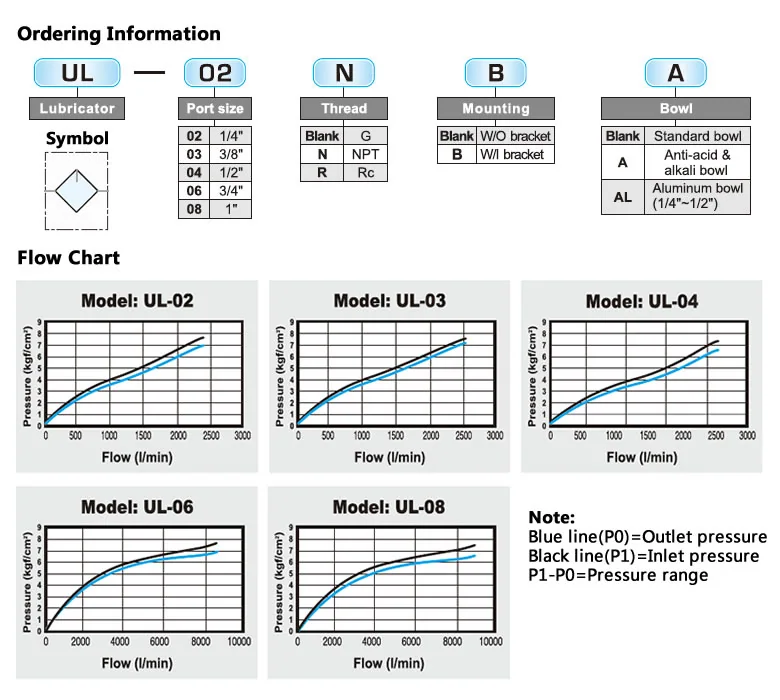

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model | UL-02 | UL-03 | UL-04 | UL-06 | UL-08 | ||
| Port size | 1/4" | 3/8" | 1/2" | 3/4" | 1" | ||
| Fluid | Compressed air | ||||||
| Body material | Aluminum die-cast | ||||||
| Bowl material | Polycarbonate(Standard),Anti-acid & alkali bowl (Option), Aluminum bowl(Option) | ||||||
| Operating pressure range | 0.5~10kgf/cm² | ||||||
| Proof pressure (Standard bowl) | 15kgf/cm² | ||||||
| Max.flow rate l/min(ANR) | 2490 | 2525 | 4310 | 8400 | 9000 | ||
| Ambient temperature | -10℃~60℃ | ||||||
| Lubricator oil (Recommended) | ISO~VG32 | ||||||
| Lubricator bowl capacity | 125cc | 235cc | |||||
| Net weight | 500g(W/I Aluminum bowl 800g) | 1095g | |||||
