SHAKO Type UFR、L Series is listed in the air source treatment section of the Betre catalogue under the Shako Type series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

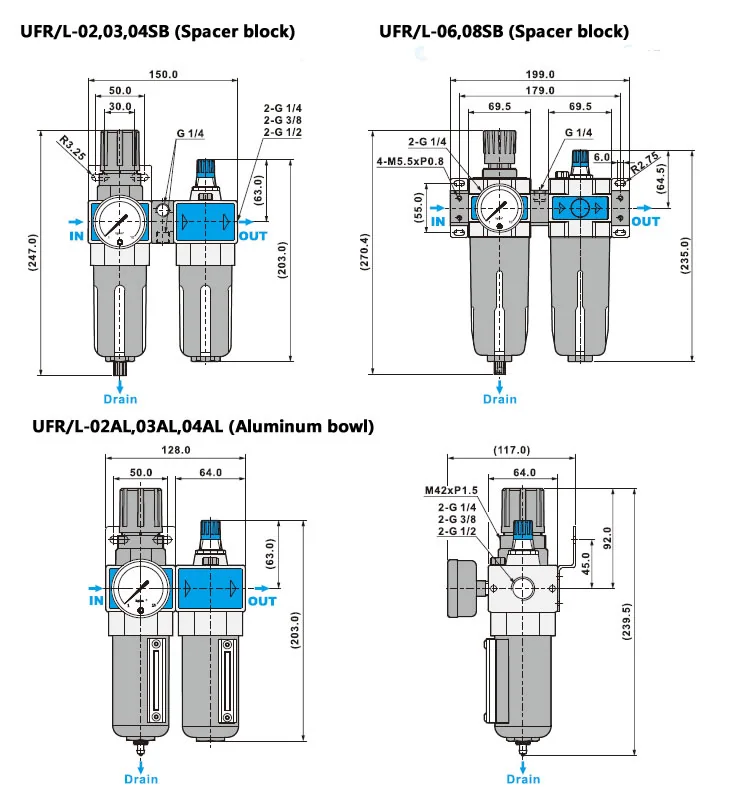

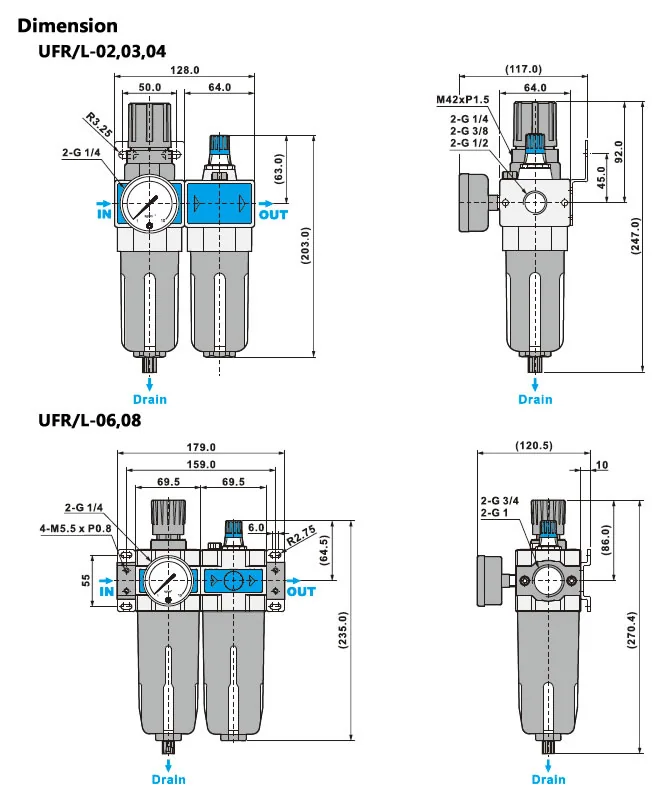

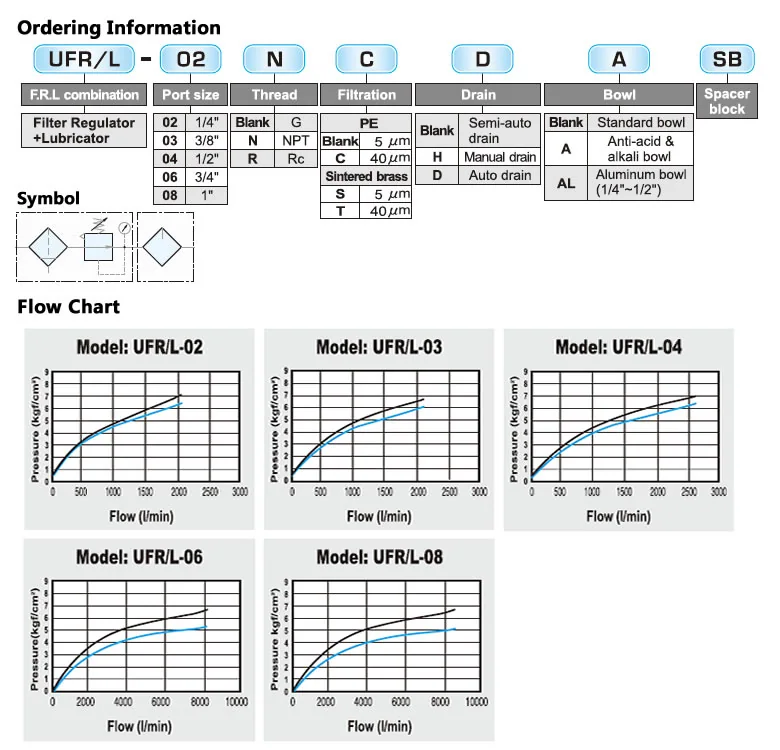

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model | UFR/L-02 | UFR/L-03 | UFR/L-04 | UFR/L-06 | UFR/L-08 | ||
| Port size | 1/4" | 3/8" | 1/2" | 3/4" | 1" | ||
| Fluid | Compressed air | ||||||
| Regulator construction | Piston | ||||||
| Body material | Aluminum die-cast | ||||||
| Bowl material |
Polycarbonate(Standard),Anti-acid & alkali bowl (Option), Aluminum bowl(Option) |
||||||
| Filteration |
PE:5µm(Standard),40µm(Option) Sintered brass(Option):5µm,40µm |
||||||
| Operating pressure range | 0.5~10kgf/cm² | ||||||
|
Proof pressure (Standard bowl) |
15kgf/cm² | ||||||
| Max.flow rate l/min(ANR) | 2080 | 2100 | 2600 | 7940 | 8200 | ||
| Ambient temperature | -10℃~60℃ | ||||||
| Lubricator oil (Recommended) | ISO~VG32 | ||||||
| Filter bowl capacity | 105cc | 210cc | |||||
| Lubricator bowl capacity | 125cc | 235cc | |||||
| Standard drain | Semi-auto drain(Drains below 0.5kfg/cm²) | ||||||
| Net weight | 1480g(W/I Aluminum bowl 1780g) | 2145g | |||||
| Accessories | Pressure gauge, Mounting bracket,Plug,Screw×4 | ||||||
