Air Valve Basic Valves (Push Button Type Valves) Series TAC is listed in the pneumatic valves section of the Betre catalogue under the Mechanical Valve series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

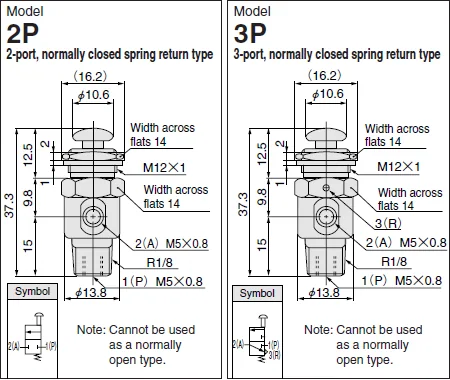

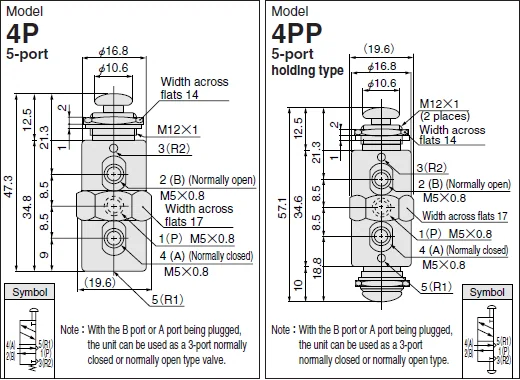

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Model | 2P | 3P | 4P | 4PP | |||||||
| Operation type | Push button spring return | Double push button holding type | |||||||||
| Number of ports | 2(Normally closed) | 3(Normally closed) | 5 | ||||||||
| Port size | M5×0.8 | ||||||||||
| Media | Air | ||||||||||
| Operating pressure range | 0~0.9MPa (0~9.2kgf/cm²) (0~131psi.) | ||||||||||
| Proof pressure | 1.35MPa (13.8kgf/cm²) (196psi.) | ||||||||||
| Operating temperature range (atmosphere and media) | 0~60℃ (32~140℉) | ||||||||||
| Effective area | 1.8mm² | 2.5mm² | |||||||||
| Flow coefficient | 0.08Cv | 0.12Cv | |||||||||
| Mounting direction | Any | ||||||||||
| Maximum operating frequency | 5Hz | ||||||||||
| Valve stroke |
2.4mm(0.094in.) [Pre-stroke:0.8mm(0.031in.) Main stroke:0.8mm(0.031in.) Over stroke:0.8mm(0.031in.)] |
||||||||||
| Lubrication | Required {Turbine Oil Class 1 [ISO VG32] or equivalent} | ||||||||||
| Mass | 35g(1.23oz.) | 30g(1.06oz.) | 66g(2.33oz.) | 71g(2.50oz.) | |||||||
| Standard accessories |
Lock nut (110-21A) |
1 pc. each | 2 pcs. each | ||||||||
|
Lock washer (100-35) |
|||||||||||
