3A is listed in the pneumatic valves section of the Betre catalogue under the 3A And 4A Series series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.
The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Fluid | Air |
| Applicable pressure range | 0.15~0.8MPa |
| Proof pressure | 1.2MPa |
| Ambient and fluid temperature | 5~60℃ |
| Lubrication | Needless |
| Max.action frequency | 5Hz |

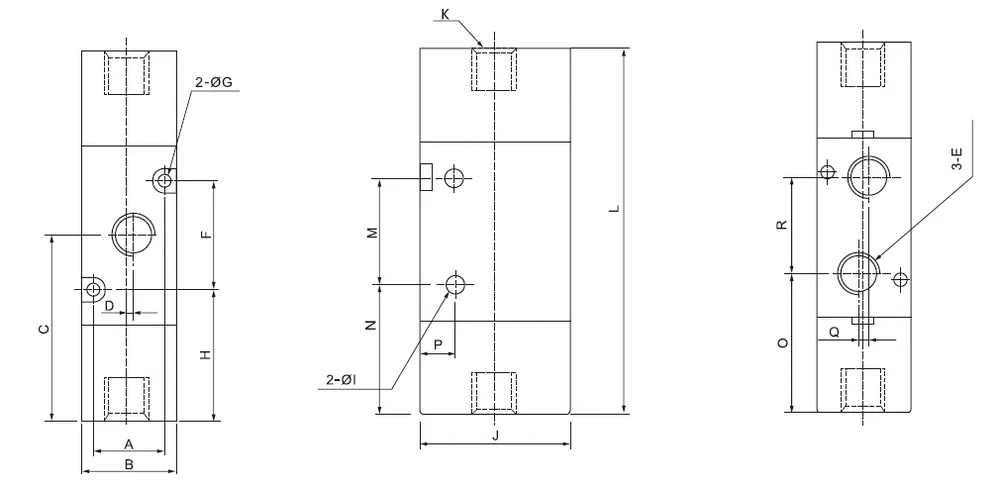

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R |
| 3A110-M5 | 13 | 18 | 22.7 | 0 | M5X0.8 | 19 | ø3.3 | 13.2 | ø3.1 | 27 | PT1/8 | 56.5 | 21 | 12.2 | 14.7 | 7.7 | 0 | 14.2 |
| 3A110-06 | 13 | 18 | 23.7 | 1 | PT1/8 | 19 | ø3.3 | 13.2 | ø3.1 | 27 | PT1/8 | 56.5 | 21 | 12.2 | 14.7 | 7.7 | 2 | 16 |
| 3A210-06 | 17 | 22 | 27.7 | 0 | PT1/8 | 30 | ø3.2 | 12.7 | ø4.2 | 35 | PT1/8 | 70 | 25 | 15.2 | 16.7 | 8.2 | 0 | 22 |
| 3A210-08 | 17 | 22 | 28.7 | 1.5 | PT1/4 | 30 | ø3.2 | 12.7 | ø4.2 | 35 | PT1/8 | 70 | 25 | 15.2 | 16.7 | 8.2 | 0 | 22.5 |
| 3A310-08 | 20 | 27 | 32.5 | 0 | PT1/4 | 35 | ø4.3 | 15 | ø4.3 | 40 | PT1/8 | 80.5 | 30 | 17.5 | 20.5 | 10.5 | 0 | 24 |
| 3A310-10 | 20 | 27 | 32.5 | 2 | PT3/8 | 35 | ø4.3 | 15 | ø4.3 | 40 | PT1/8 | 80.5 | 30 | 17.5 | 20.5 | 10.5 | 0 | 24 |
| 3A410-15 | 27 | 34 | 42 | 3 | PT1/2 | 48 | ø4.5 | 17.5 | ø4.5 | 50 | PT1/8 | 100 | 48 | 17.5 | 25 | 13 | 0 | 35 |

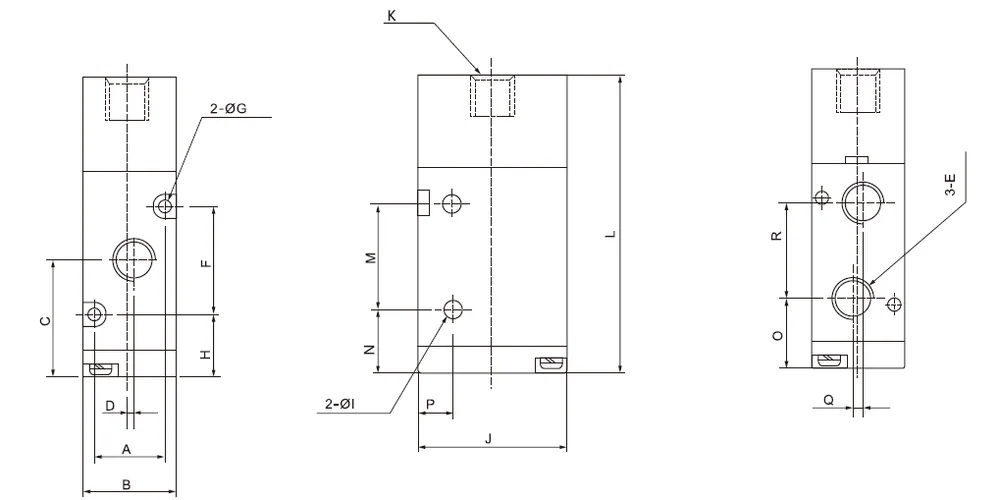

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R |
| 3A120-M5 | 13 | 18 | 34.5 | 0 | M5X0.8 | 19 | ø3.3 | 25 | ø3.1 | 27 | PT1/8 | 69 | 21 | 24 | 26.5 | 7.7 | 0 | 14.2 |
| 3A120-06 | 13 | 18 | 34.5 | 1 | PT1/8 | 19 | ø3.3 | 25 | ø3.1 | 27 | PT1/8 | 69 | 21 | 24 | 26.5 | 7.7 | 2 | 16 |
| 3A220-06 | 17 | 22 | 42 | 0 | PT1/8 | 30 | ø3.2 | 27 | ø4.2 | 35 | PT1/8 | 84 | 25 | 29.5 | 30.8 | 8.2 | 0 | 22 |
| 3A220-08 | 17 | 22 | 42 | 1.5 | PT1/4 | 30 | ø3.2 | 27 | ø4.2 | 35 | PT1/8 | 84 | 25 | 29.5 | 30.8 | 8.2 | 0 | 22.5 |
| 3A320-08 | 20 | 27 | 48 | 0 | PT1/4 | 35 | ø4.3 | 30.5 | ø4.3 | 40 | PT1/8 | 96 | 30 | 33 | 36 | 10.5 | 0 | 24 |
| 3A310-10 | 20 | 27 | 48 | 2 | PT3/8 | 35 | ø4.3 | 30.5 | ø4.3 | 40 | PT1/8 | 96 | 30 | 33 | 36 | 10.5 | 0 | 24 |
| 3A420-15 | 27 | 34 | 34.5 | 3 | PT1/2 | 48 | ø4.5 | ø4.5 | 50 | PT1/8 | 117 | 48 | 34.5 | 41 | 13 | 0 | 35 |
