MSUB Series Rotary Table: Basic Type/Vane Style is listed in the pneumatic cylinders section of the Betre catalogue under the Rotary Actuator series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

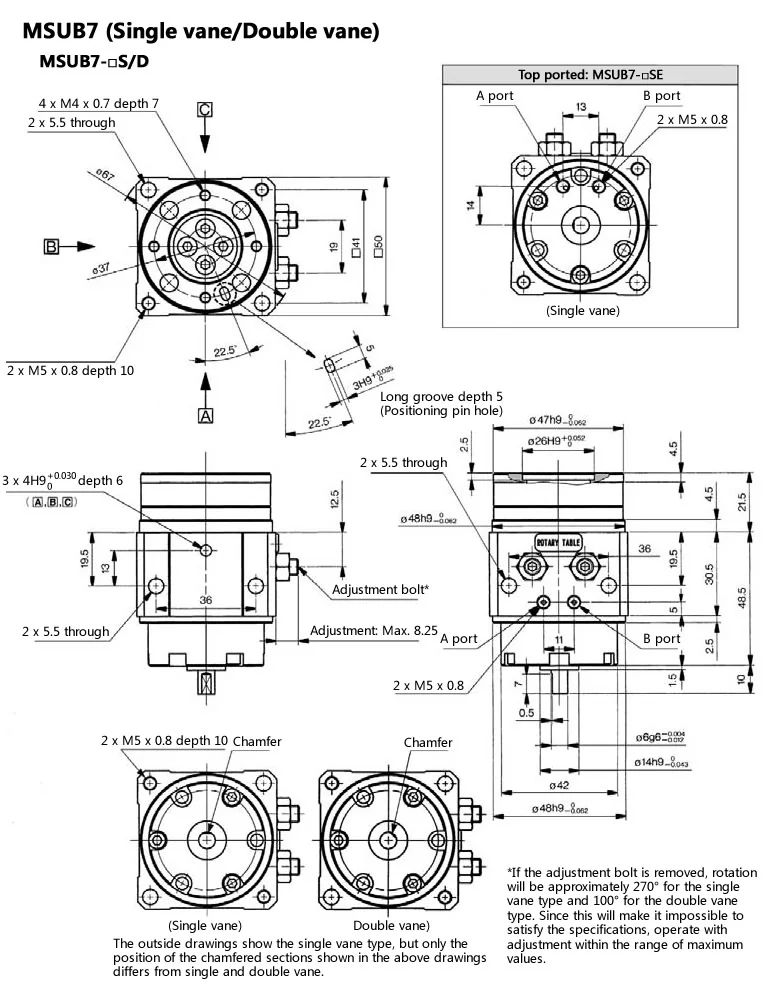

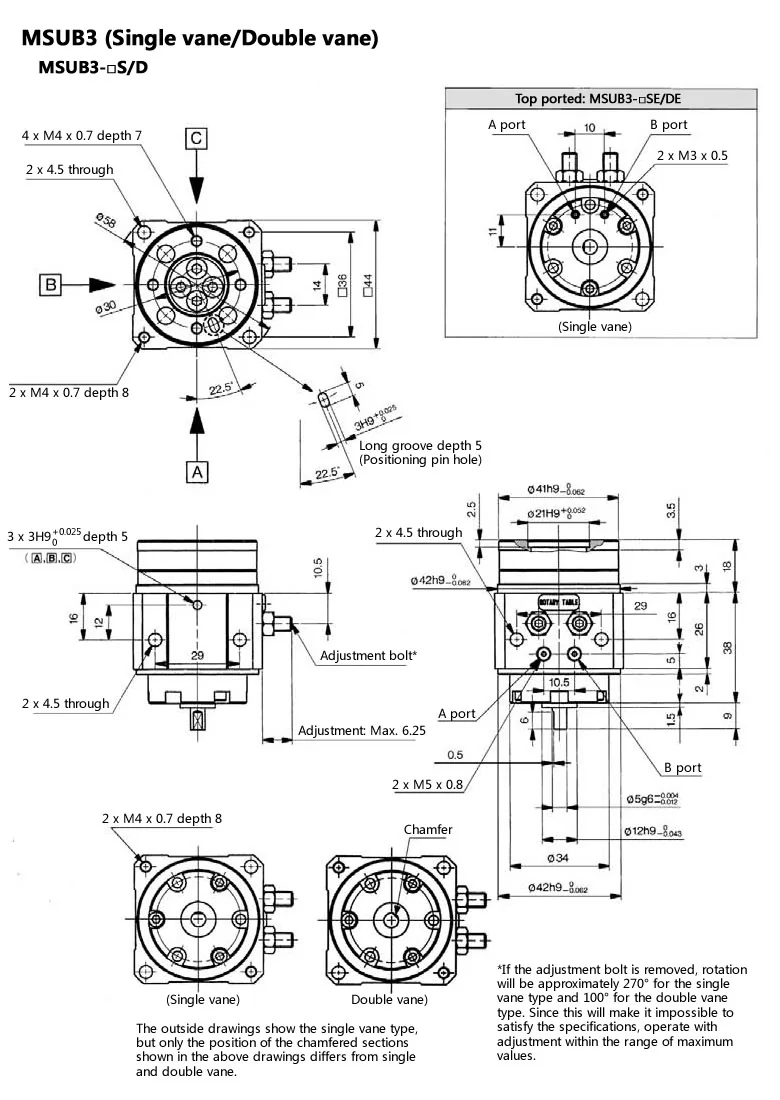

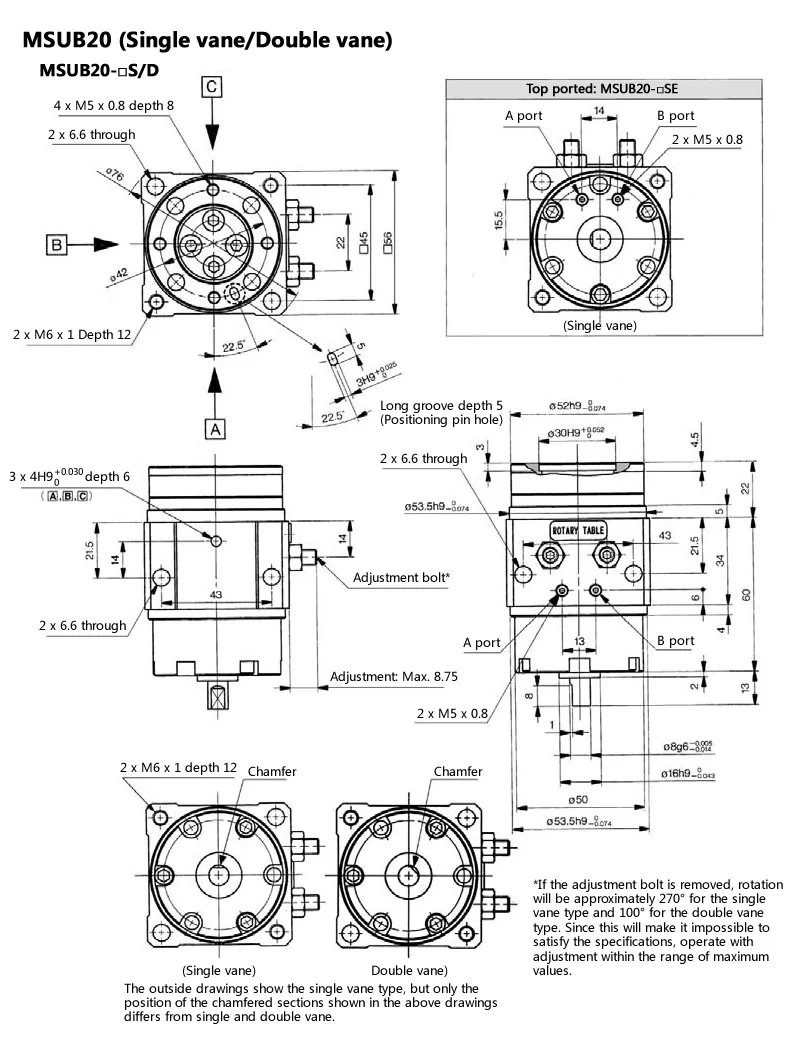

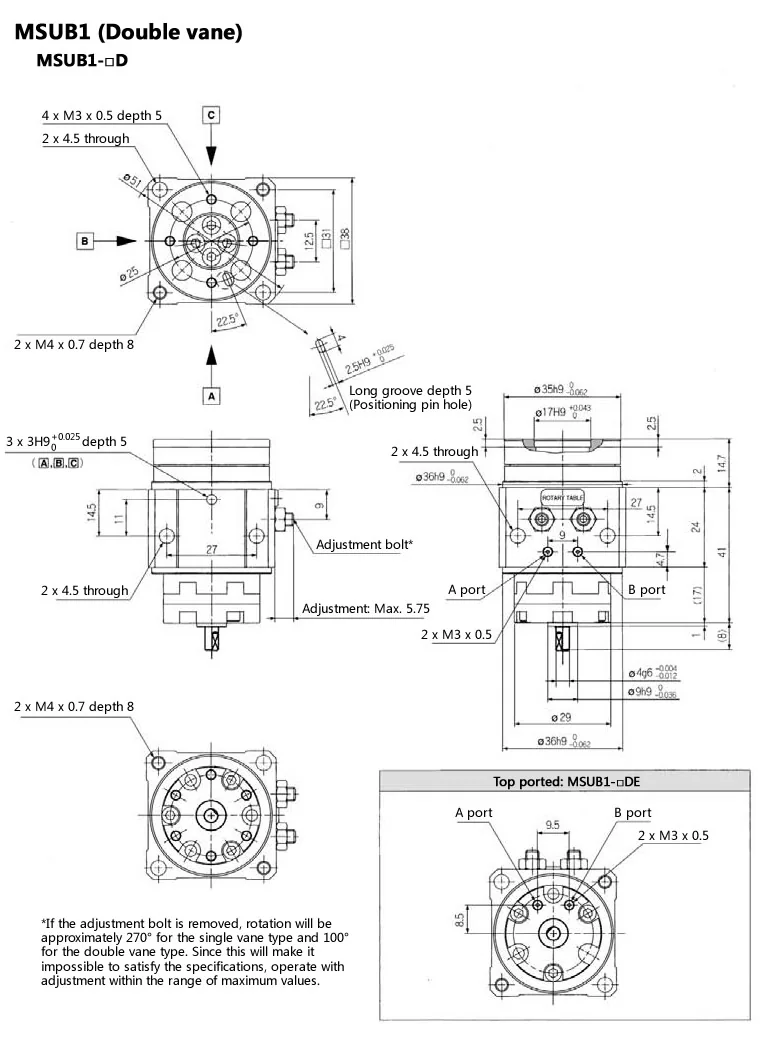

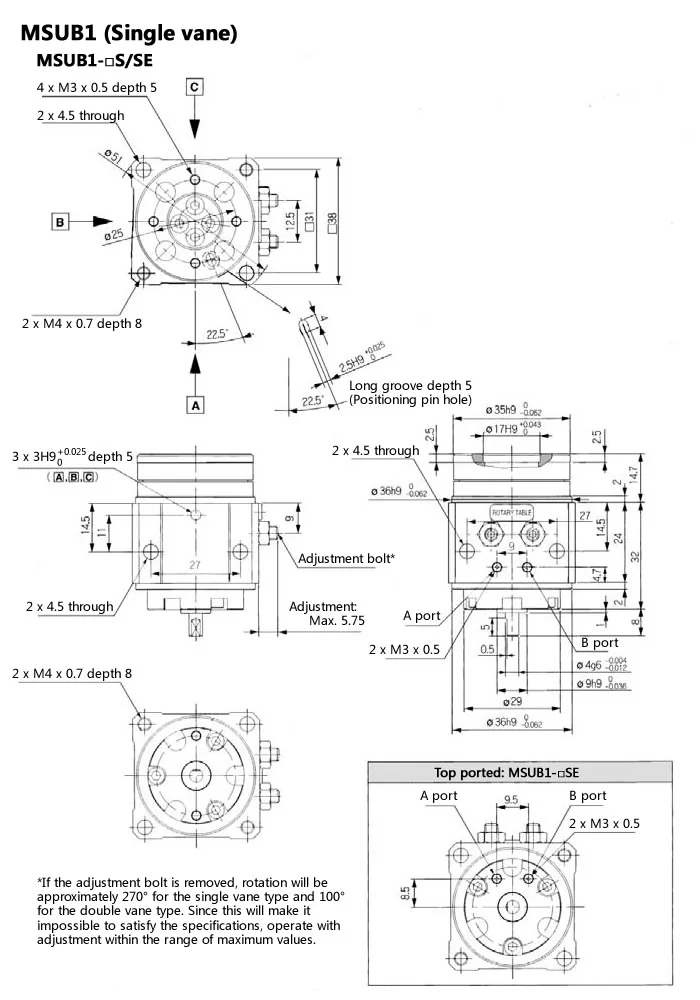

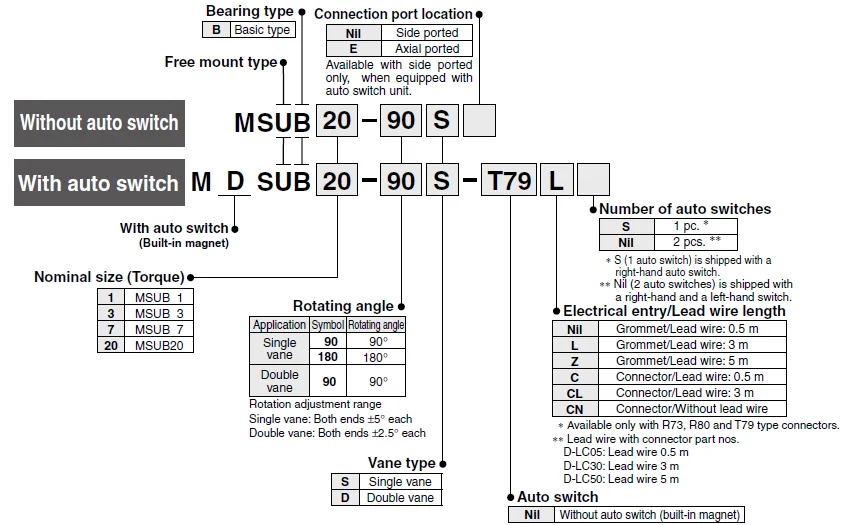

The tables and drawings below are reproduced from the Betre product catalogue for this model.

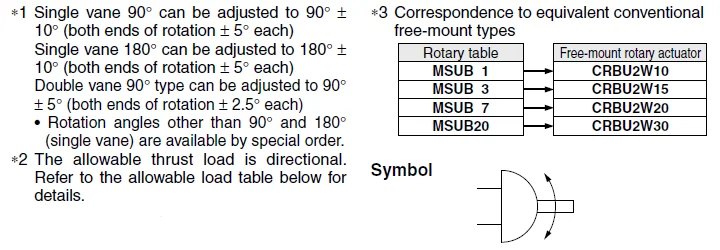

| Model ∗3 | MSUB1 | MSUB3 | MSUB7 | MSUB20 | |||||||||||
| Vane type | Single vane |
Double vane |
Single vane |
Double vane |
Single vane |
Double vane |
Single vane |
Double vane |
|||||||
| Rotating angle ∗1 | 90°±10° | 180°±10° | 90°±5° | 90°±10° | 180°±10° | 90°±5° | 90°±10° | 180°±10° | 90°±5° | 90°±10° | 180°±10° | 90°±5° | |||
| Fluid | Air (Non-lube) | ||||||||||||||
| Proof pressure (MPa) | 1.05 | 1.5 | |||||||||||||
| Ambient and fluid temperature | 5 to 60°C | ||||||||||||||
| Operating pressure range (MPa) | 0.2 to 0.7 | 0.15 to 0.7 | 0.15 to 1.0 | ||||||||||||
| Rotation time adjustment range (s/90°) | 0.07 to 0.3 (0.5 MPa) | ||||||||||||||
| Shaft load | Allowable radial load | 20 N | 40 N | 50 N | 60 N | ||||||||||
| Allowable thrust load ∗2 | 15 N | 30 N | 60 N | 80 N | |||||||||||
| 10 N | 15 N | 30 N | 40 N | ||||||||||||
| Allowable moment | 0.3 N·m | 0.7 N·m | 0.9 N·m | 2.9 N·m | |||||||||||
| Bearing | Bearing | ||||||||||||||
| Port location | Side ported or Top ported | ||||||||||||||
| Port size | Side ported | M3 x 0.5 | M5 x 0.8 | ||||||||||||
| Top ported | M3 x 0.5 | M5 x 0.8 | |||||||||||||
